Toyota 1HZ Repair Manual

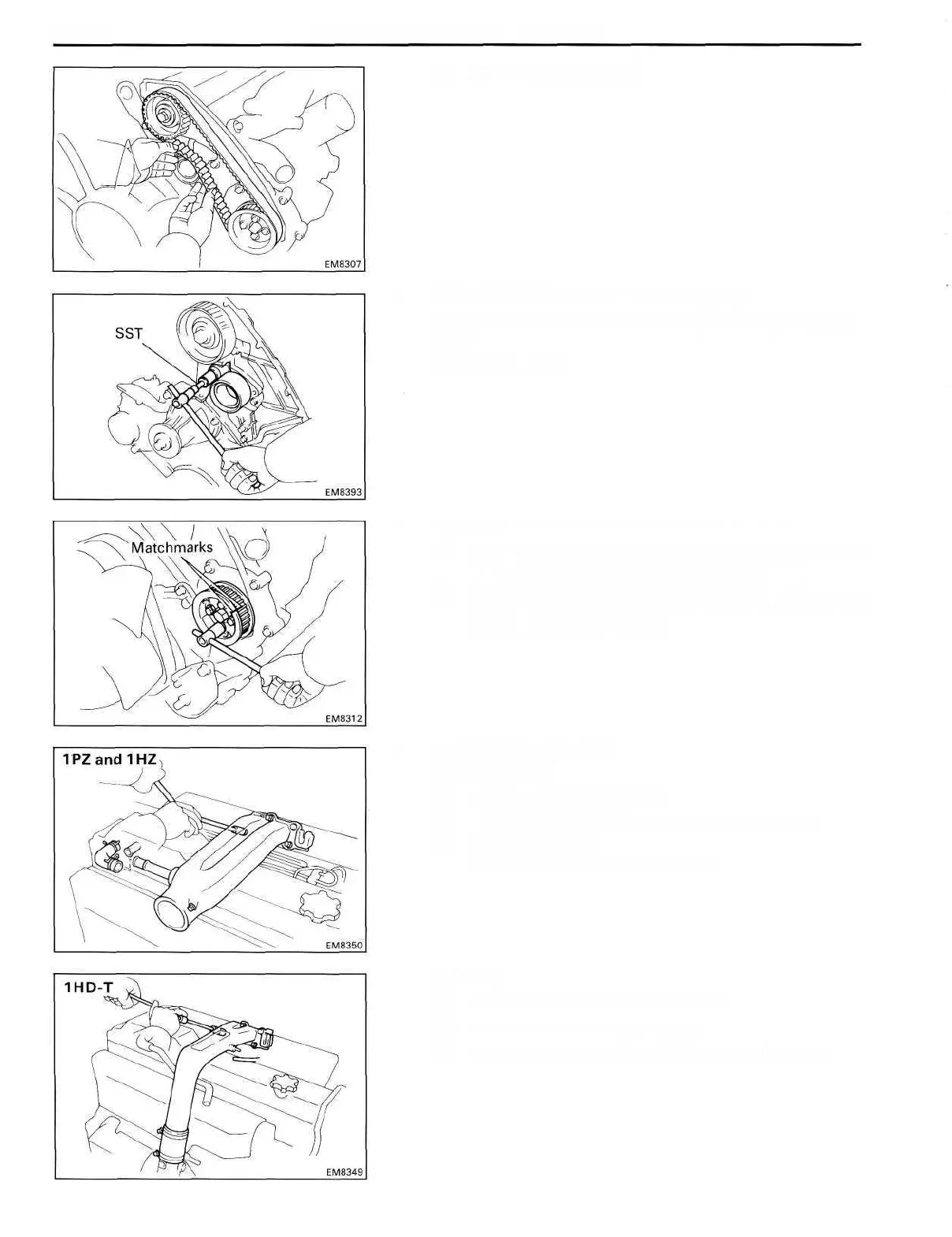

EM-34
ENGINE MECHANICAL - Timing Belt
(c) Remove the timing belt.
4. REMOVE TIMING BELT IDLER PULLEY
Using SST, remove the bolt, timing belt idler pulley and
plate.
SST 09923-00020
5. REMOVE NO.2 CAMSHAFT TIMING PULLEY
(a) Place matchmarks on the camshaft timing pulley No.2
flange and No.2 camshaft timing pulley.
(b) Remove the four bolts, camshaft timing pulley No.2
flange, No.2 camshaft timing pulley and camshaft
timing pulley No.1 flange.
6. REMOVE INTAKE PIPE
(IPZancMHZ)
(a) Disconnect the PCV hose.
(b) Remove the four bolts, intake pipe and gasket.
(c) (1HZ (Eourope))
Remove the intake pipe insulator.
(1HD-T)
(a) Disconnect the turbo vacuum hose.
(b) Loosen the air hose clamp bolt.
(c) Remove the three bolts, intake pipe and gasket.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
