Toyota 1HZ Repair Manual

CH-18
CHARGING SYSTEM - Alternator

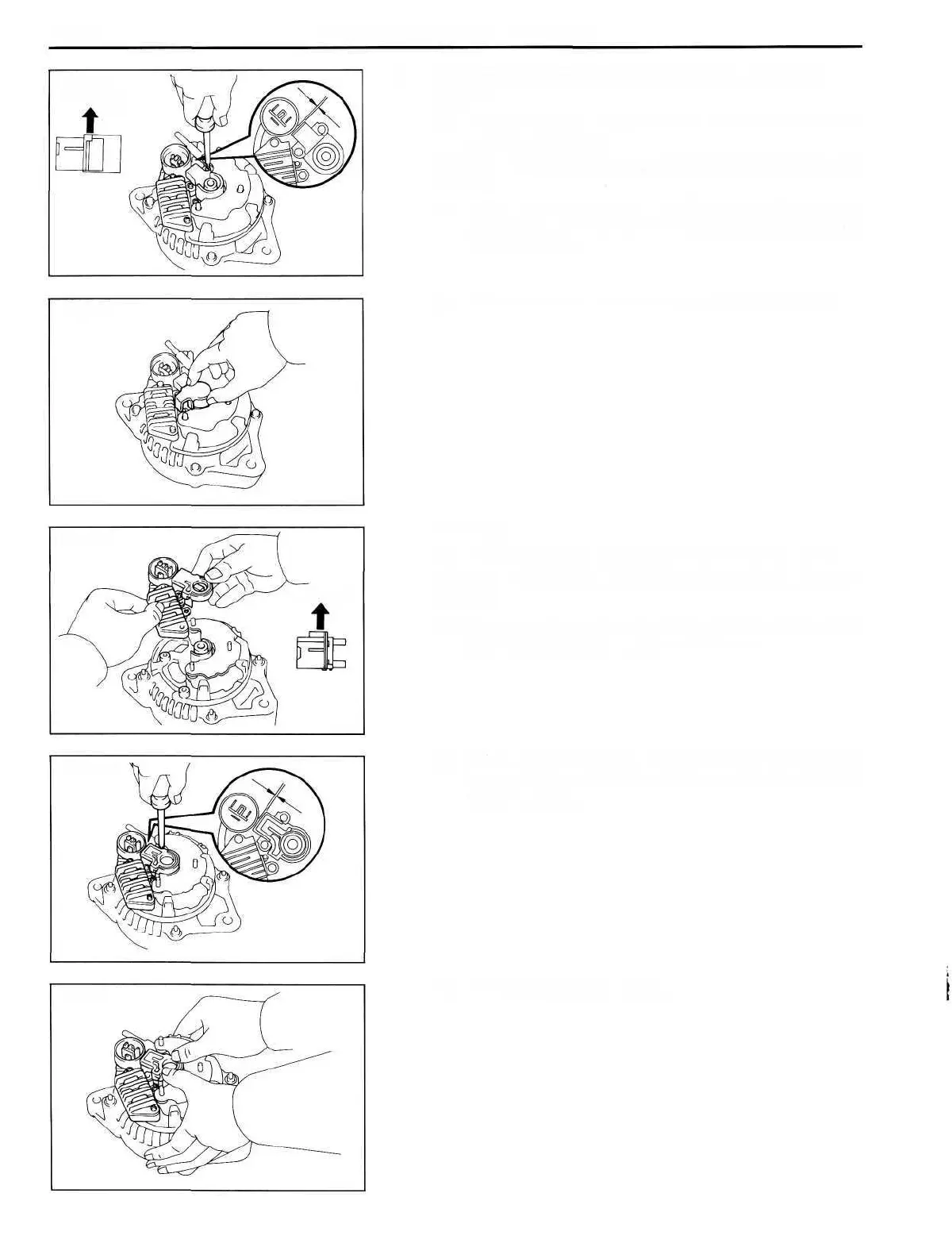

5. INSTALL IC REGULATOR AND BRUSH HOLDER
(Type A)
(a) Place on the IC regulator and brush holder on the
rectifier end frame.
NOTICE: Be careful about the holder installation di-
rection.
(b) Install the five screws until there is a clearance of
approx. 1.1 mm (0.043 in.) between the brush holder
and connector.
(c) Place the brush holder cover on the brush holder.
(Type B)
(a) Install the brush holder cover to the brush holder.
NOTICE: Be careful about the holder installation di-
rection.
(b) Place the IC regulator together with the brush holder
horizontally on the rectifier end frame.
(c) Install the five screws until there is a clearance of
approx. 1.1 mm (0.043 in.) between the brush holder
and connector.
(d) Fit the brush holder cover.
Type A
Upward
CH0877
Type A
CH0869
Type B
Upward
CH0878
Type B
CH0881
Type B
CH0875

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
