EM-81
ENGINE MECHANICAL - Cylinder Head

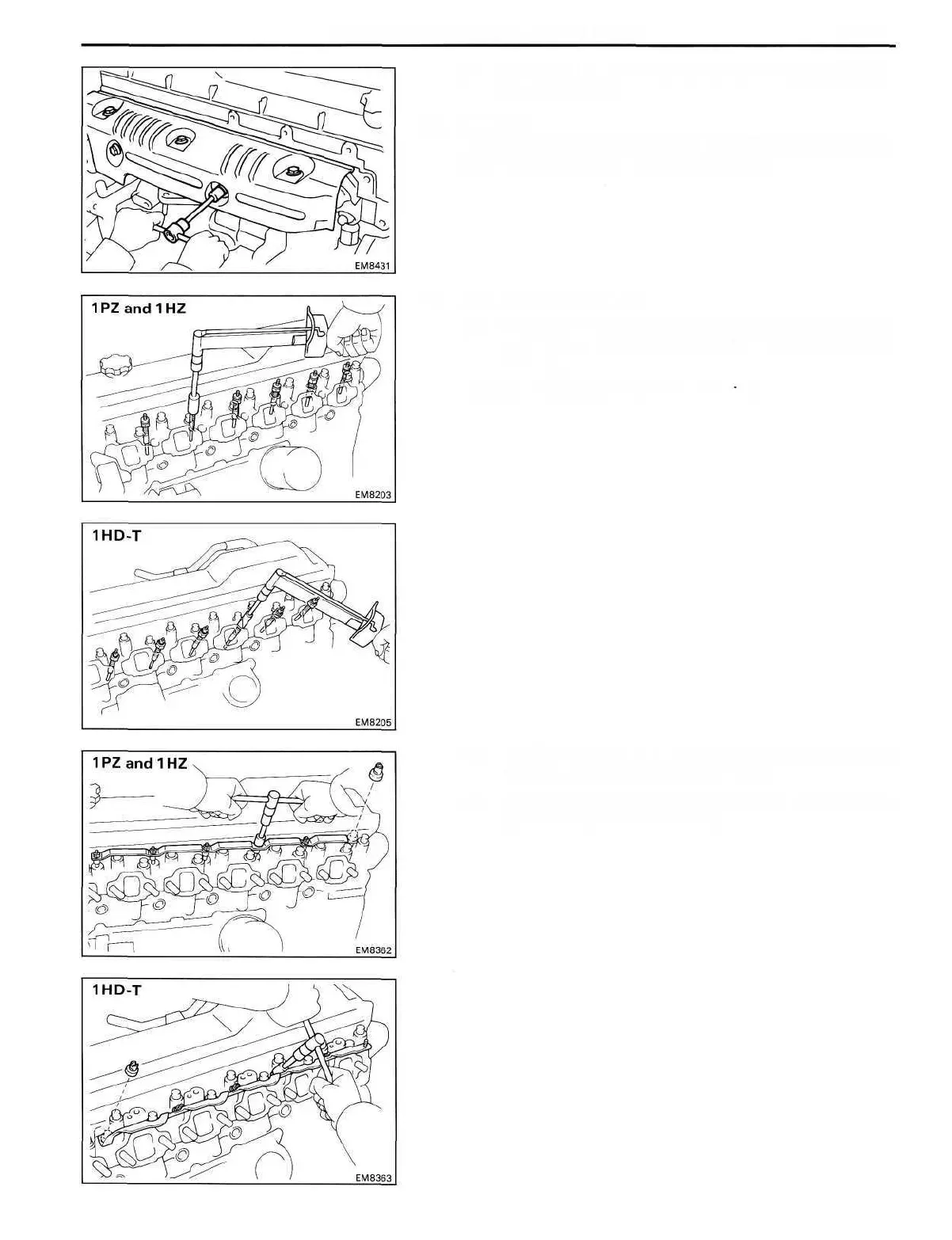

(c) Install the heat insulator with the four bolts (1PZ) or
five bolts (1HZ).
10. (1HD-T)
INSTALL TURBOCHARGER AND EXHAUST MANIFOLD
(See steps 4 to 10 on pages TC-13 to 15)
11. INSTALL GLOW PLUG
(a) Using a 12 mm deep socket wrench, install the five
glow plugs (1PZ) or six glow plugs (1HZ and
1HD-T).
Torque: 130 kg-cm (9 ft-lb, 13 N m)
(b) Install the glow plug connector with the five nuts
(1 PZ) or six nuts (1 HZ and 1 HD-T).
(c) Install the five screw grommets (1 PZ) and six screw
grommets (1 HZ and 1 HD-T).

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
