Toyota 1HZ Repair Manual

FU-92 FUEL SYSTEM - Injection Pump

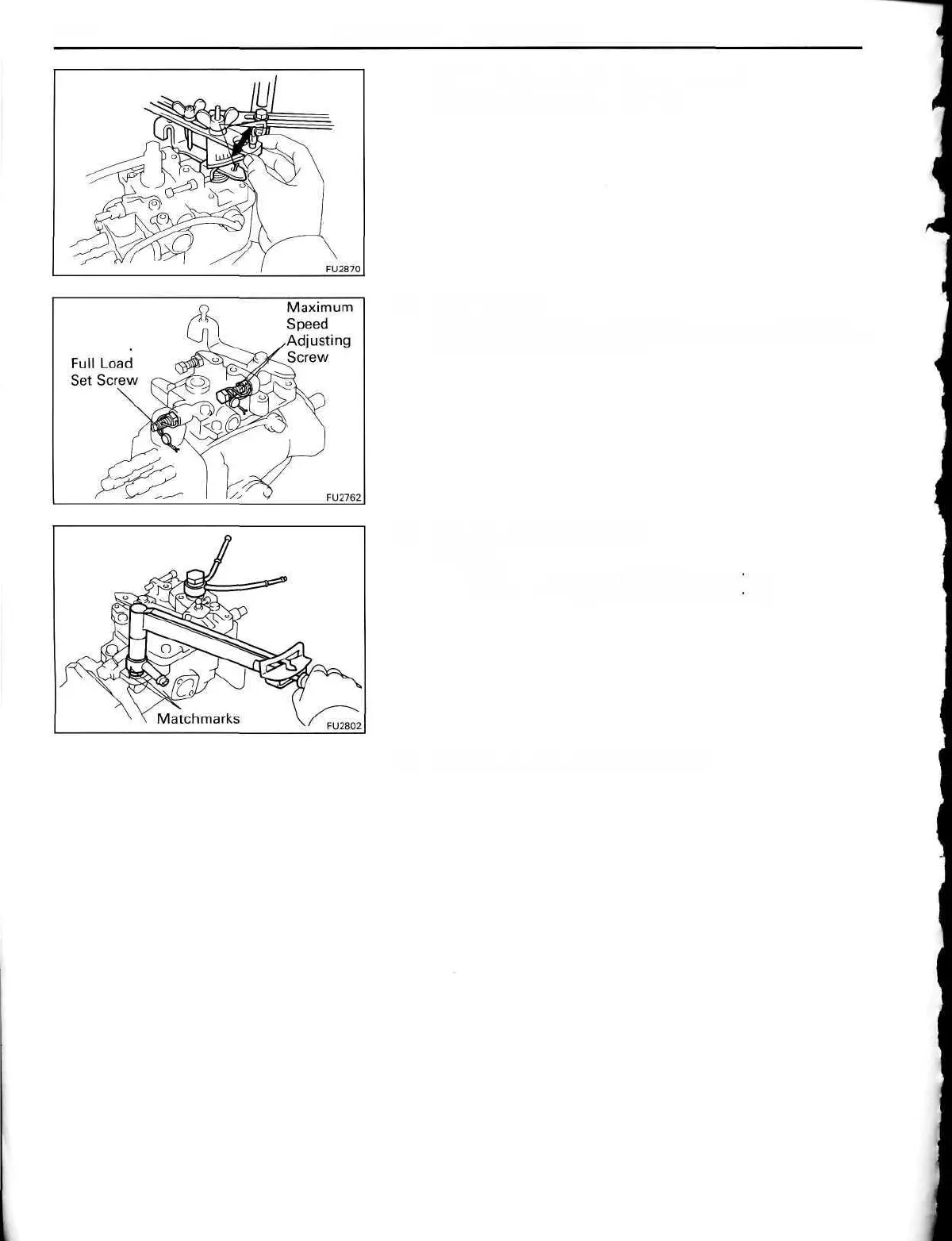

(b) Check the adjusting lever movement.
Adjusting lever angle: 38-48°
22. SEAL PARTS
Seal the maximum speed adjusting screw and full load set
screws with new lead seals.
23. INSTALL TWO FUEL PIPES
Torque:
Inlet 250 kg-cm (18 ft-lb, 25 Nm)
Outlet 225 kg-cm (16 ft-lb, 22 Nm)
24. INSTALL INJECTION PUMP STAY

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
