Toyota 1HZ Repair Manual

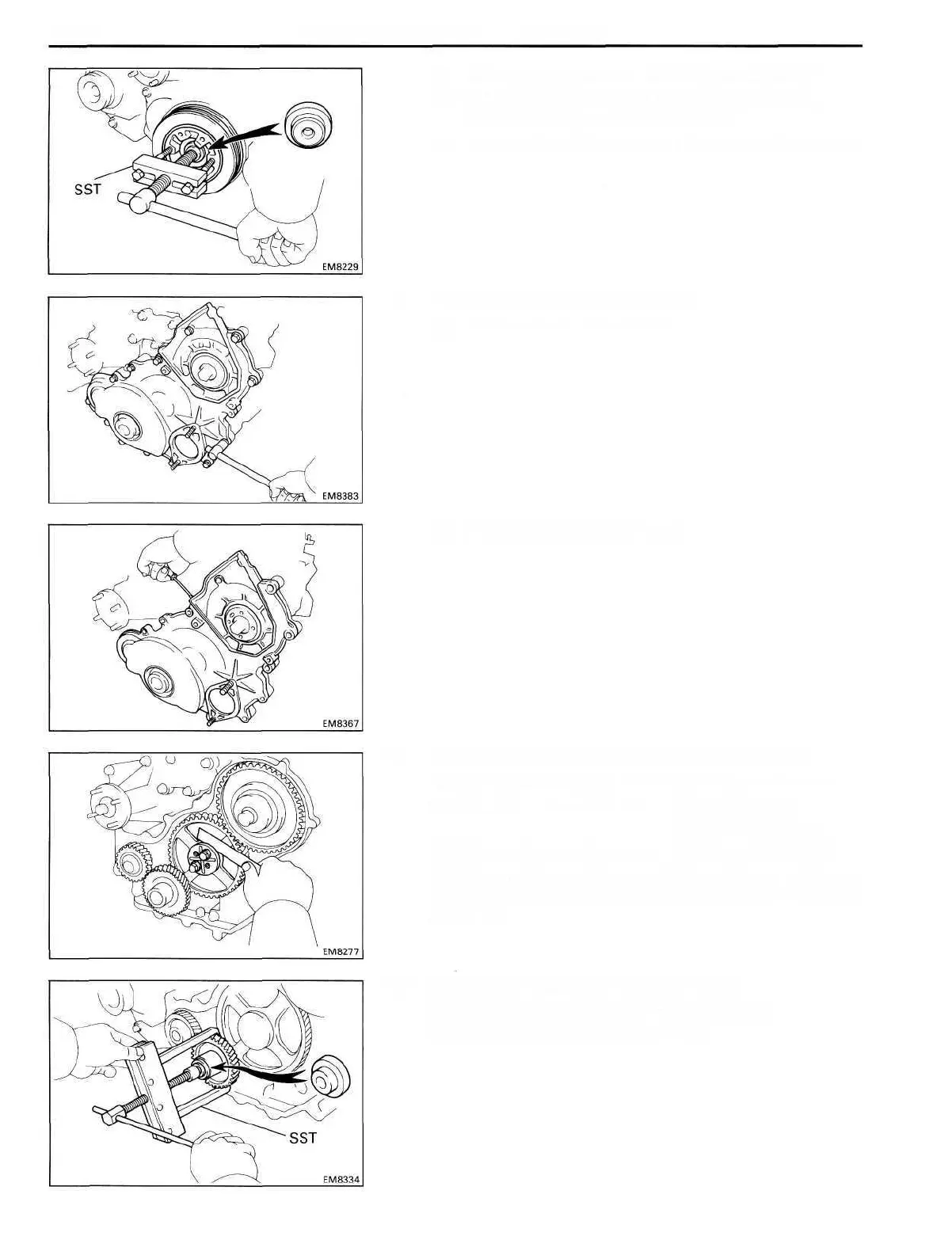

EM-44
ENGINE MECHANICAL - Timing Gears
(b) Using SST, remove the No.1 crankshaft pulley.
SST 09213-60017 (09213-00020, 09213-00030,
09213-00060) and 09950-20017
(c) Remove the O-ring from the No.1 crankshaft pulley.
8. REMOVE TIMING GEAR COVER
(a) Remove the fourteen bolts.
(b) Pry out the timing gear cover.
9. CHECK THRUST CLEARANCE OF IDLER GEAR
Using a thickness gauge, measure the thrust clearance.
Standard thrust clearance: 0.05-0.15 mm
(0.0020-0.059 in.)
Maximum thrust clearance: 0.30 mm (0.0118 in.)
If the thrust clearance is greater than maximum, replace the
thrust plate. If necessary, replace the idler gear and/or idler
gear shaft.
10. REMOVE PUMP DRIVE SHAFT GEAR
Using SST, remove the pump drive shaft gear.
SST 09213-36020 and 09950-20017

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
