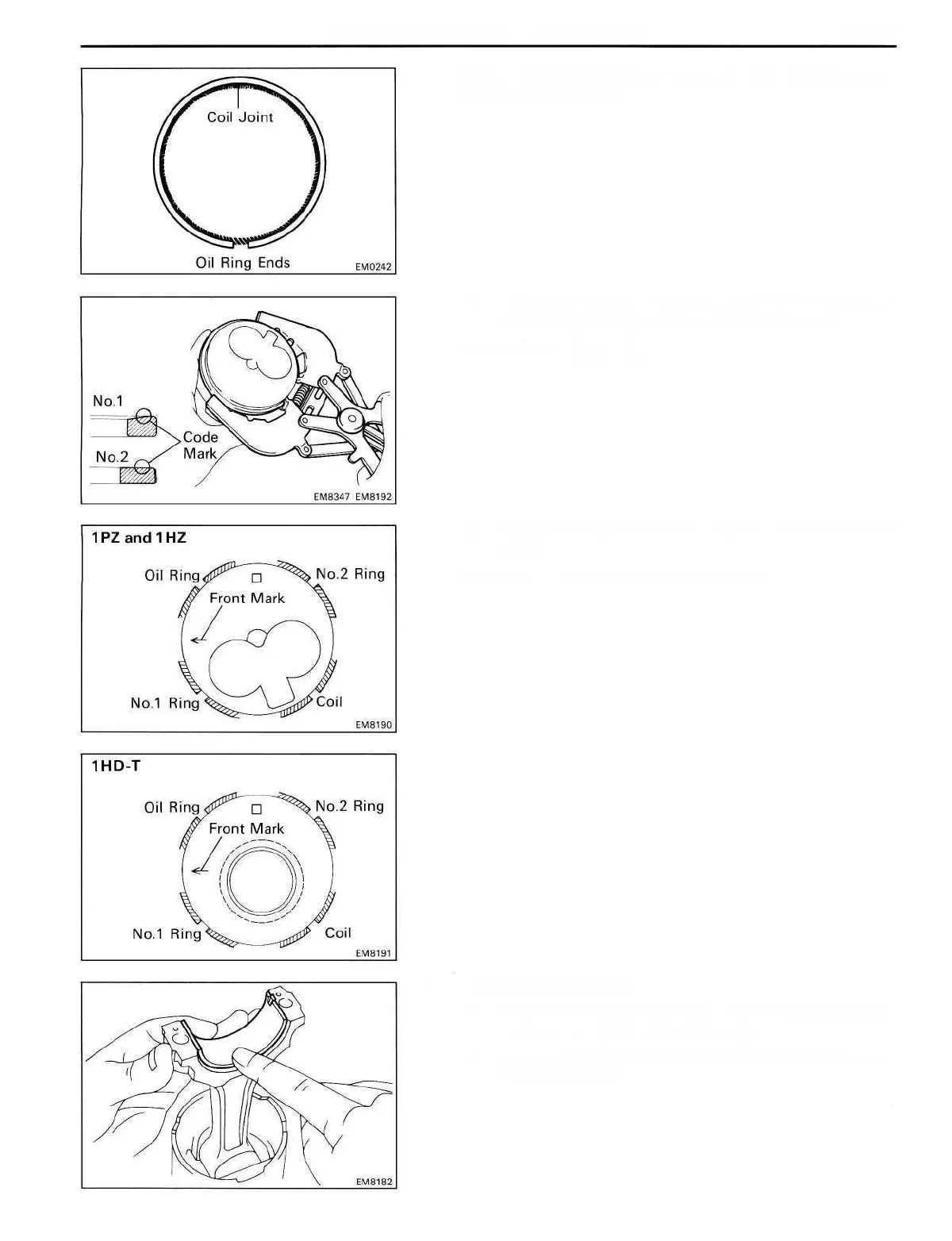

EM-107
ENGINE MECHANICAL - Cylinder Block
HINT: Face the end gap of the oil ring in the opposite
direction of coil joint.
(c) Using a piston ring expander, install the two compres-
sion rings with the code mark facing upward.
Code mark: No.1 1T
No.2 2T
(d) Position the piston rings so that the ring ends are as
shown.
NOTICE: Do not align the ring ends.
3. INSTALL BEARINGS
(a) Align the bearing claw with the claw groove of the
connecting rod or connecting cap.
(b) Install the bearings in the connecting rod and con-
necting rod cap.
