FU-12 FUEL SYSTEM - Injection Nozzles (1 PZ and 1 HZ)

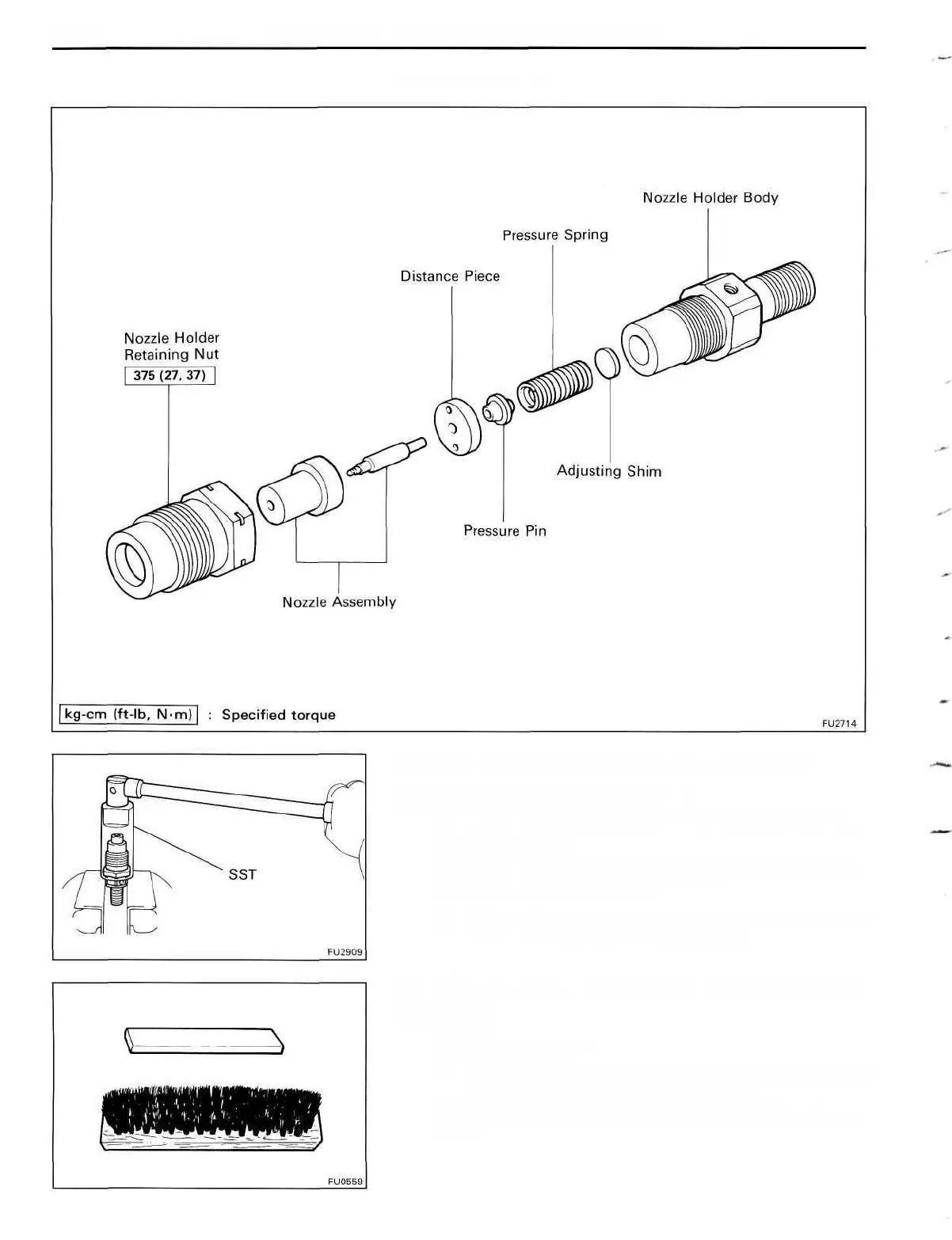

COMPONENTS
DISASSEMBLY OF INJECTION NOZZLES
DISASSEMBLE INJECTION NOZZLES
(a) Using SST, remove the nozzle holder retaining nut.
SST 09268-64010
NOTICE: When disassembling the nozzle, be careful
not to drop the inner parts.
(b) Remove the pressure spring, shim, pressure pin, dis-
tance piece and the nozzle assembly.
CLEANING AND INSPECTION OF INJECTION
NOZZLES
1. NOZZLE CLEANING
(a) To wash the nozzles. Use a wooden stick and brass
brush. Wash them in clean diesel fuel.
HINT: Do not touch the nozzle mating surfaces with your
fingers.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
