FU-44 FUEL SYSTEM Injection Pump

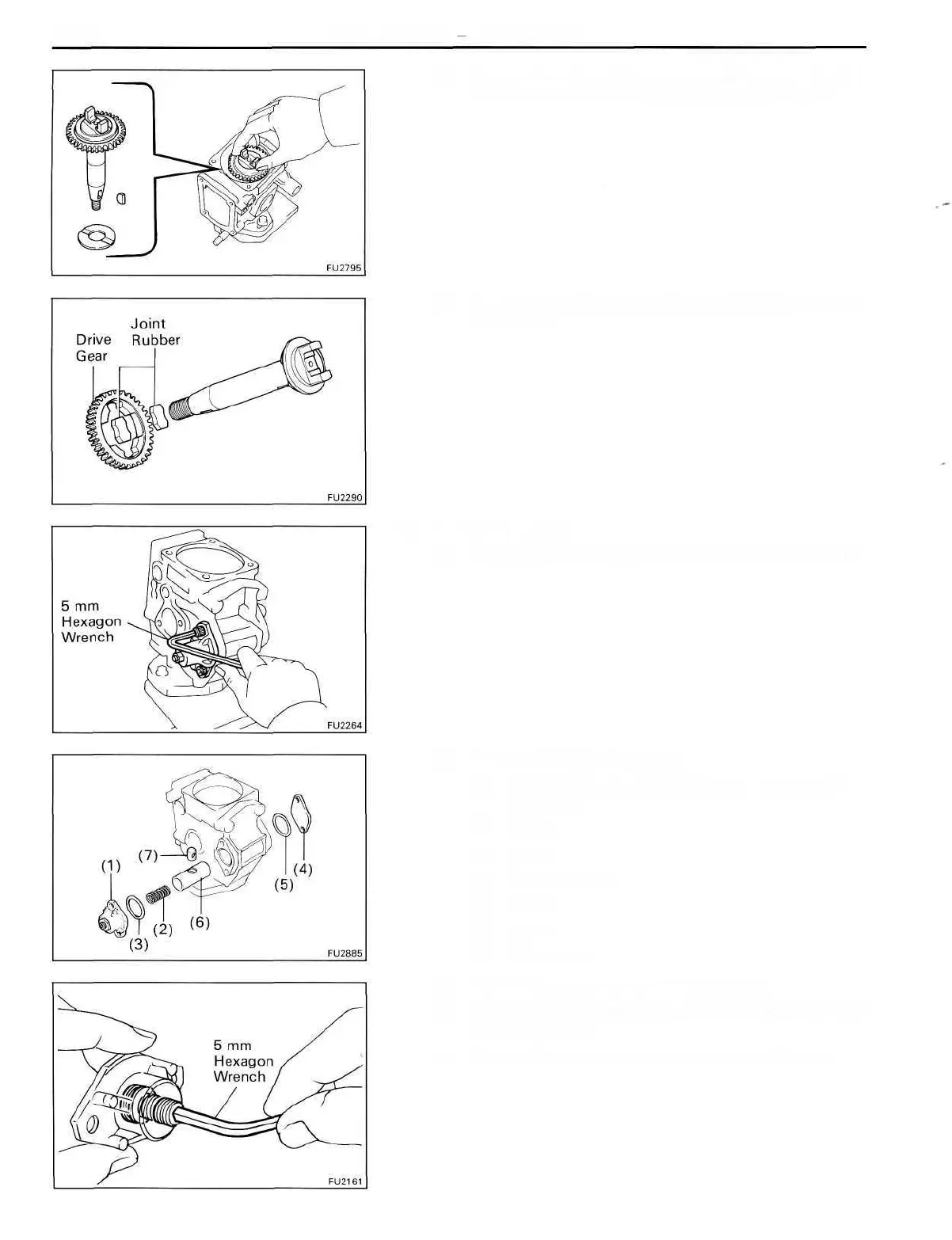

(d) Remove the drive shaft, governor drive gear, two joint
rubbers assembly, set key and drive shaft washer.
(e) Remove the drive gear and two joint rubbers from the
drive shaft.
27. REMOVE TIMER
(a) Using a 5 mm hexagon wrench, remove the four bolts.
(b) Remove the following parts:
(1) LH timer cover, timer adjusting screw and nut
assembly
(2) Spring
(3) O-ring
(4) RH timer cover
(5) O-ring
(6) Piston
(7) Sub-piston
(c) Remove the nut from the LH timer cover.
(d) Using a 5 mm hexagon wrench, remove the timer
adjusting screw.
(e) Remove the O-ring from the timer adjusting ring.
