3.3 Renewing valve stem seals with cylinder head installed

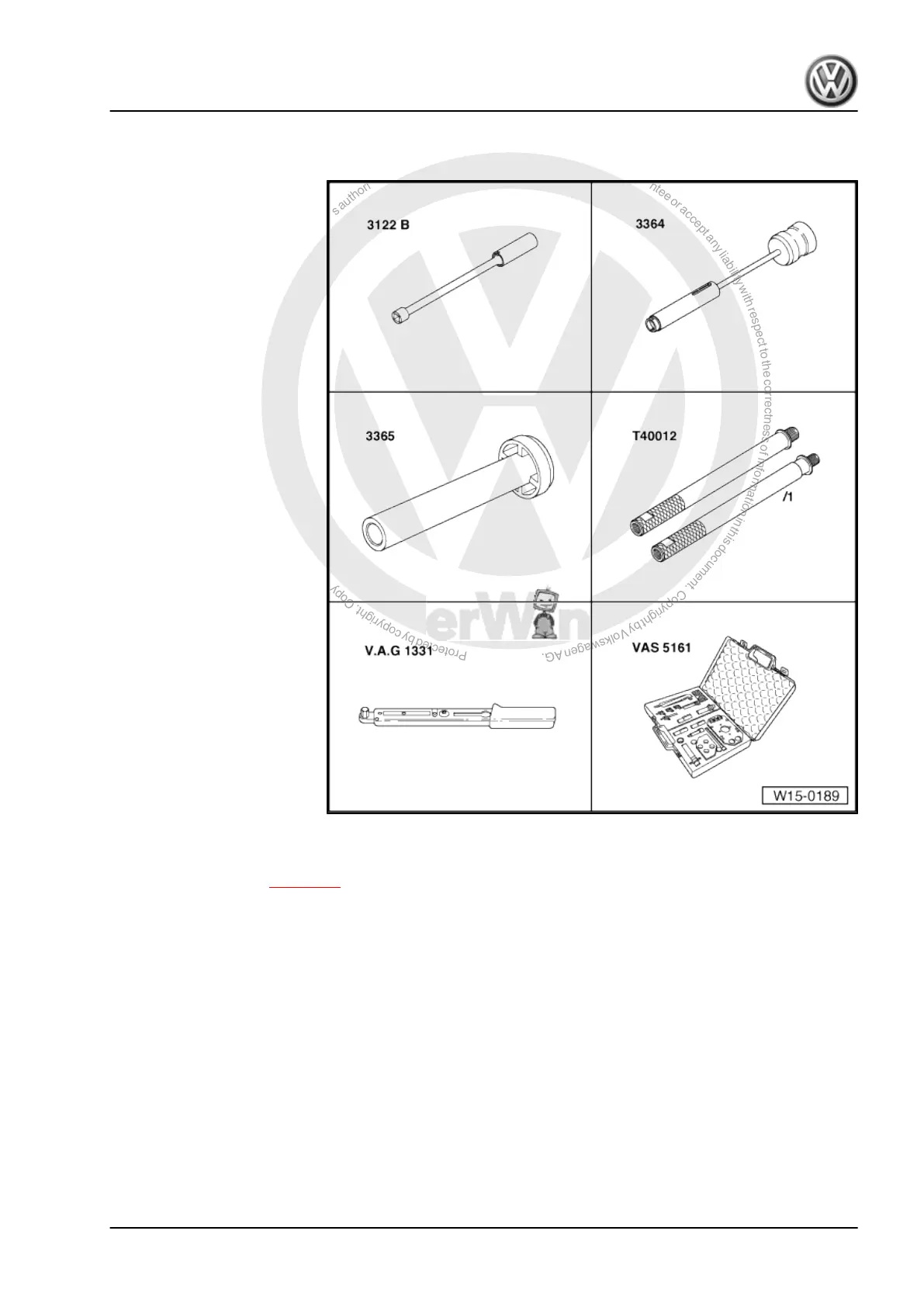

Special tools and workshop
equipment required
♦ Spark plug socket and ex‐
tension -3122 B-
♦ Valve stem seal puller
-3364-
♦ Valve stem seal fitting tool
-3365-
♦ Adapter -T40012-
♦ Torque wrench -V.A.G
1331-
♦ Dismantling and assem‐
bling device for valve cot‐
ters -VAS 5161-
♦ Guide plate for 2.0 l and 3.0
l FSI engine -VAS
5161/19B-
Removing valve stem oil seals
– Remove camshafts ⇒ page 94 .
– Mark allocation of roller rocker fingers and hydraulic compen‐
sation elements for reinstallation.
– Remove roller rocker fingers together with hydraulic compen‐
sation elements and place down on a clean surface.
– Unscrew spark plugs using spark plug socket and extension
-3122 B- .
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
3. Valve gear 105
