4 Parts of cooling system, body side

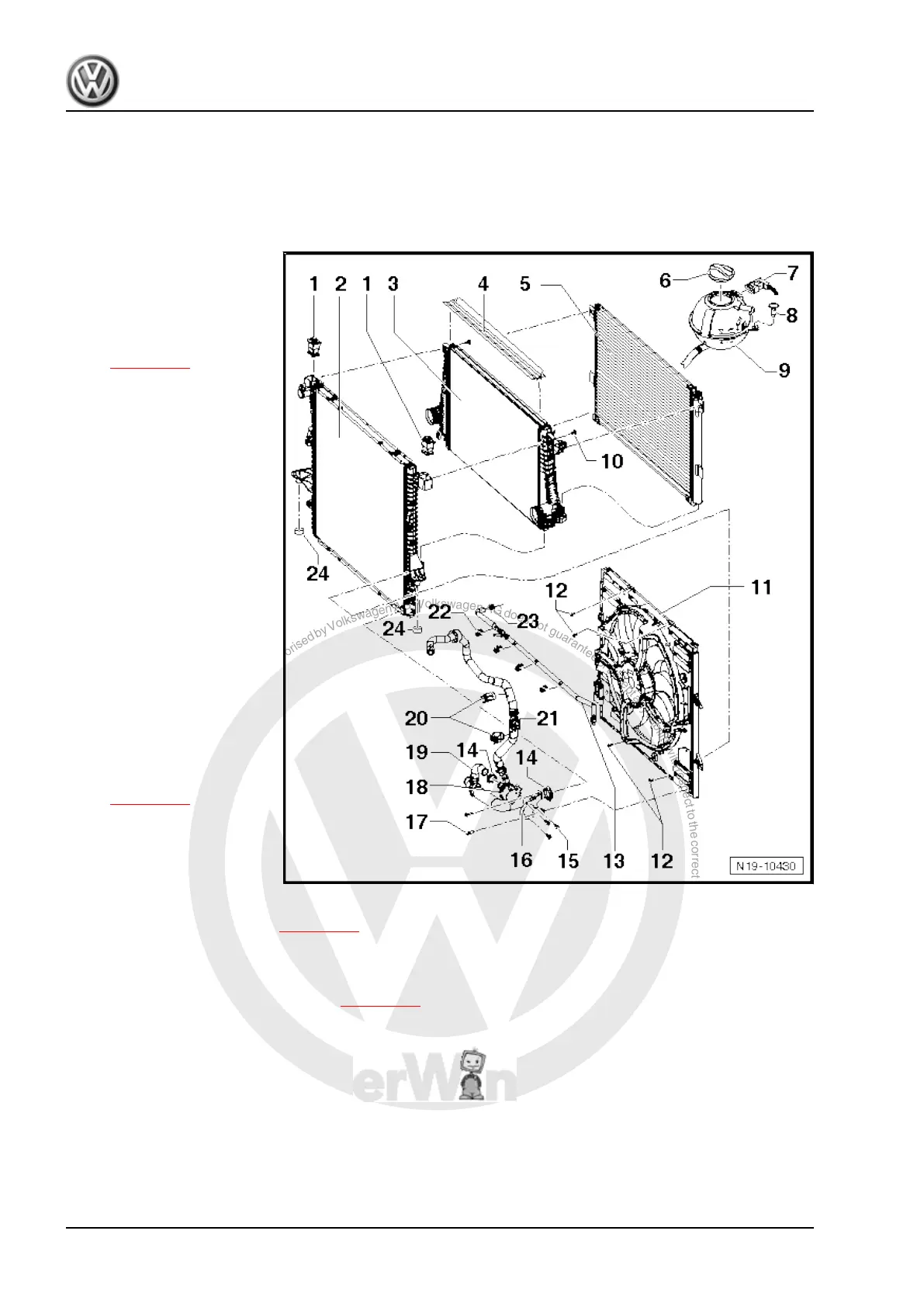

4.1 Assembly overview - parts of cooling system, body side
1 - Radiator upper mounting
2 - Radiator
❑ Renew coolant after re‐
placing.
❑ Removing and installing
⇒ page 155 .
3 - Charge air cooler
4 - Upper cowling
5 - Condenser (only for vehi‐
cles with air conditioning sys‐
tem)
6 - Cap
❑ Check using cooling
system tester -V.A.G
1274- and adapter for
cooling system tester -
V.A.G 1274/9- .
❑ Test pressure 1.4…1.6
bar
7 - Connector
8 - Bolt, 5 Nm
9 - Expansion tank
❑ Checking cooling sys‐
tem for leaks with cool‐
ing system tester -
V.A.G 1274- and adapt‐
er -V.A.G 1274/8-
⇒ page 136 .
❑ With coolant tempera‐
ture display sender -
G32- .
10 - Bolt, 5 Nm
11 - Cowling with radiator fan -V7-
❑ Removing and installing ⇒ page 154 .
12 - Bolt, 4 Nm
13 - Breather line
❑ Coolant hose schematic diagram ⇒ page 139 .
❑ Secured to radiator at top.
14 - Spring-type clip
❑ Hose clip pliers -VAS 6340- or hose clip pliers -VAS 6362- are recommended for installation of spring-
type clips.
15 - Bolt, 1.2 Nm
16 - Retainer
❑ For continued coolant circulation pump -V51-
