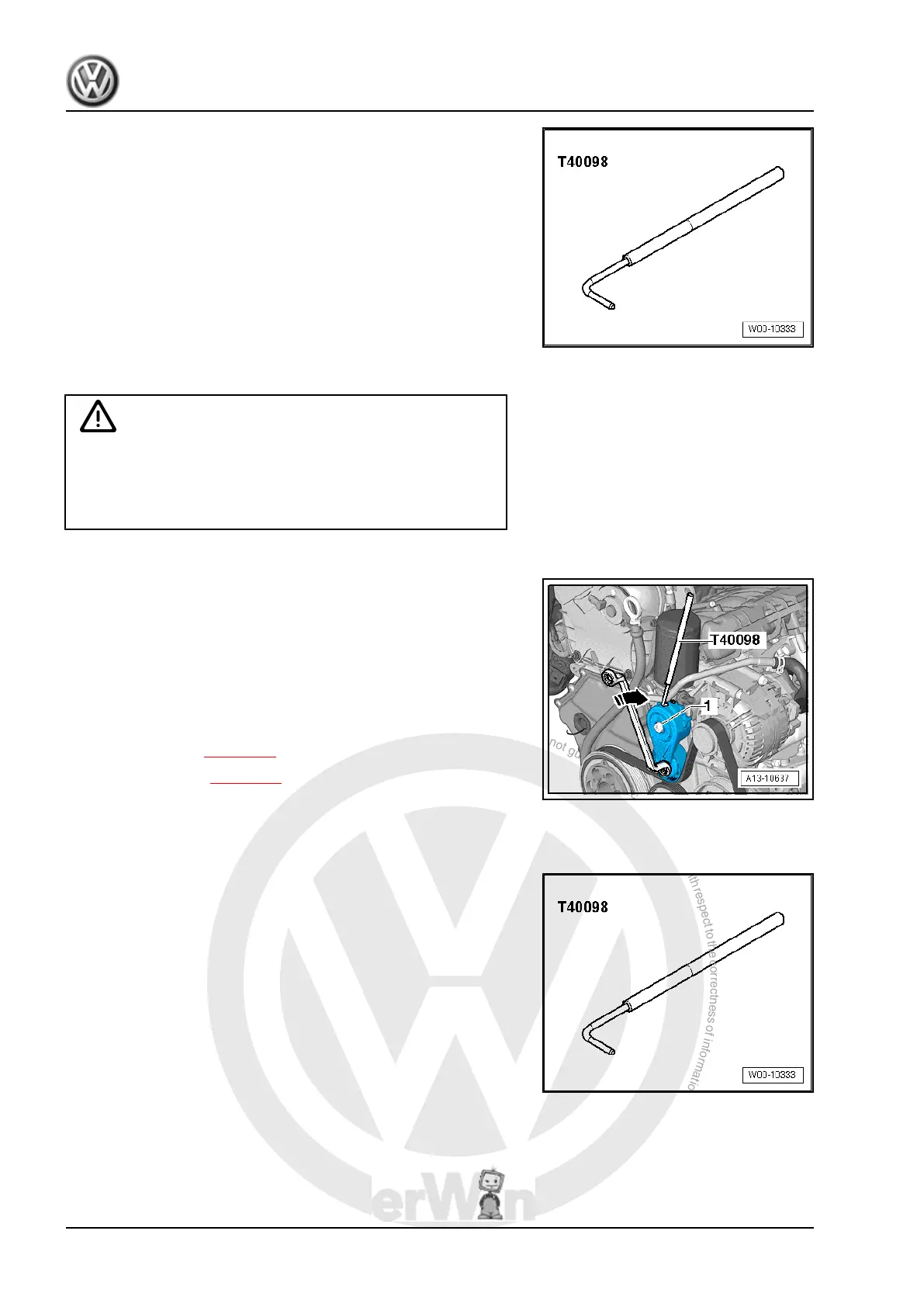

♦ Locking tool -T40098-
Removing
Caution
If a used belt runs in the opposite direction when it is refitted,
this can cause breakage.
♦ Before removing, mark direction of rotation of poly V-belt
with chalk or felt-tipped pen for re-installation.
– To slacken poly V-belt turn tensioner in direction of -arrow-.
– Lock tensioner with locking tool -T40098- .
– Remove poly V-belt from tensioner.
– Remove bolt -1- and take off tensioner for poly V-belt from
bracket for ancillaries.
Installing
Installation is carried out in the reverse order. When installing,
note the following:
• Specified torque ⇒ page 19 .
– Install poly V-belt ⇒ page 22 .
1.3 Removing and installing poly V-belt
Special tools and workshop equipment required
♦ Locking tool -T40098-
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
22 Rep. gr.13 - Crankshaft group
