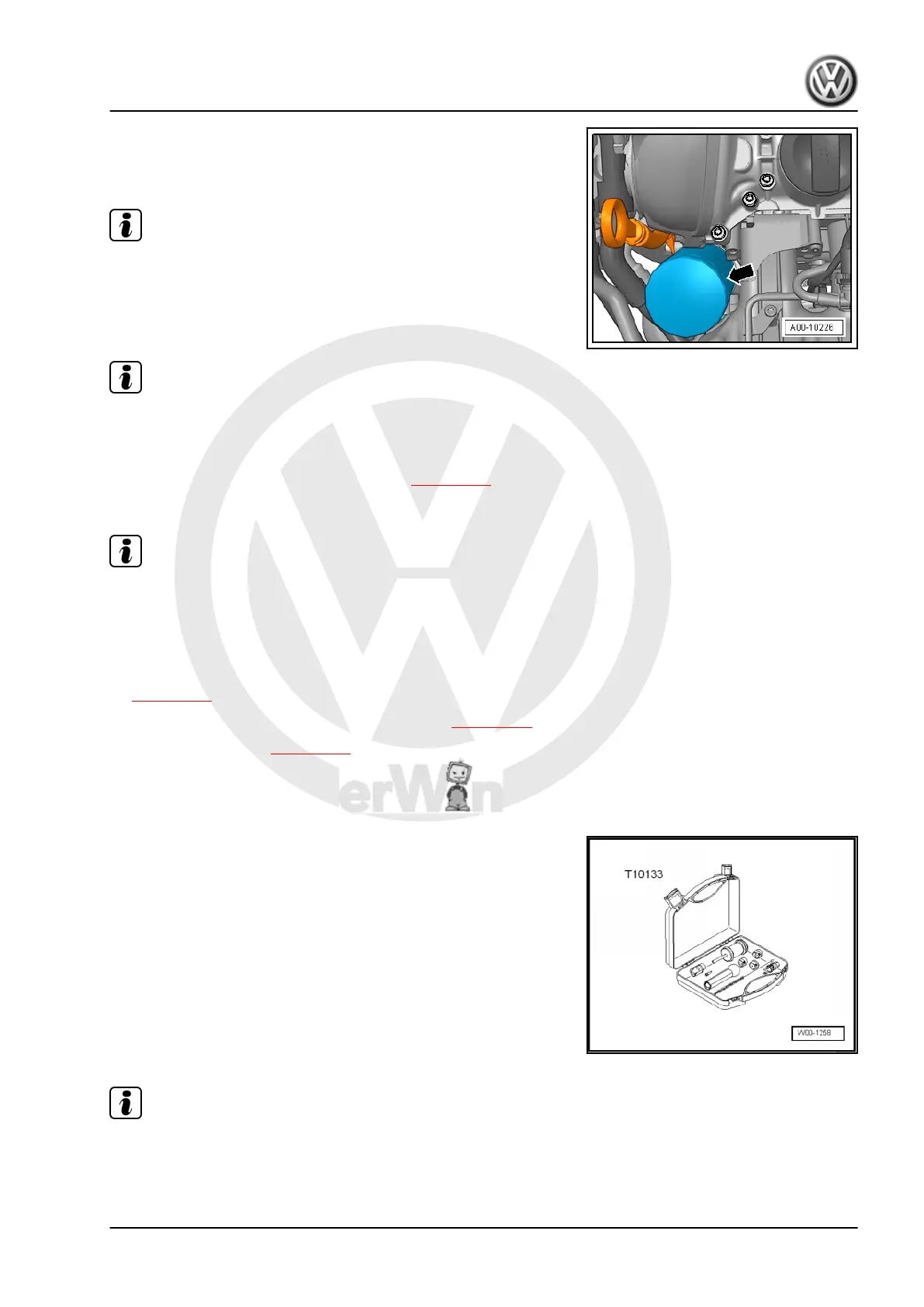

– Release oil filter with Hazet securing strap -2171-1- or with oil
filter tool -3417- and remove oil filter.
– Unscrew bolts from intake manifold using socket -T10347- .
Note
To unscrew inaccessible bolts without socket -T10347- , throttle
valve module -J338- has to be removed.
– Carefully pull intake manifold with fuel rail slightly away from
cylinder head.
Note
♦
Injectors can remain in fuel rail.
♦
Seal intake ports with a clean cloth.
– Disconnect intake manifold from fuel rail ⇒ page 213 .
Installing
Note
Ensure injectors are installed correctly.
– Fit intake manifold onto studs (left and right) on cylinder head.
– Install in reverse order.
• Specified torque: assembly overview - intake manifold
⇒ page 211 .
• Specified torque: assembly overview - fuel rail ⇒ page 212 .
– Check coolant level ⇒ page 133 .
2.9 Removing and installing injectors
Special tools and workshop equipment required
♦ Tool case with puller -T10133-
Note
Puller tool T10133/2 has been modified and is now designated
puller T10133/2 A . If new tool is not yet available, you can carry
out modification yourself.
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
2. Injection system 217
