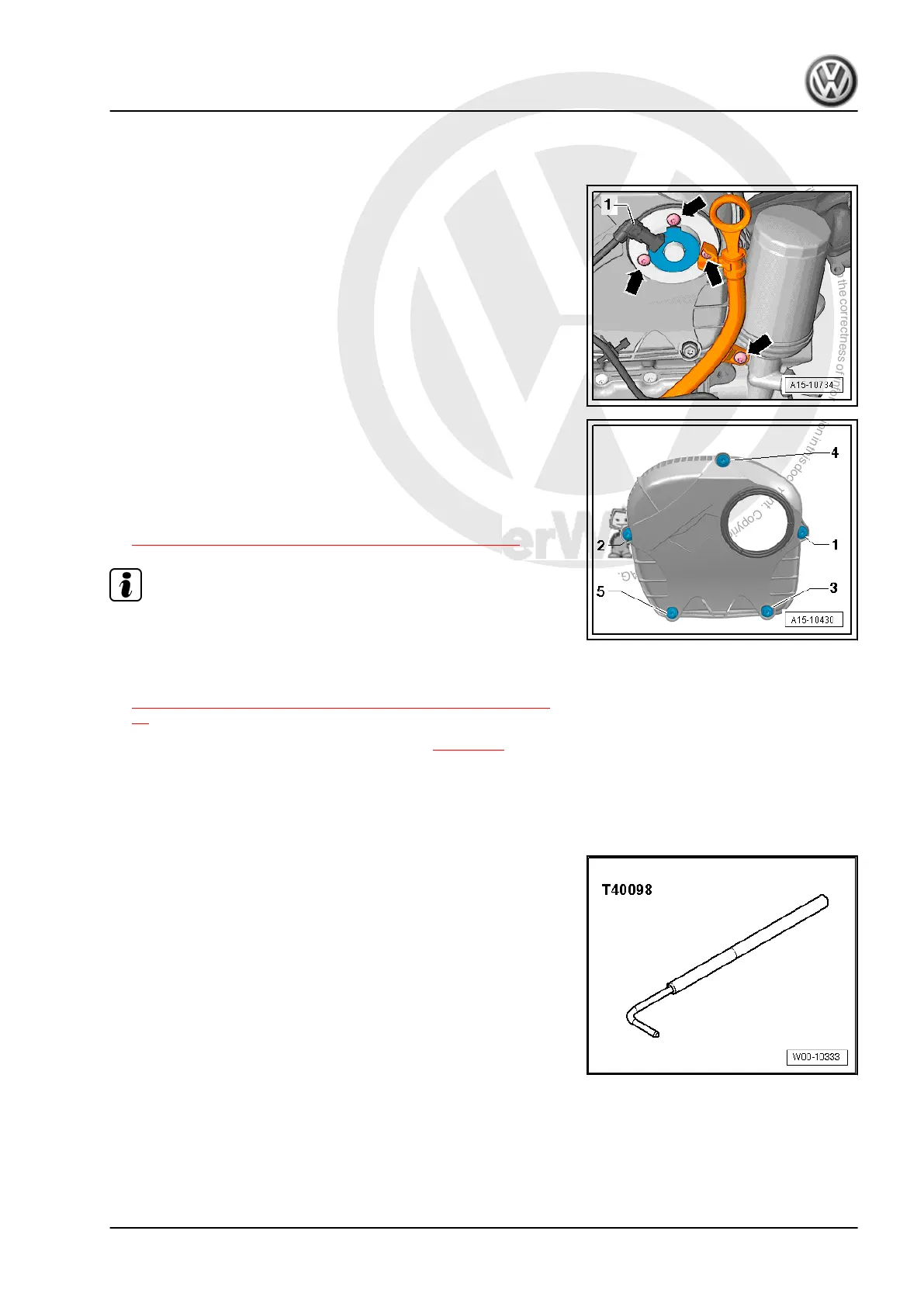

2.3 Removing and installing upper timing
chain cover
Removing
– Detach connector from inlet camshaft control valve 1 -N205-
-1-.
– Unscrew bolts -arrows- and remove inlet camshaft control
valve 1 -N205- .
– Unscrew bolts -1 to 5- and detach top cover for timing chain.
Installing
Installation is carried out in the reverse order. When installing,
note the following:
• Specified torque
⇒ „2.1 Assembly overview - timing chain cover“, page 65 .
Note
Renew O-ring.
– Lubricate seal and O-ring with engine oil.
– Install timing chain cover (top), tightening sequence
⇒ Fig. “„Timing chain cover (top), tightening sequence““ , page
66 .
– Install inlet camshaft control valve 1 -N205- ⇒ page 66 .
2.4 Removing and installing timing chain
cover (bottom)
Special tools and workshop equipment required
♦ Locking tool -T40098-
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
2. Chain drive 67
