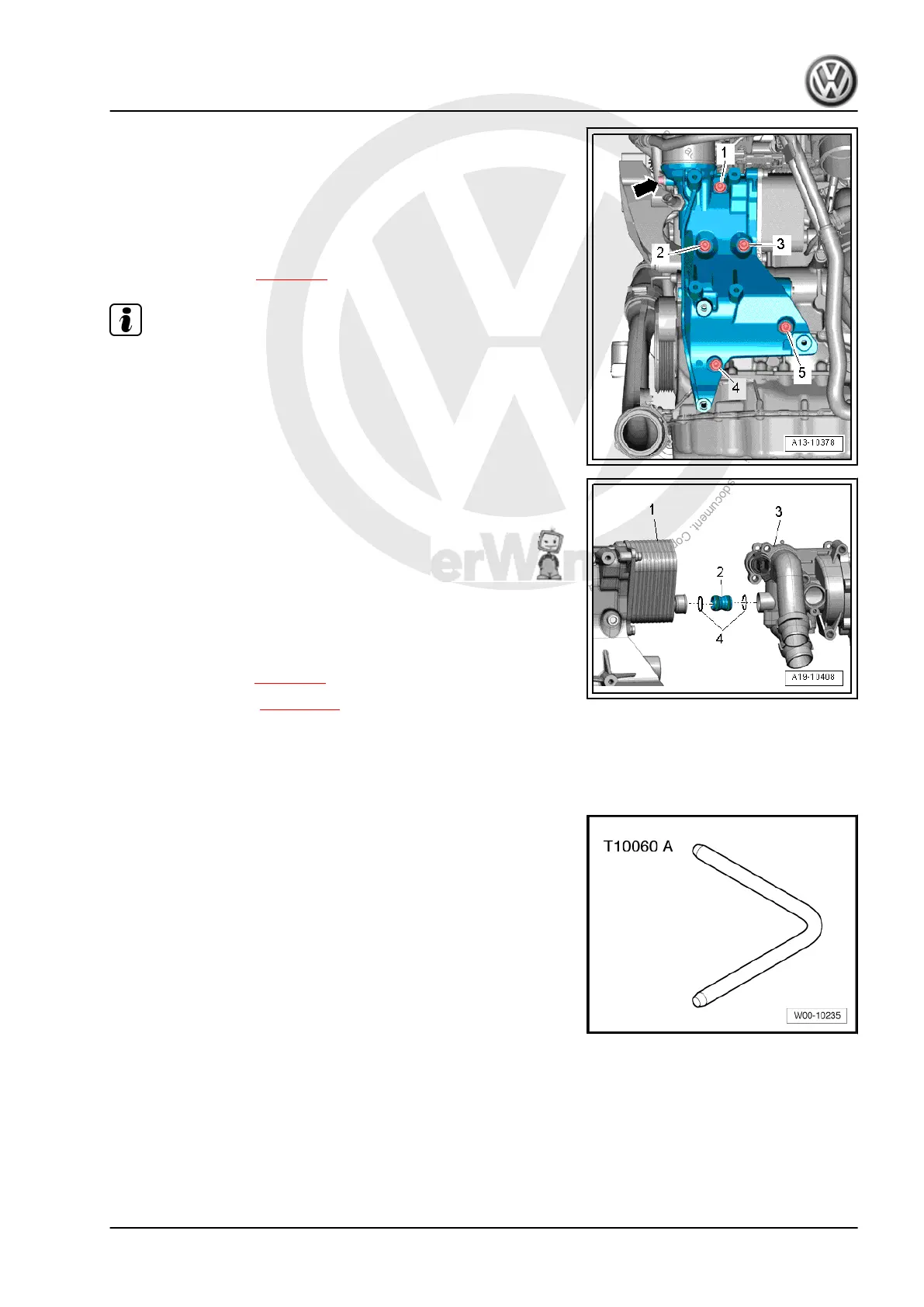

– Remove bolt -arrow- for dipstick guide tube.
– Unscrew bolts -1 … 5- and detach bracket for ancillary units
from coolant pump housing.
Installing
Installation is carried out in the reverse order. When installing,
note the following:
• Specified torques ⇒ page 19 .
Note
♦
Renew bolts that are tightened with specified further tightening
angle.
♦
Renew O-rings and seals.
– Coat O-rings -4- with coolant additive, coolants ⇒ Electronic
parts catalogue .
– Insert connection -2- into coolant pump housing -3-.
– Push bracket for ancillaries -1- onto connection, fit bolts and
tighten, tightening sequence.
– Install vane pump ⇒ Rep. gr. 48 .
– If present, fit air conditioner compressor ⇒ Rep. gr. 87 .
– Install alternator ⇒ Rep. gr. 27 .
– Install poly V-belt ⇒ page 22 .
– Replenish coolant ⇒ page 133 .
1.5 Removing and installing vibration damp‐
er
Special tools and workshop equipment required
♦ Locking pin -T10060 A-
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
1. Cylinder block (pulley end) 27
