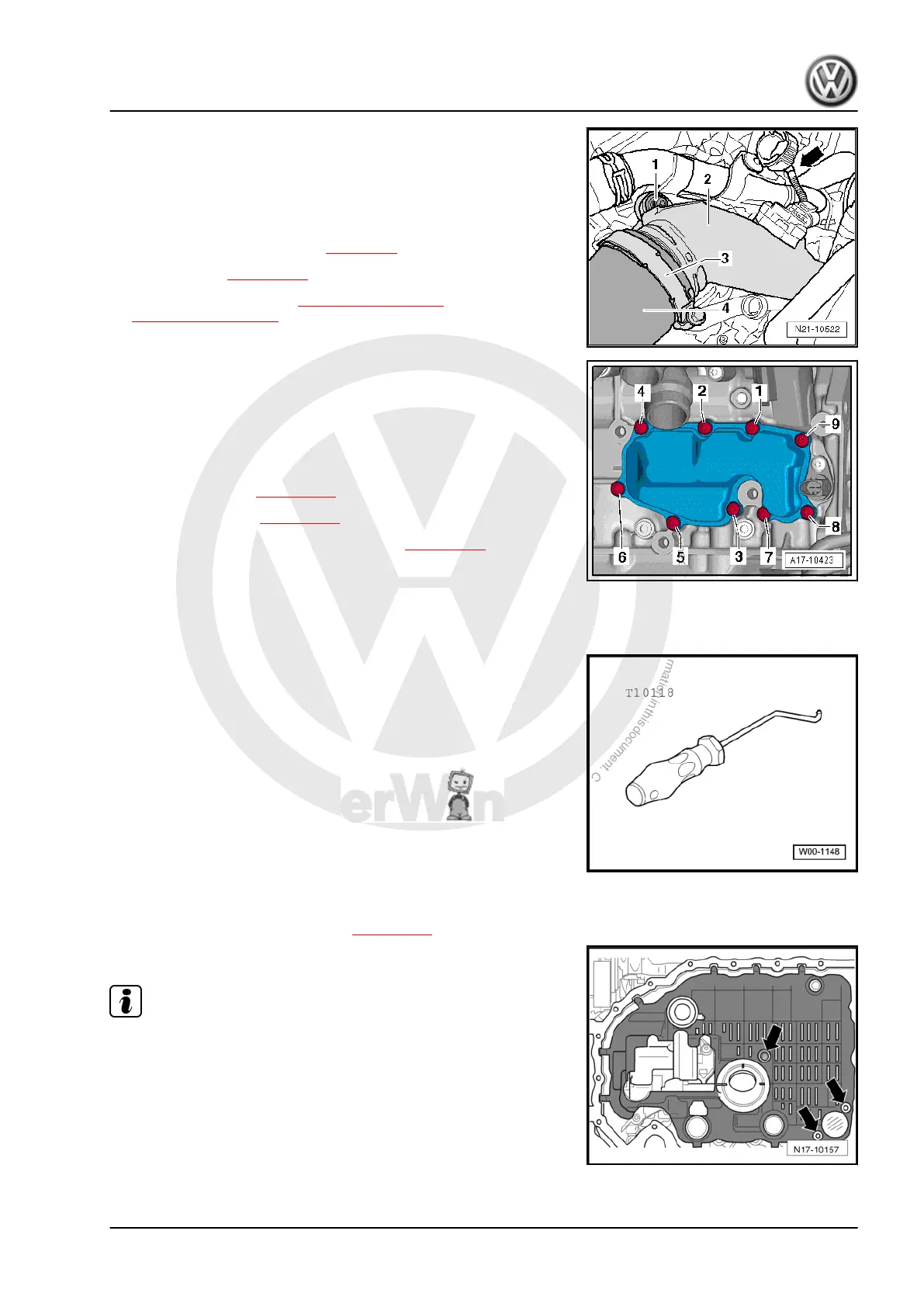

– Release hose clip -arrow- from throttle valve module -J338- .
– Unscrew bolt -1- from pressure pipe -2- and remove pressure
pipe -2-.
– Remove engine guard, if fitted ⇒ Body, front; Rep. gr. 50 ;
Engine guard .
– Remove left engine support ⇒ page 17 .
– Drain coolant ⇒ page 133 .
– Release vacuum hoses ⇒ Item 17 (page 141) and
⇒ Item 13 (page 141) from coolant pump.
– Remove coarse oil separator -1 ... 9-.
Installing
Installation is carried out in the reverse order. When installing,
note the following:
– Coarse oil separator, tightening sequence
• Specified torques ⇒ page 116 .
– Replenish coolant ⇒ page 133 .
– Check oil level and top up, if necessary ⇒ page 115 .
1.5 Removing and installing oil pump
Special tools and workshop equipment required
♦ Assembly tool -T10118-
Removing
– Remove sump (bottom section) ⇒ page 120 .
– Remove baffle plate -arrows-.
Note
The following procedure must be performed in one operation. A
2nd mechanic is required to assist.
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
1. Parts of lubrication system 119
