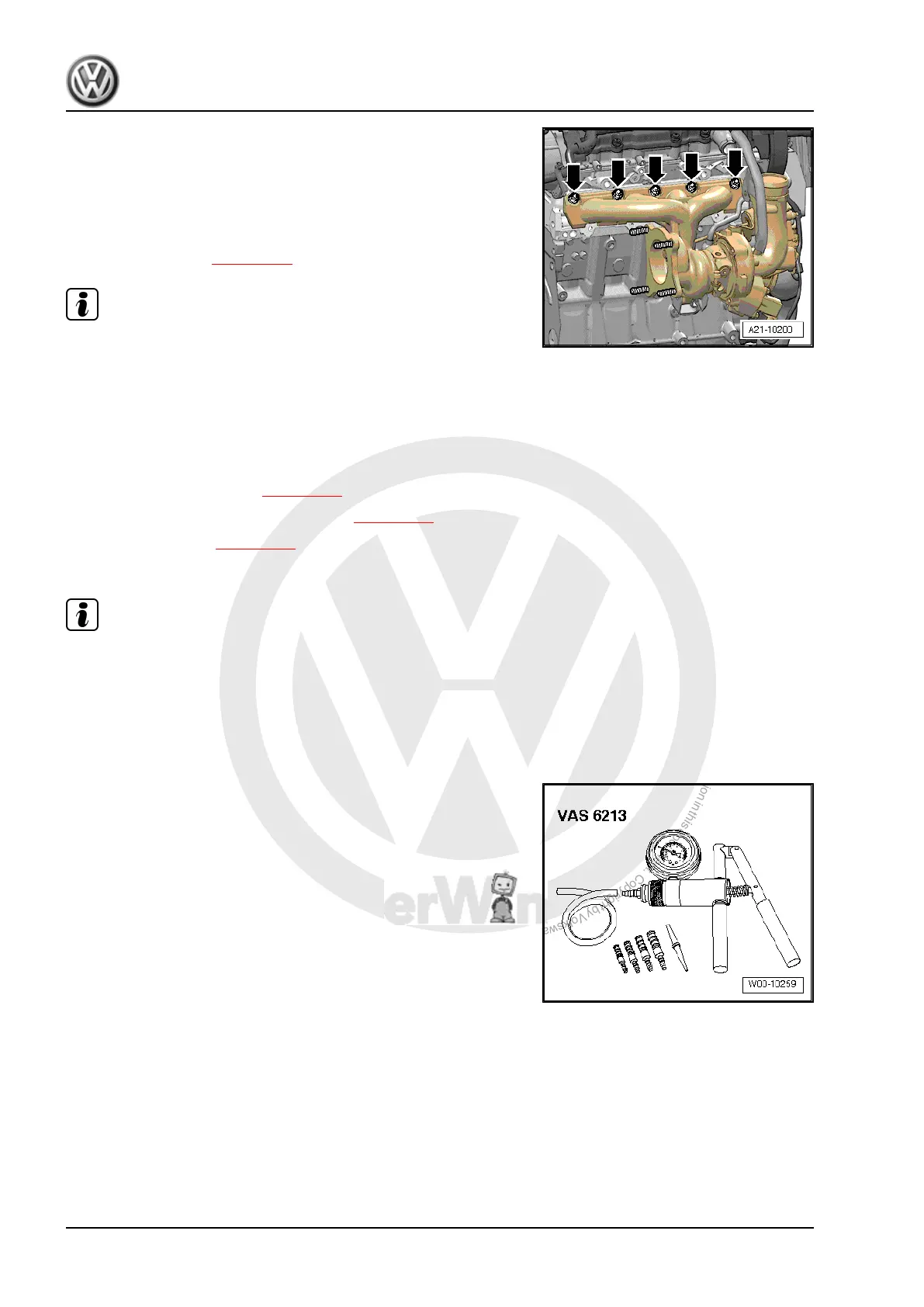

– Remove nuts -arrows-.
– Remove turbocharger with exhaust manifold upwards.
Installing
Installation is carried out in the reverse order. When installing,
note the following:
• Specified torques ⇒ page 192 .
Note
♦
Renew seals, gaskets, O-rings and self-locking nuts.
♦
Fill turbocharger with engine oil at oil supply line connection.
♦
Hose connections and hoses for charge air system must be
free of oil and grease before assembly.
♦
Secure all hose connections with hose clips corresponding to
the series equipment ⇒ Electronic parts catalogue .
– Install catalytic converter ⇒ page 240 .
– Aligning exhaust system free of stress ⇒ page 243 .
– Replenish coolant ⇒ page 133 .
– Check oil level, Amarok ⇒ Maintenance ; Booklet 11 .
Note
After installing turbocharger, run engine for about 1 minute at
idling and do not rev up immediately, this ensures that the turbo‐
charger is fully primed with oil
2.3 Checking vacuum unit for turbocharger
Special tools and workshop equipment required
♦ Hand vacuum pump -VAS 6213-
Test prerequisite:
♦ Hose from turbocharger via charge pressure control solenoid
valve -N75- to vacuum unit must have through-flow (not be
blocked).
♦ Charge pressure control solenoid valve -N75- OK.
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
200 Rep. gr.21 - Turbocharging/supercharging
