possibility that the person sitting in this seat may receive serious
injuries when the airbag is triggered.

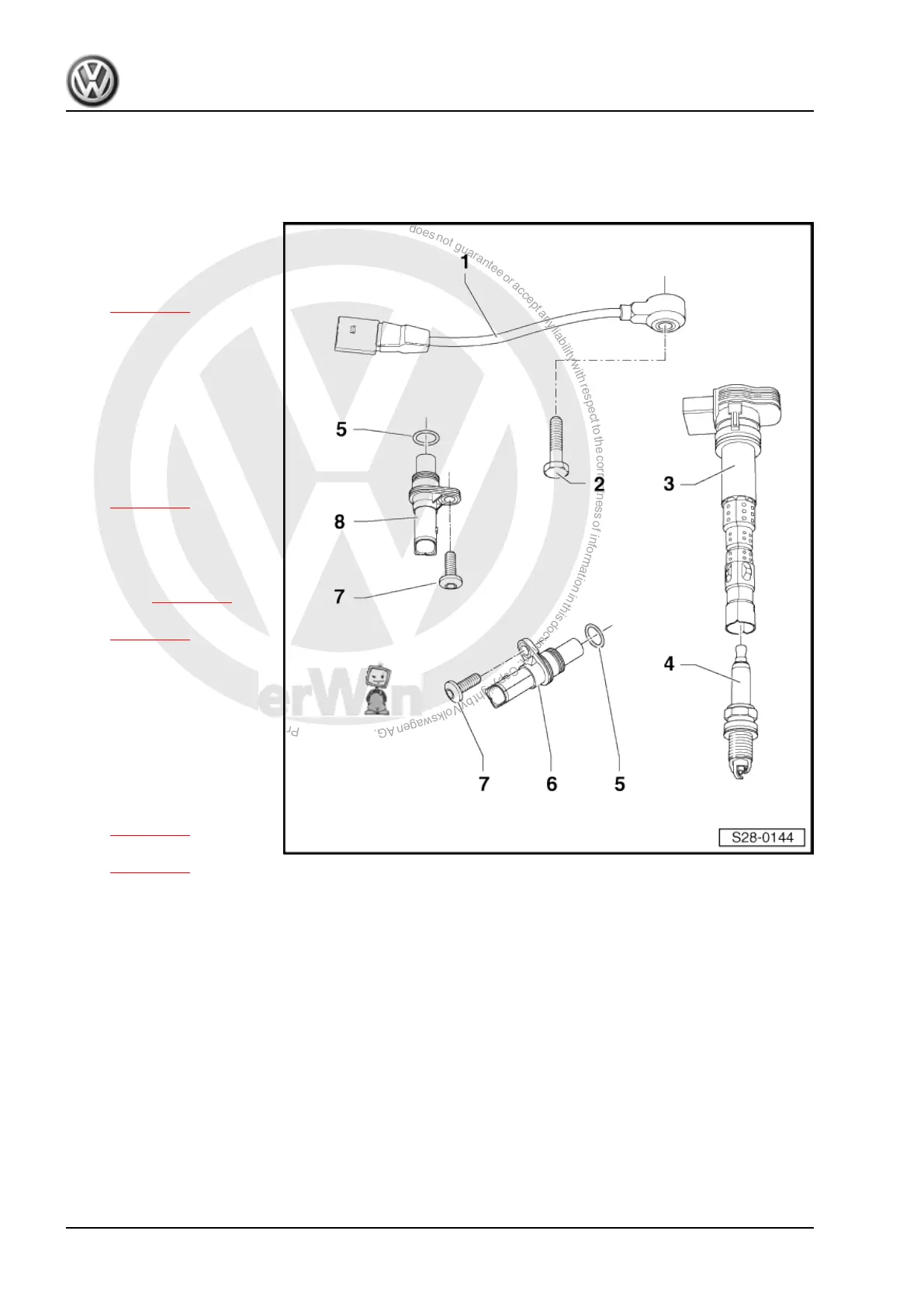

1.3 Assembly overview - ignition system
1 - Knock sensor 1 -G61-
❑ On front of cylinder head
under intake manifold
❑ Removing and installing
⇒ page 252 .
❑ Gold-plated contacts.
2 - 20 Nm
❑ The specified torque in‐
fluences the function of
the knock sensor.
3 - Ignition coil with output
stage -(N70, N127, N291,
N292)-
❑ Removing and installing
⇒ page 248 .
4 - Spark plug, 25 Nm
❑ If a spark plug is re‐
placed, regrease igni‐
tion coil with final output
stage ⇒ page 249
❑ Type and electrode gap
⇒ page 253 .
❑ Remove and install with
spark plug socket and
extension -3122 B- .
5 - O-ring
❑ Renew.
6 - Engine speed sender -G28-
❑ At lower left of front cyl‐
inder block, next to
coarse oil separator
⇒ page 118
❑ Removing and installing
⇒ page 252 .
7 - 10 Nm
8 - Hall sender -G40-
❑ In cylinder head cover at front.
❑ Gold-plated contacts.
1.4 Removing and installing ignition coils
with output stage
Special tools and workshop equipment required
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
248 Rep. gr.28 - Ignition system
