2 Oil filter bracket, oil pressure, engine
oil cooler and oil supply line

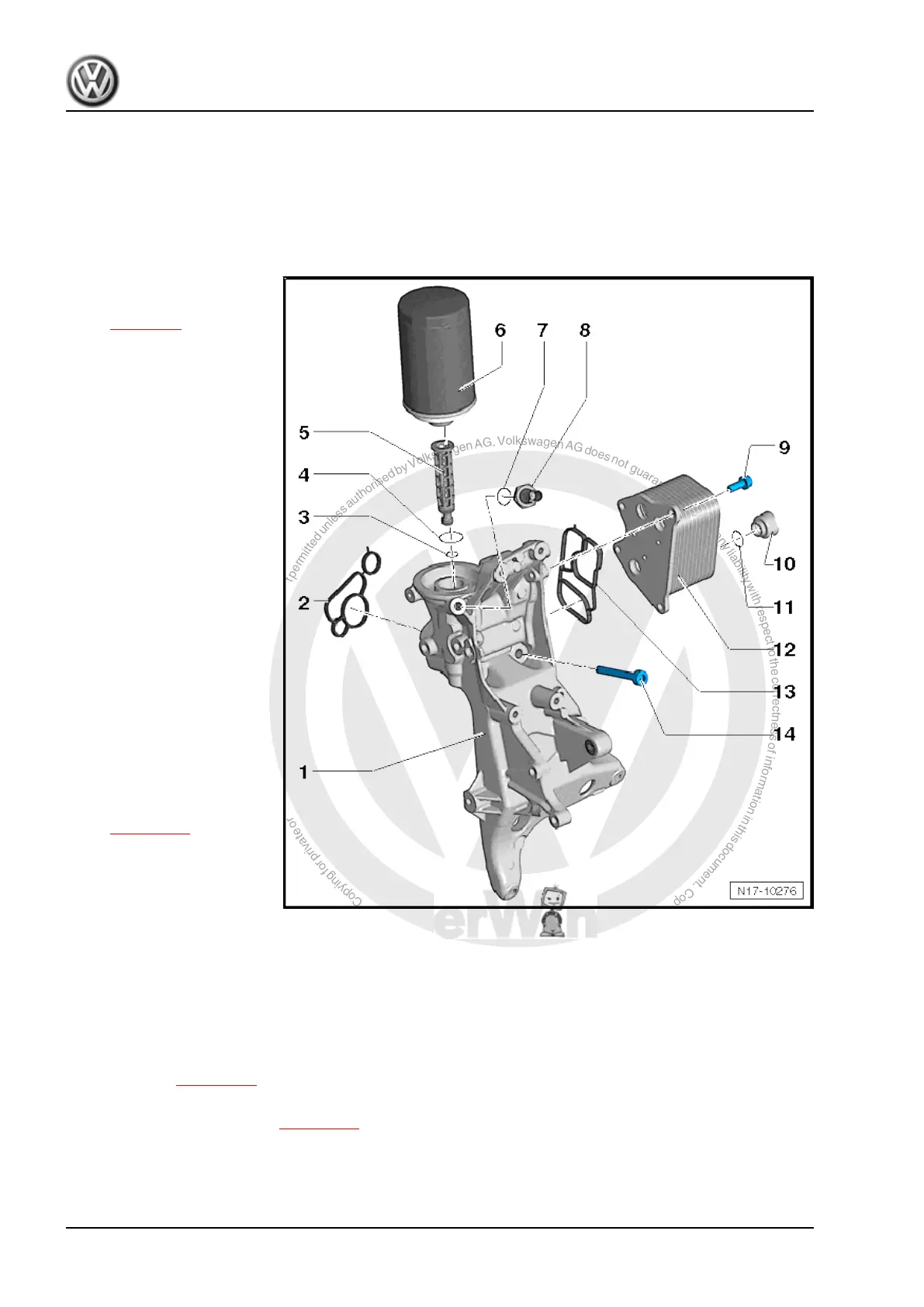

2.1 Assembly overview - oil filter, engine oil cooler
1 - Bracket for ancillaries
❑ Removing and installing
⇒ page 24 .
2 - Seal
❑ Renew.
3 - O-ring
❑ Not replacement part.
Include in items sup‐
plied with valve unit
4 - O-ring
❑ Not replacement part.
Include in items sup‐
plied with valve unit
5 - Valve unit
❑ With O-rings
6 - Oil filter
❑ Removing and installing
Amarok ⇒ Mainte‐
nance ; Booklet 11 .
❑ Remove and install with
oil filter tool -3417- .
7 - Seal
❑ Renew.
8 - Oil pressure switch -F22-
❑ Blue insulation
❑ Removing and installing
⇒ page 130 .
❑ Check ⇒ Vehicle diag‐
nostic tester.
❑ 20 Nm
9 - Bolt
❑ 23 Nm
10 - Connection
11 - Seal
❑ Renew.
❑ Coat with coolant additive; coolant additive ⇒ Electronic parts catalogue .
12 - Engine oil cooler
❑ See note ⇒ page 129 .
❑ Ensure clearance to adjacent components.
❑ Removing and installing ⇒ page 129 .
13 - Seal
❑ Renew.
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
128 Rep. gr.17 - Lubrication
