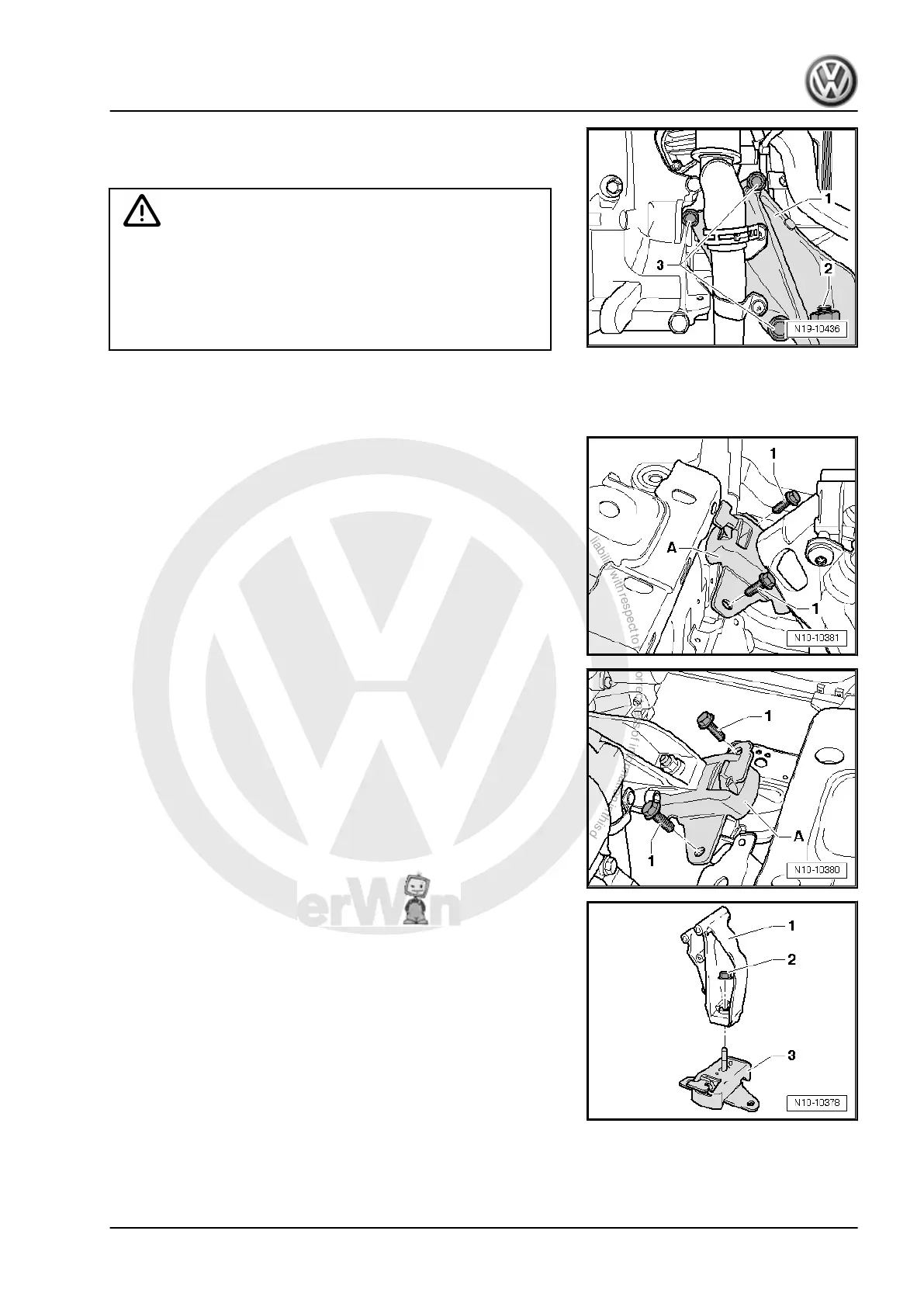

1.4 Assembly and gearbox mountings
Left and right engine support to crankcase
Caution
• Nut -2- must not be loosened.
• If nut -2- is loosened, engine mounting must subsequently
be renewed.
♦ Engine mounting connection to engine support may only
be loosened if engine mounting is to be renewed.
– Secure engine support -1- to crankcase with bolts -3-.
– Always renew bolts -3- and tighten to 50 Nm + 180° (1/2 turn).
Right engine mounting to frame
– Secure engine mounting -A- to frame with bolts -1-.
– Always renew bolts -1- and tighten to 50 Nm + 90° (1/4 turn).
Left engine mounting to frame
– Secure engine mounting -A- to frame with bolts -1-.
– Always renew bolts -1- and tighten to 50 Nm + 90° (1/4 turn).
Left engine mounting to engine support
– Bolt new engine mounting -3- to engine support -1- with nut
-2-.
– Always renew nut -2- and tighten to 90 Nm + 90° (1/4 turn).
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
1. Removing and installing engine 17
