– Push on breather line -3- and engage securely.
♦ Connections for breather and fuel lines must engage audibly
when joined.
♦ Clip fuel lines onto fuel tank.
♦ Push connector onto fuel pump flange and clip wire onto fuel
tank.
♦ Ensure that fuel hose connections are tight.

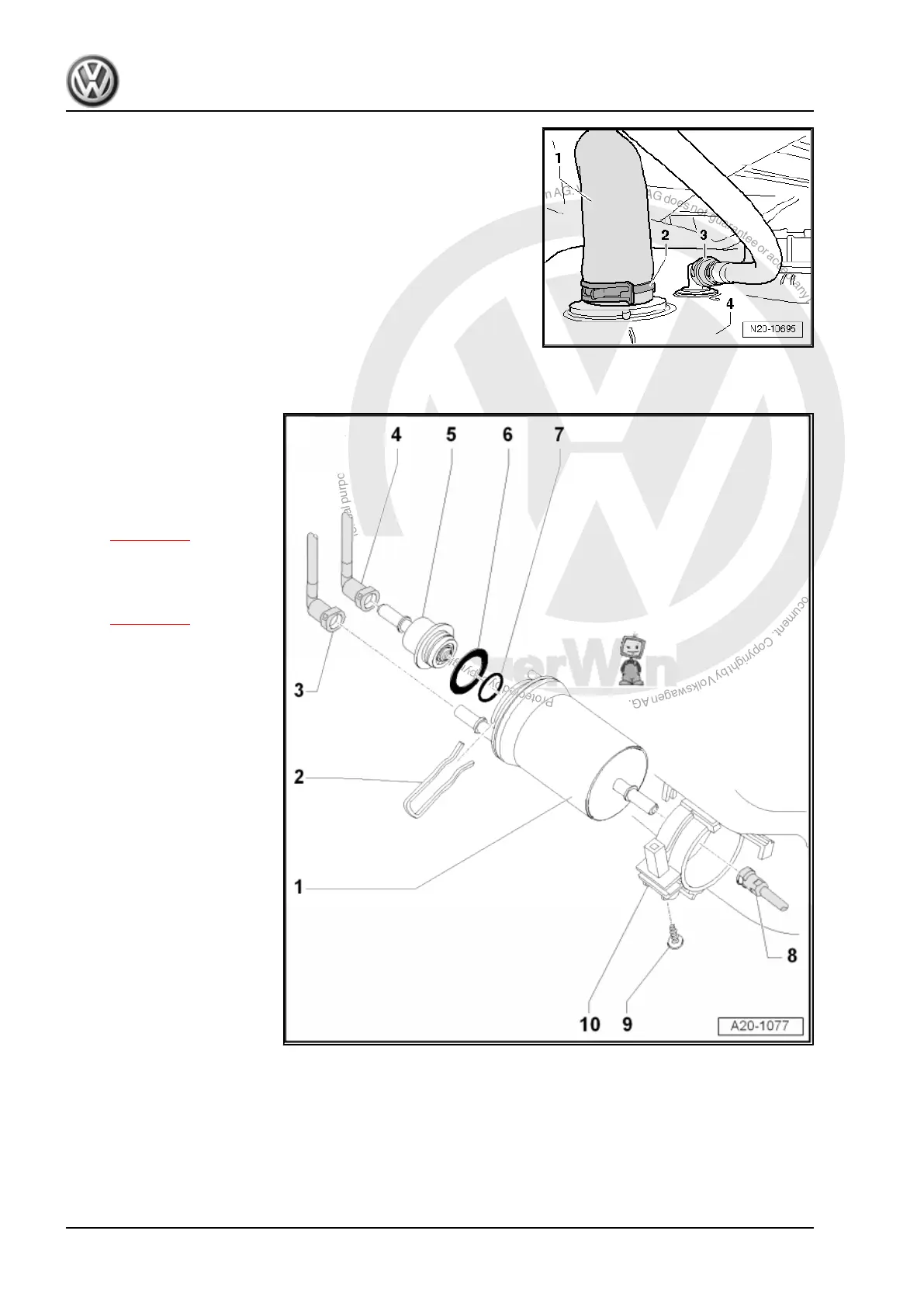

3.6 Assembly overview - fuel filter with attachments
1 - Fuel filter
❑ Direction of flow is
marked with arrows.
❑ Do not interchange con‐
nections.
❑ Removing and installing
⇒ page 177 .
❑ Installation position: pin
on filter housing must
engage in notch of guide
in filter bracket
⇒ page 177 .
2 - Retaining clip
❑ For fuel pressure regu‐
lator.
❑ Check for secure seat‐
ing.
3 - Fuel supply line
❑ Black
❑ From fuel tank.
❑ To pull off, press release
button on connection.
4 - Fuel return line
❑ Blue
❑ To fuel tank.
❑ To pull off, press release
button on connection.
5 - Fuel pressure regulator
❑ 4 bar.
6 - Seal
❑ Renew.
7 - O-ring
❑ Renew.
8 - Fuel supply line
❑ Black
❑ To engine.
❑ To pull off, press release button on connection.
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
176 Rep. gr.20 - Fuel supply system
