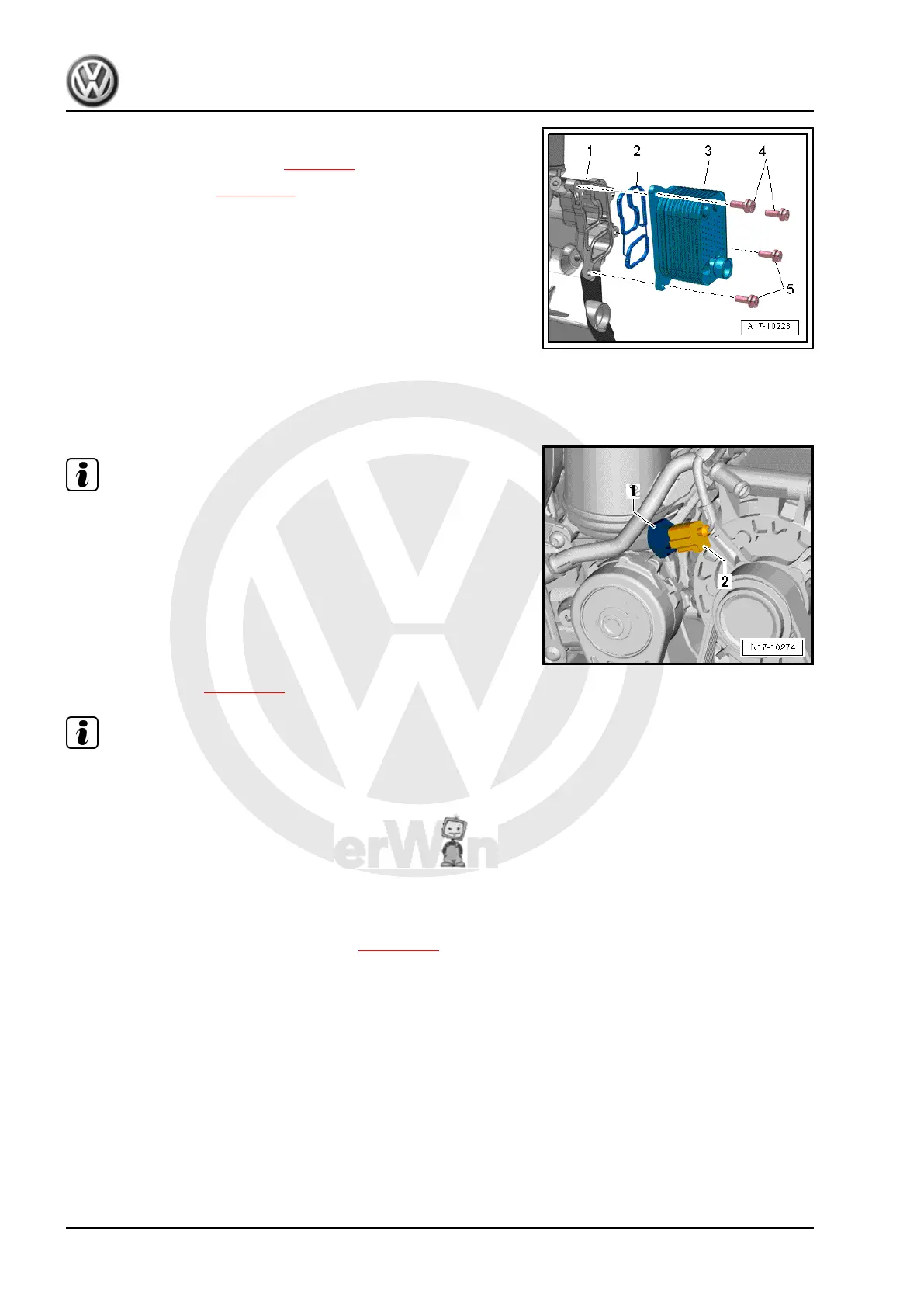

– Install engine oil cooler -3- with new seal -2-.
– Install bracket for ancillaries ⇒ page 24 .
– Replenish coolant ⇒ page 133 .
2.3 Removing and installing oil pressure
switch -F22-
Removing
Note
Place a cloth underneath bracket for ancillaries to catch any es‐
caping engine oil.
– Detach connector -2- from oil pressure switch -F22- -1-.
– Unscrew oil pressure switch -F22- -2-.
Installing
Installation is carried out in the reverse order. When installing,
note the following:
• Specified torque ⇒ page 128 .
Note
♦
Renew seal.
♦
Insert new oil pressure switch -F22- immediately in bore to
avoid loss of oil.
2.4 Removing and installing oil supply line
to turbocharger
Removing
– Loosing securing bolt for oil supply line ⇒ page 192 .
– Loosen bolt at top and bottom of oil supply line.
Installing
– Install in reverse order.
2.5 Checking oil pressure
Special tools and workshop equipment required
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
130 Rep. gr.17 - Lubrication
