18 - Centralising pin
19 - O-ring
❑ Renew.
20 - Connection
21 - Bolt
❑ 9 Nm

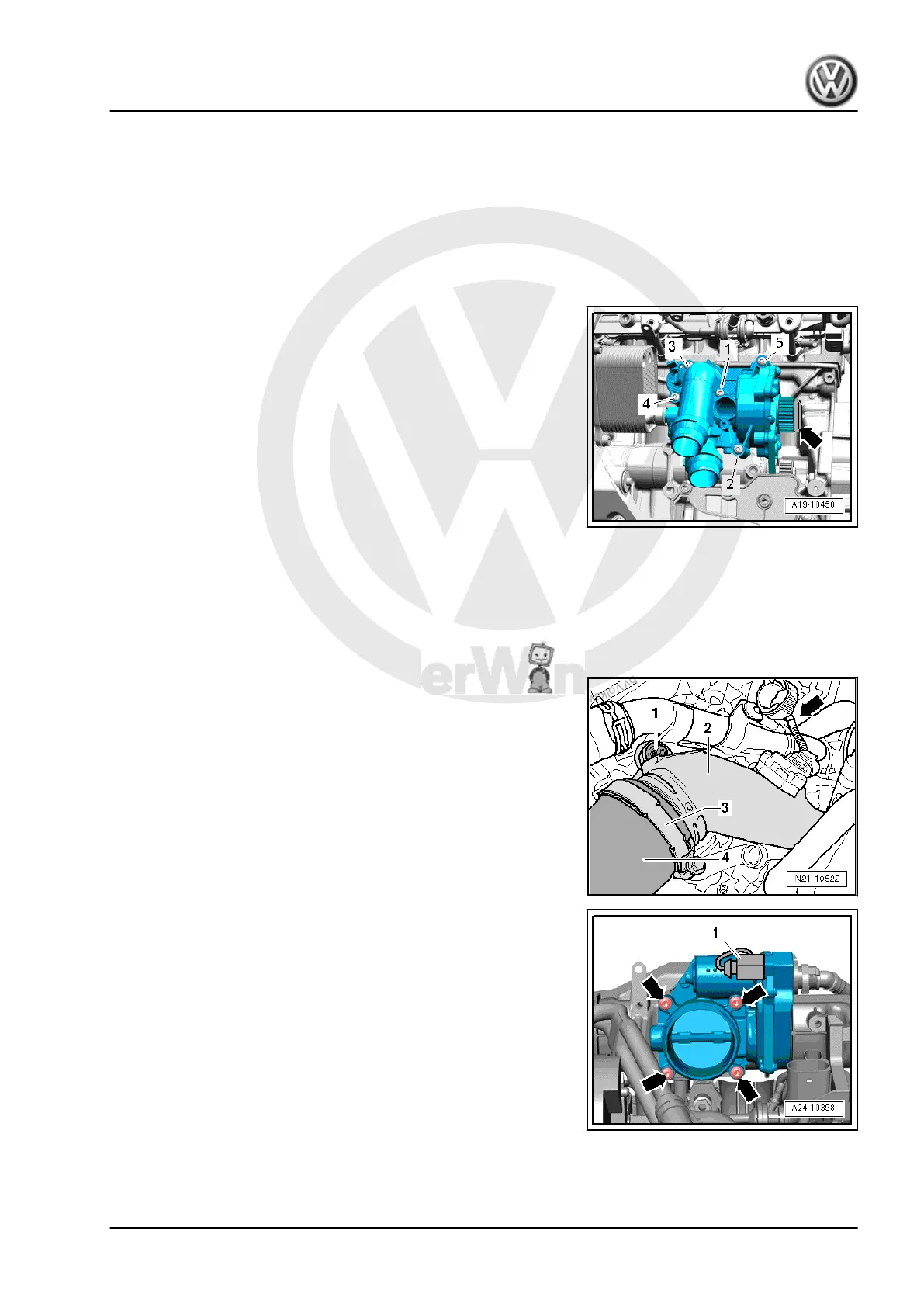

Coolant pump - tightening sequence
– Tighten bolts for coolant pump in the sequence -1 … 5- to 9
Nm.
3.4 Removing and installing coolant temper‐
ature sender -G62-
Removing
• Engine cold
– Release clip -3- from pressure hose -4-.
– Release hose clip -arrow- from throttle valve module -J338- .
– Unscrew bolt -1- from pressure pipe -2- and remove pressure
pipe -2-.
– Disconnect electrical connector -1- at throttle valve module -
J338- .
– Remove bolts -arrows- and detach throttle valve module -
J338- .
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
3. Parts of cooling system, engine side 145
