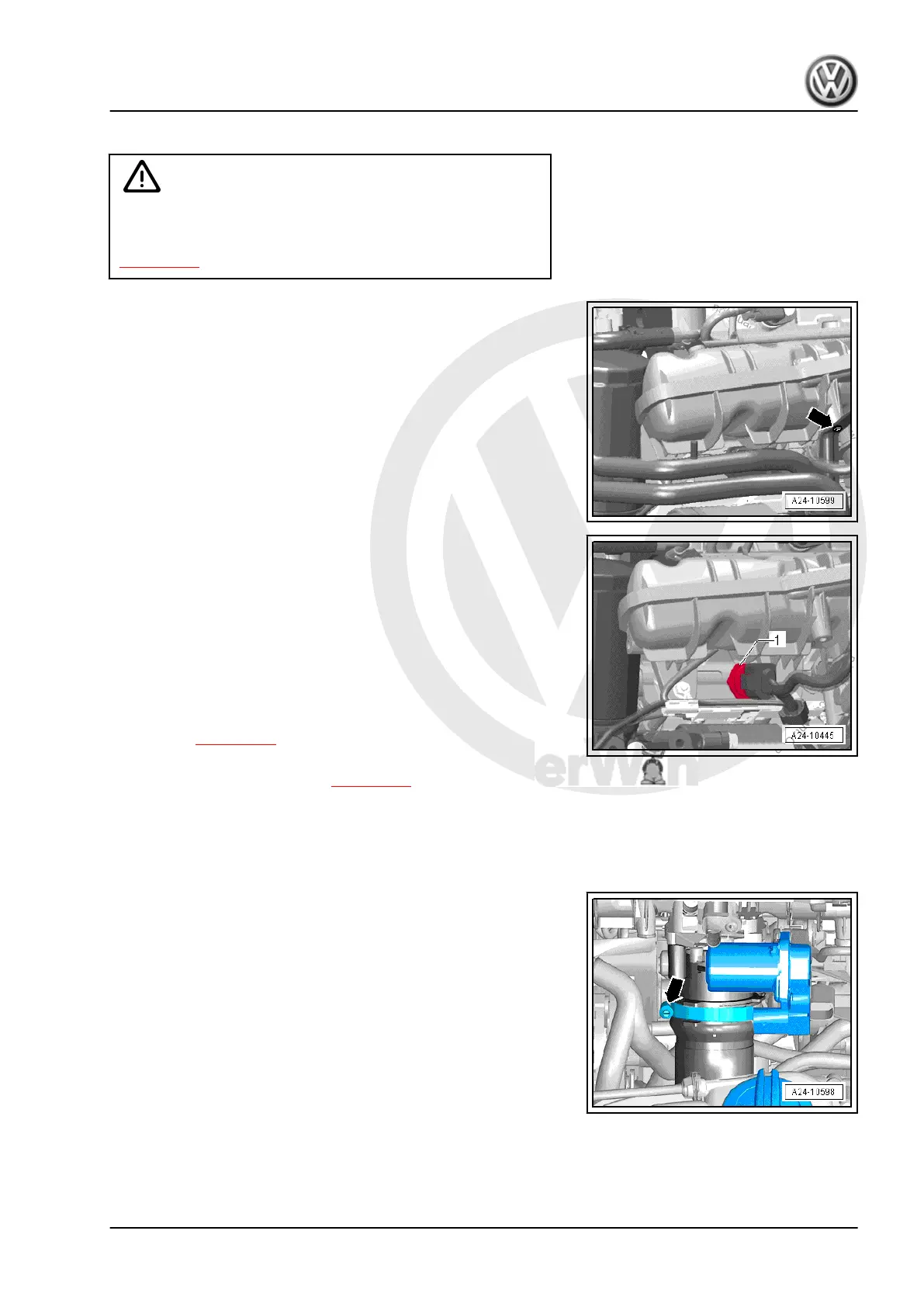

Removing
WARNING
The fuel system is pressurised! The fuel pressure in the high-
pressure part of the injection system must be reduced to a
residual pressure prior to opening; for procedure see
⇒ page 161 .
– Unscrew coolant line bolt -arrow- from intake manifold.
– Disengage connector from fuel pressure sender -G247- with
assembly tool -T10118- .
– Unscrew fuel pressure sender -G247- using double hexagon
socket, 1/2, 27mm -VAS 5301/7- .
Installing
– Install in reverse order.
– Check tightening torque of connection before installing fuel
pressure sender -G247- .
• Specified tightening torque of connection: assembly overview
- fuel rail ⇒ page 212 .
• Specified tightening torque of fuel pressure sender -G247- :
assembly overview - fuel rail ⇒ page 212 .
2.13 Removing and installing throttle valve
module -J338-
Removing
– Open hose clip -arrow- of air duct and detach this downwards
from throttle valve module -J338- .
– Detach electrical connector -1- from throttle valve module -
J338- .
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
2. Injection system 223
