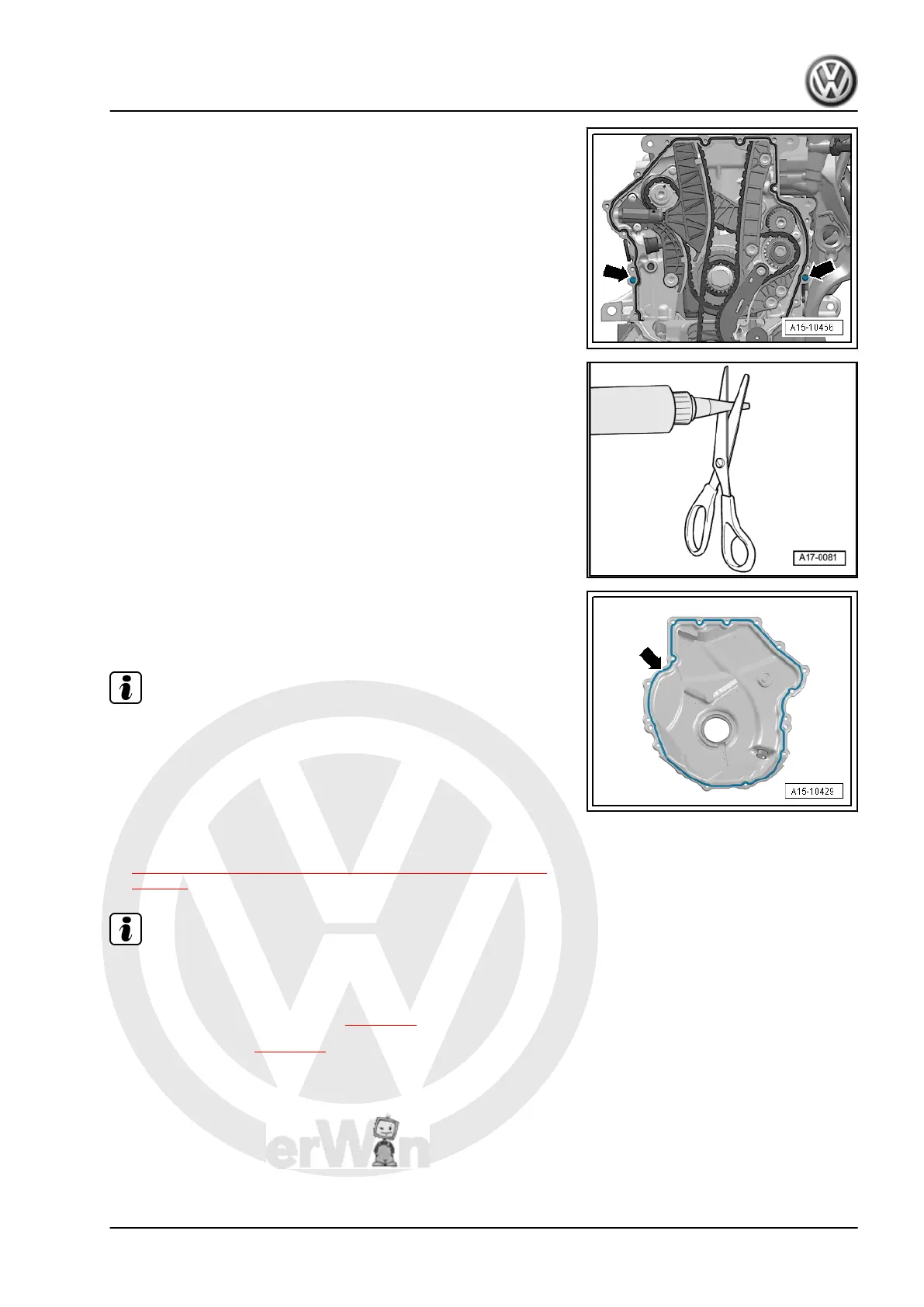

– Check that both dowel pins are fitted in cover -arrows-.
– Cut off nozzle on tube at front marking (∅ of nozzle approx.
3 mm).
– Apply silicone sealant onto clean sealing surface of cover, as
illustrated.
♦ Thickness of sealant bead: 2 ... 3 mm.
Note
♦
The cover must be installed within 5 minutes after applying the
silicone sealant.
♦
The bead of sealant must not be thicker than specified, other‐
wise excess sealant can enter the sump and obstruct the
strainer in the oil intake pipe.
– Install cover immediately and tighten bolts, tightening se‐
quence
⇒ Fig. “„Timing chain cover (bottom), tightening sequence““ ,
page 66 .
Note
After fitting cover, let sealant dry for approx. 30 minutes. Only then
fill with engine oil.
– Install tensioner for poly V-belt ⇒ page 21 .
– Install poly V-belt ⇒ page 22 .
2.5 Renewing oil seal for vibration damper
Special tools and workshop equipment required
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
2. Chain drive 71
