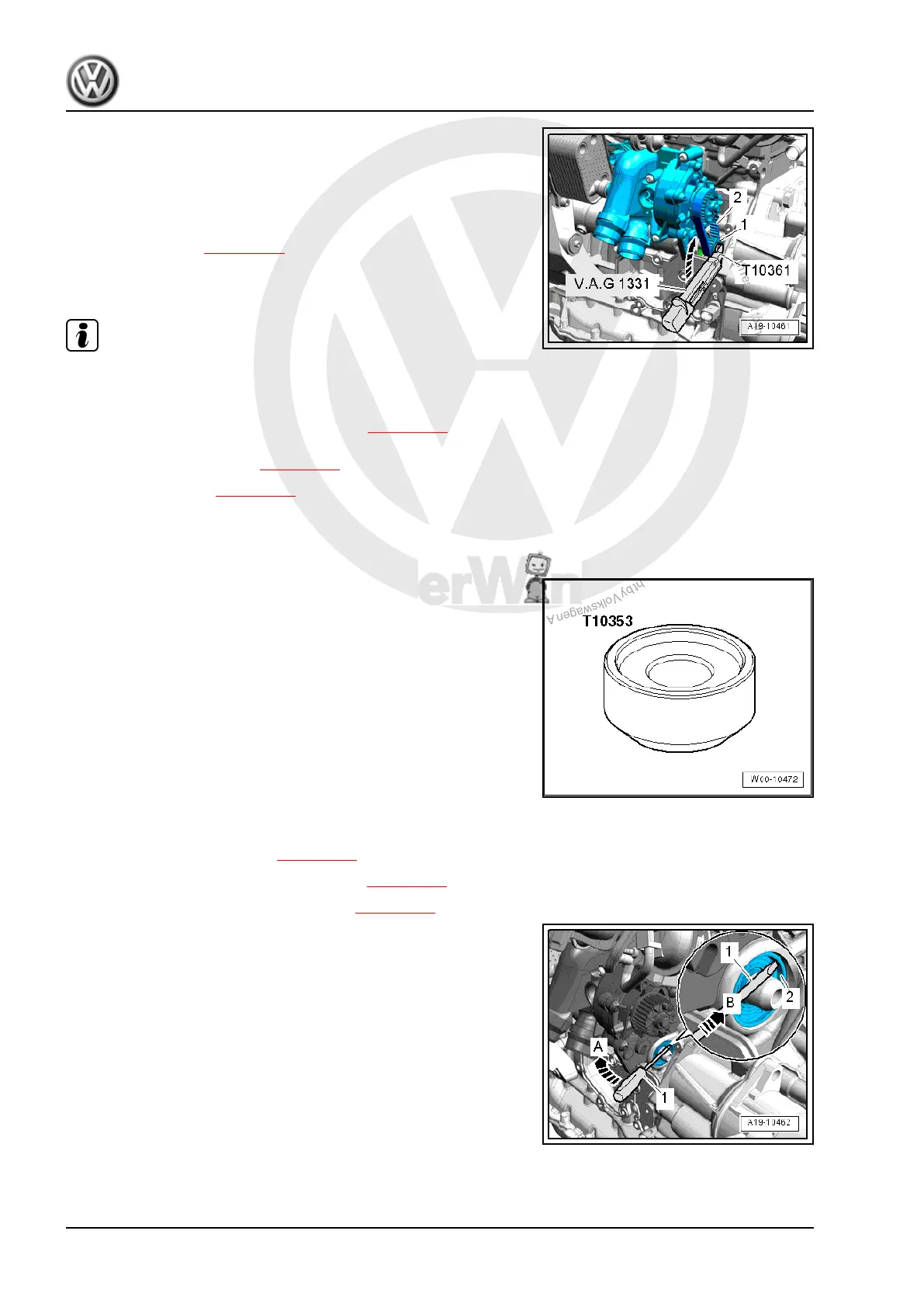

– Use torque wrench -V.A.G 1331- and socket -T10360- to re‐
move bolt on coolant pump drive sprocket -1- (counterhold at
vibration damper.
– Detach drive sprocket -1- and toothed belt -2-.
Installing
• Specified torque ⇒ page 144 .
Installation is carried out in the reverse order. When installing,
note the following:
Note
♦
Replace bolt for drive sprocket.
♦
Renew seals and O-rings.
♦
Note installation position of V-belt pulley ⇒ page 144 .
– Install short coolant pipe ⇒ page 141 .
– Replenish coolant ⇒ page 133 .
3.6 Renewing oil seal for coolant pump drive
Special tools and workshop equipment required
♦ Thrust piece -T10353-
Procedure
– Remove short coolant pipe ⇒ page 141 .
– Release long coolant pipe and lay aside ⇒ page 141 .
– Remove toothed belt for coolant pump ⇒ page 146 .
– Press screwdriver -1- firmly onto section -2- of oil seal
-arrow B-.
– Lever out oil seal -arrow A-.
– Clean contact surface and sealing surface.
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
148 Rep. gr.19 - Cooling
