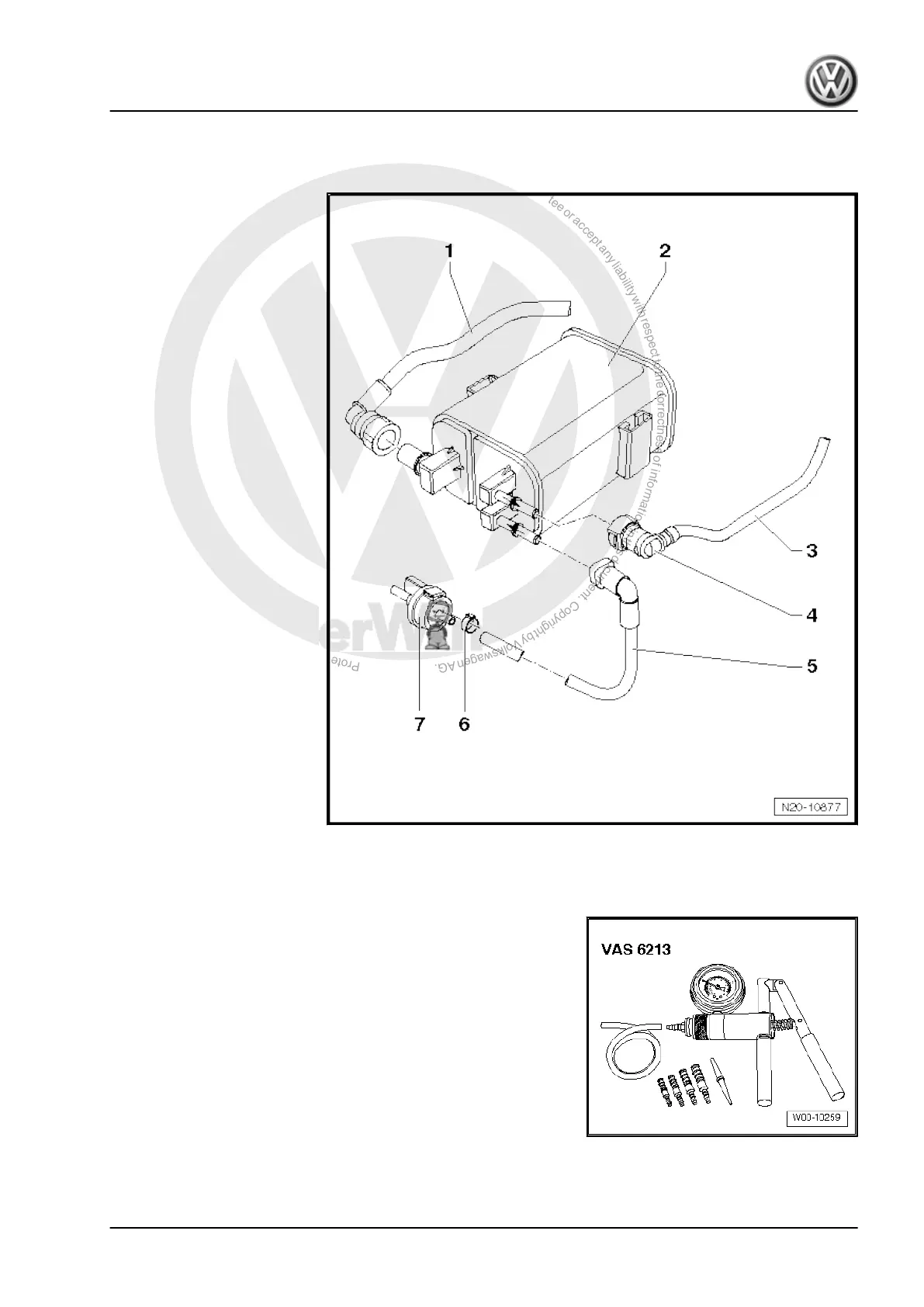

5 Activated charcoal filter system
1 - Breather line
❑ Check for secure seat‐
ing.
2 - Activated charcoal filter
❑ Location: on fuel tank,
left.
❑ Removing and installing
only with fuel tank re‐
moved
3 - Breather line
❑ Check for secure seat‐
ing.
4 - Quick-release coupling
❑ Check for secure seat‐
ing.
5 - Fuel line
❑ Check for secure seat‐
ing.
6 - Clip
7 - Activated charcoal filter sol‐
enoid valve 1 -N80-
❑ Valve closed with igni‐
tion switched off.
❑ When engine is warm,
valve will be activated
(pulsed) by engine con‐
trol unit.
5.1 Checking fuel tank breather
Special tools and workshop equipment required
♦ Hand vacuum pump -VAS 6213-
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
5. Activated charcoal filter system 181
