2 Cylinder block (gearbox end)

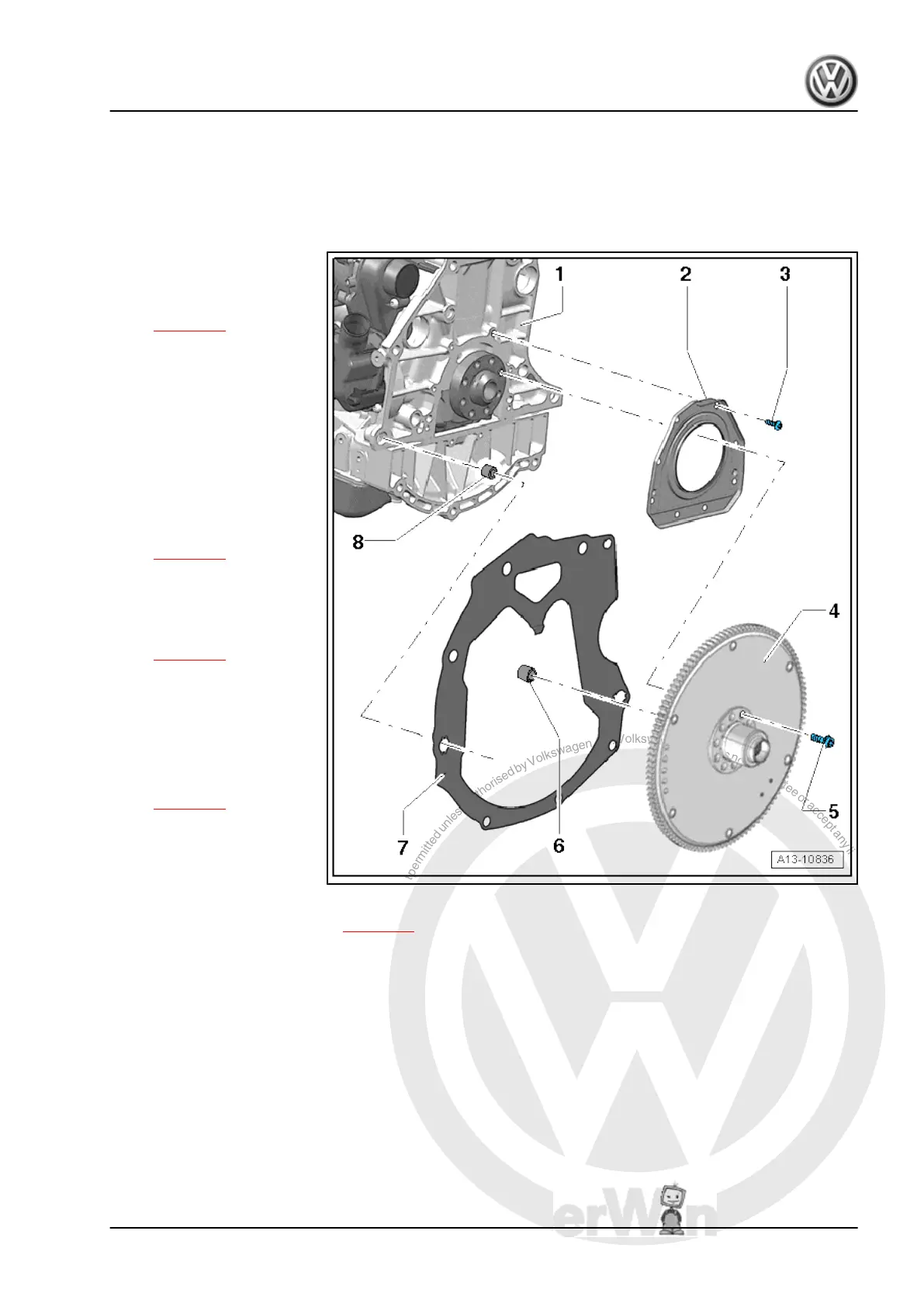

2.1 Assembly overview - sealing flange and drive plate
1 - Cylinder block
2 - Sealing flange with oil seal
❑ Removing and installing
⇒ page 33 .
❑ Renew complete only.
❑ Do not oil or grease oil
seal sealing lip.
❑ Use support sleeve sup‐
plied when installing.
❑ Before installing, re‐
move oil residue from
crankshaft journal using
a clean cloth.
3 - Bolt
❑ Tightening sequence
⇒ page 30 .
4 - Drive plate
❑ To loosen securing
bolts, lock using 3067.
❑ Removing and installing
⇒ page 30 .
5 - Bolt
❑ 60 Nm + 90°
❑ Renew.
6 - Needle bearing
❑ Removing and installing
needle bearing
⇒ page 32
7 - Intermediate plate
❑ Must seat on dowel
sleeves.
❑ Do not damage or bend
when assembling.
❑ Is fitted onto sealing flange ⇒ page 30
8 - Dowel sleeve
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
2. Cylinder block (gearbox end) 29
