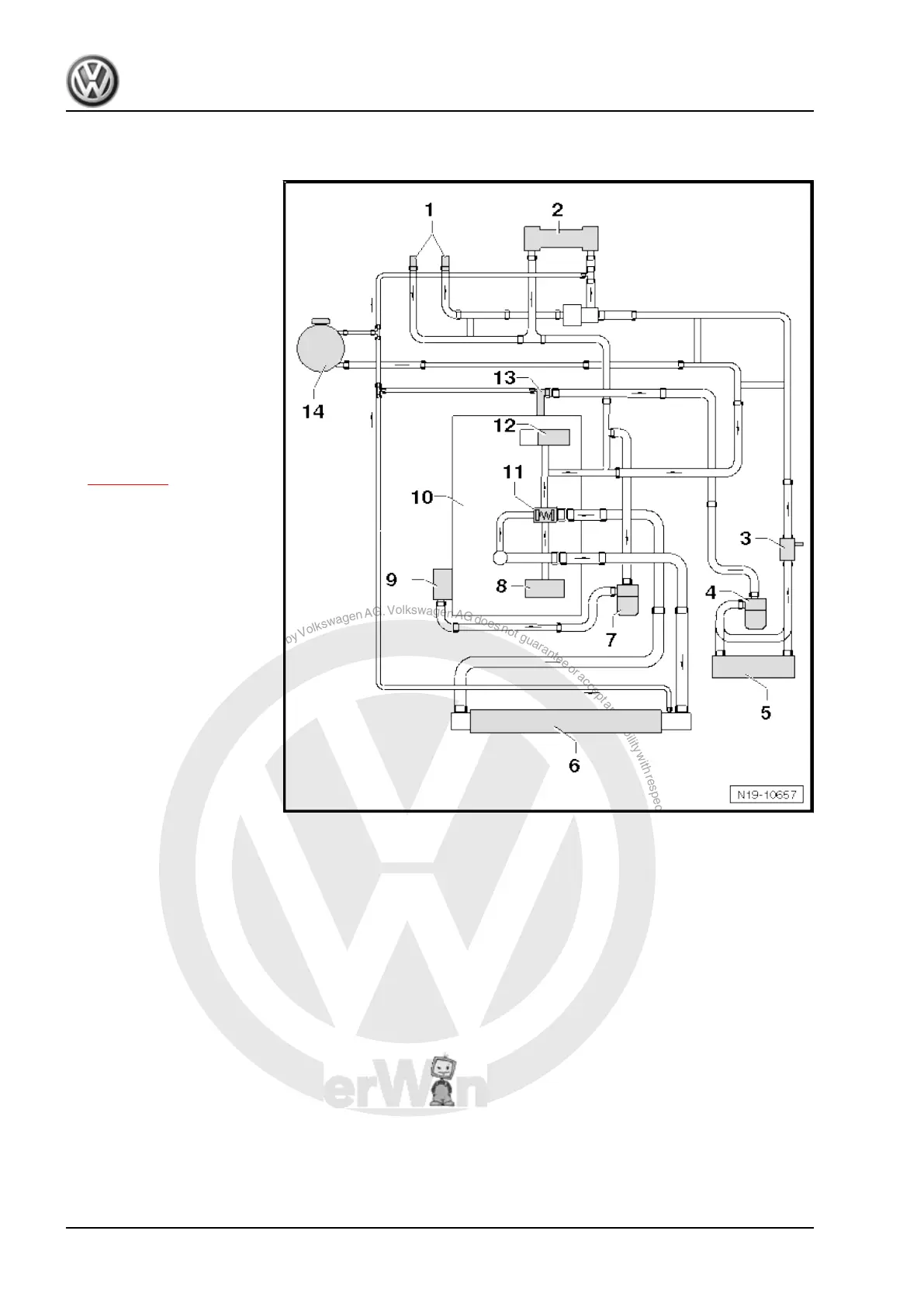

2.2 Coolant hose schematic diagram for vehicles with 2nd heat exchanger
1 - Connecting pipes for 2nd
heat exchanger
2 - Heat exchanger for heater
unit
3 - Shut-off valve
4 - Circulating pump V 55 (only
for Climatronic)
5 - Auxiliary heater
♦ Depending on equipment.
6 - Radiator
♦ Renew coolant after replac‐
ing.
♦ Removing and installing
⇒ page 152 .
7 - Circulating pump V 51
8 - Engine oil cooler
9 - Turbocharger
10 - Cylinder head
11 - Thermostat
12 - Coolant pump
13 - Cylinder head connection
14 - Expansion tank
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
140 Rep. gr.19 - Cooling
