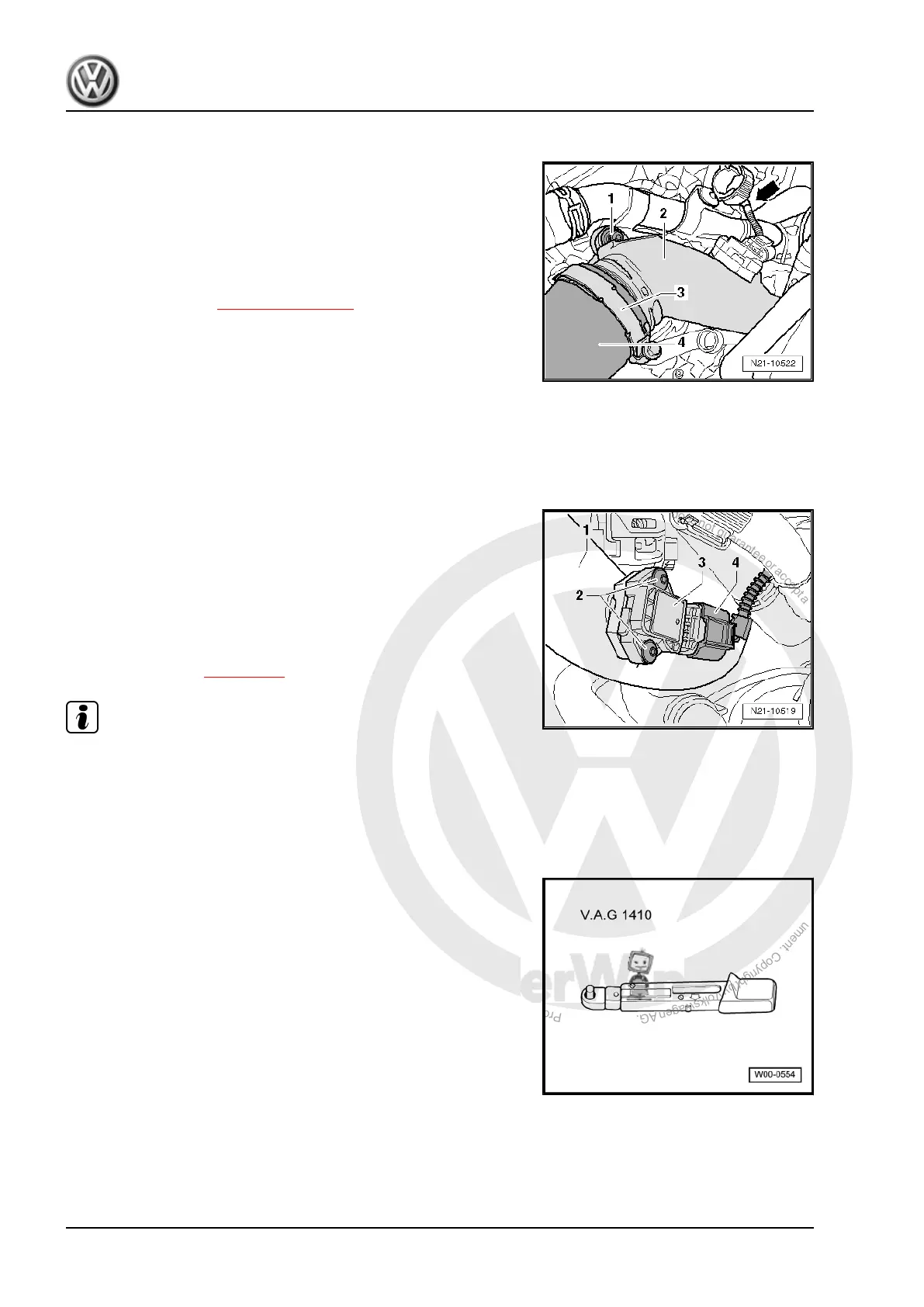

1.5 Removing and installing pressure pipe
Removing
– Detach connector from charge pressure sender -G31- .
– Release clip -3- from charge air hose -4-.
– Loosen bolt -1- of pressure pipe -2-.
– Unclip water hose from pressure pipe.
– Release lower clip ⇒ Item 8 (page 185) from socket to throttle
valve module -J338- .
– Remove pressure pipe.
Installing
– Installation is performed in the reverse sequence.
1.6 Removing and installing charge pres‐
sure sender -G31-
Removing
– Disconnect electrical connector -4- from charge pressure
sender -G31- .
– Unscrew bolts -2- and pull charge pressure sender -G31- /
-3- out of air duct -1-.
Installing
Installation is carried out in the reverse order. When installing,
note the following:
• Specified torque ⇒ page 184 .
Note
Renew O-ring.
1.7 Removing and installing charge air cool‐
er
Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1410-
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
186 Rep. gr.21 - Turbocharging/supercharging
