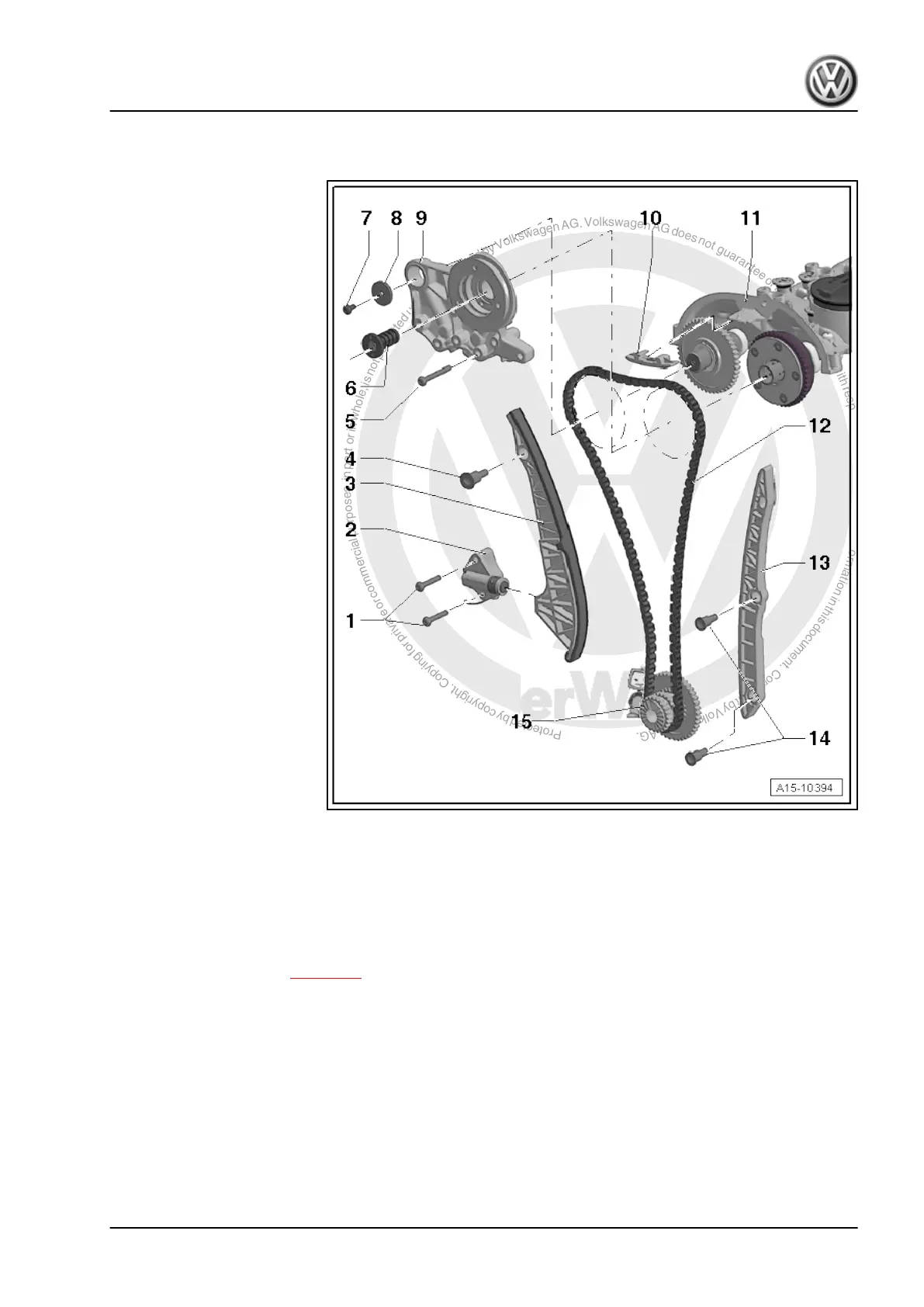

2.6 Camshaft timing chain - exploded view
1 - Bolt
❑ 9 Nm
2 - Chain tensioner
❑ Is spring-loaded
❑ Before removing, lock in
place using locking pin -
T40011-
3 - Tensioning rail for timing
chain
4 - Guide pins
❑ 20 Nm
5 - Bolt
❑ 9 Nm
6 - Regulating valve
❑ Left-hand thread.
❑ 35 Nm
❑ Depending on model,
remove using removal
tool -T10352- or remov‐
al tool -T10352/1- .
7 - Bolt
❑ Renew.
❑ 20 Nm + 90° further
8 - Washer
9 - Bearing saddle
10 - Guide rail for camshaft tim‐
ing chain
11 - Camshaft housing
12 - Camshaft timing chain
❑ Before removing, mark running direction with paint.
13 - Guide rail for camshaft timing chain
14 - Guide pins
❑ 20 Nm
15 - Chain sprocket
❑ Crankshaft
❑ Installation position ⇒ page 76 .
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
2. Chain drive 75
