❑ Removing and installing ⇒ page 217 .
15 - Intake manifold support
16 - Bolt for intake manifold support
❑ 23 Nm
17 - Nut for intake manifold support
❑ 10 Nm
18 - Bolts for throttle valve module -J338-
❑ 10 Nm
19 - Throttle valve module -J338- , throttle valve drive for electric throttle operation -G186-
❑ Throttle valve drive angle sender 1 for electric throttle -G187- and throttle valve drive angle sender 2 for
electric throttle -G188-
❑ After removing, installing or renewing throttle valve module -J338- it must be re-adapted to engine control
unit -J623- . See „Guided functions“.
20 - Seal
❑ Renew.

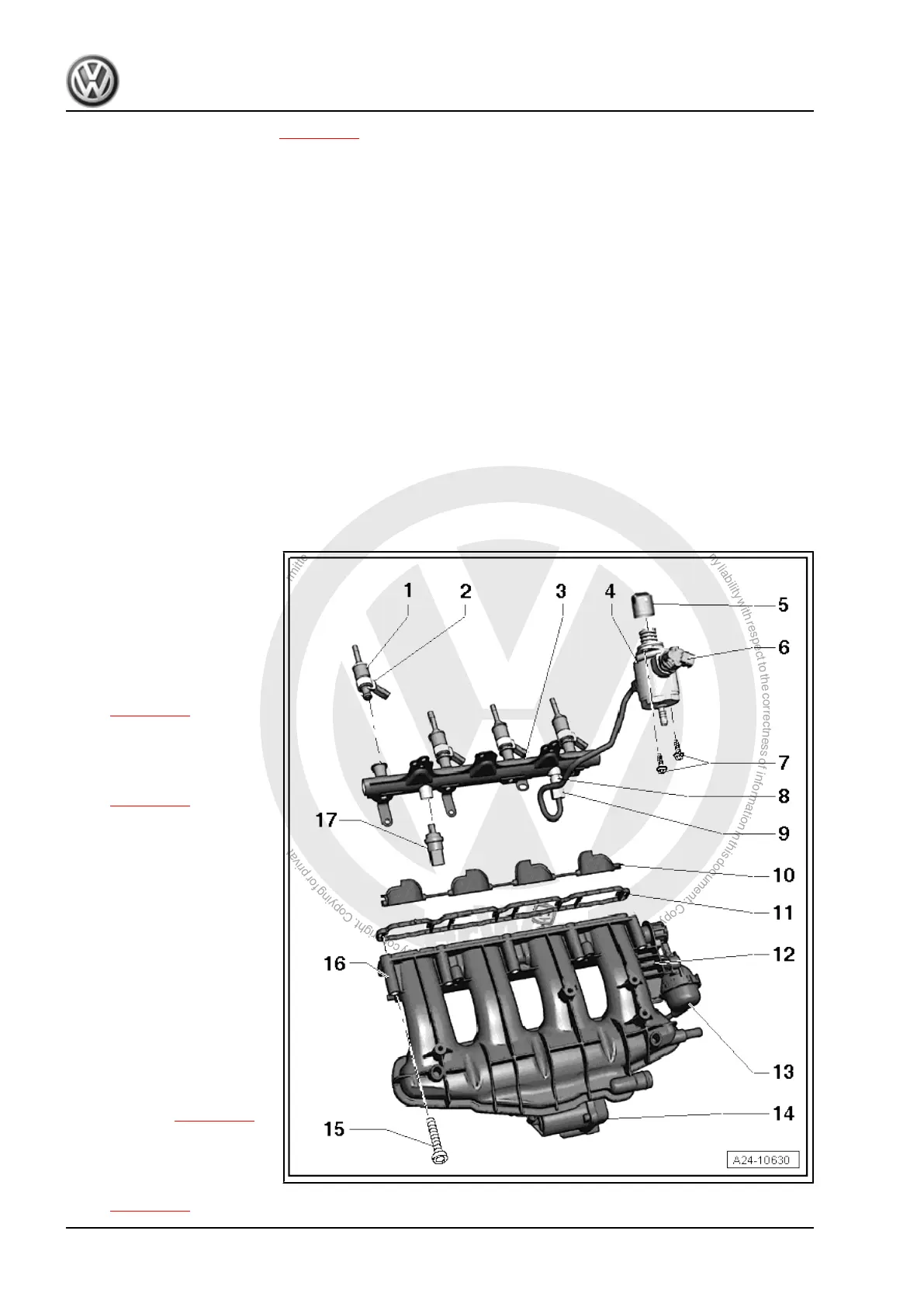

2.7 Assembly overview - fuel rail
1 - Injector
❑ With combustion cham‐
ber ring seal (Teflon ring
seal), always renew
❑ Renew O-rings
❑ Check installation loca‐
tion is correct
❑ Removing and installing
⇒ page 217 .
2 - Support ring
3 - Fuel rail
❑ Removing and installing
⇒ page 213 .
4 - High-pressure pump
❑ With fuel pressure regu‐
lating valve -N276- .
❑ Fuel tank contains elec‐
tric fuel pump which
pumps fuel to mechani‐
cal high-pressure pump.
❑ When installing the
high-pressure pump, it
is essential to ensure
that no dirt enters the
fuel system.
❑ The fuel system must
not be under pressure
when installing the high-
pressure pump; proce‐
dure for reducing fuel
pressure ⇒ page 161
❑ Fuel lines must be free
of tension when instal‐
led.
❑ Removing and installing
⇒ page 226 .
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
212 Rep. gr.24 - Mixture preparation - injection
