Test procedure
– Pull out dipstick, wipe off with a clean cloth and insert it again
to stop.
– Pull out dipstick again and read oil level.
Markings on dipstick:
a - Oil is not to be topped up.
b - Oil can be topped up.
c - Oil must be topped up.
Note
The oil level must not be above the max. marking -arrow 1- nor
below the min. marking -arrow 2-.

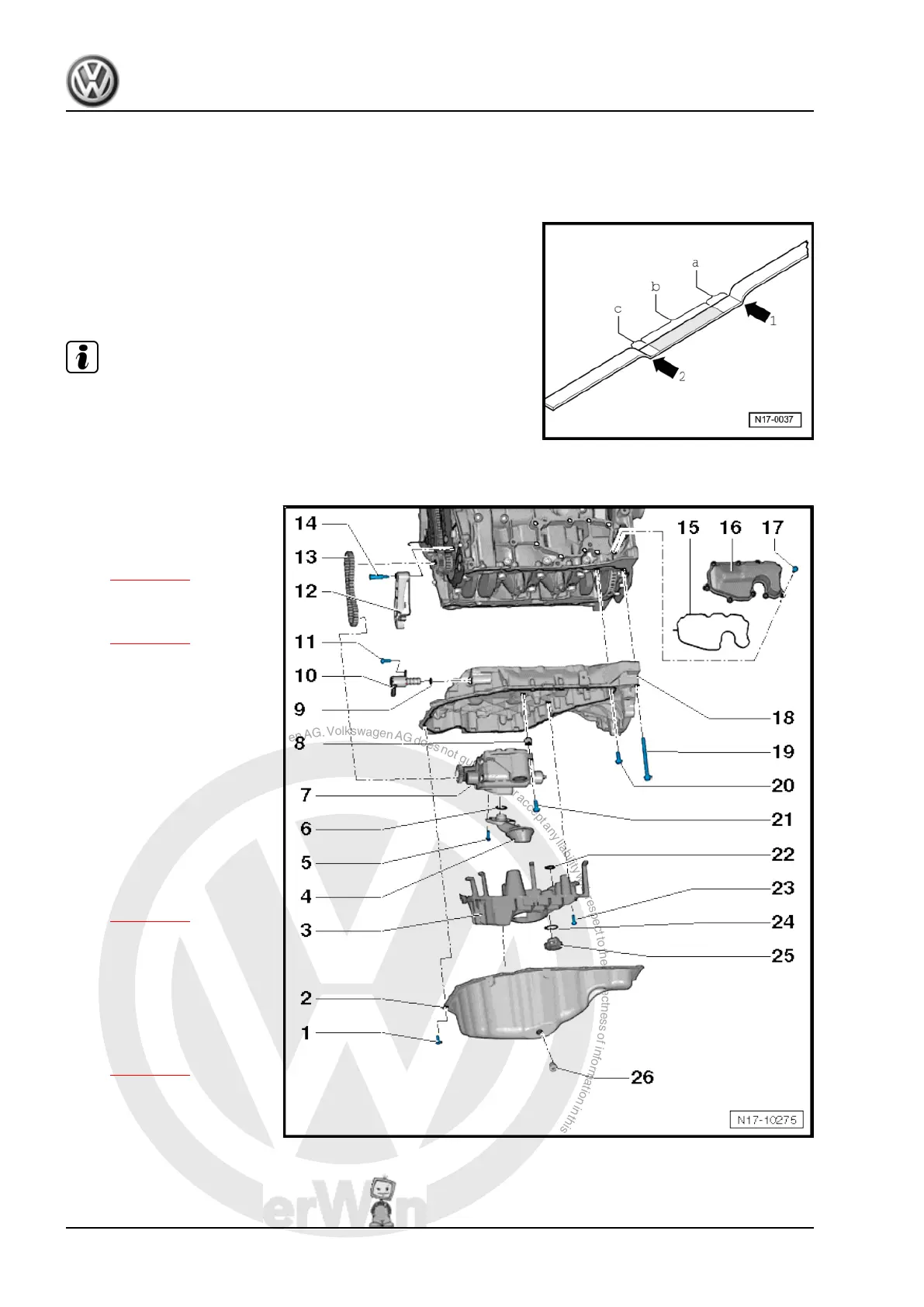

1.3 Assembly overview - sump, oil pump
1 - Bolt
❑ Renew.
❑ Tightening sequence
⇒ page 117 .
2 - Lower part of sump
❑ Removing and installing
⇒ page 120 .
3 - Baffle plate
❑ Renew.
4 - Suction line
❑ Clean strainer if soiled.
5 - Bolt
❑ 9 Nm
6 - O-ring
❑ Renew.
❑ Moisten with oil.
7 - Oil pump
❑ Removing and installing
⇒ page 119 .
8 - Centring sleeve
9 - O-ring
❑ Renew.
10 - Oil pressure control valve
-N428-
❑ Removing and installing
⇒ page 128 .
11 - Bolt
❑ 9 Nm
12 - Chain tensioner
13 - Drive chain for oil pump
❑ Mark direction of rotation before removing.
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
116 Rep. gr.17 - Lubrication
