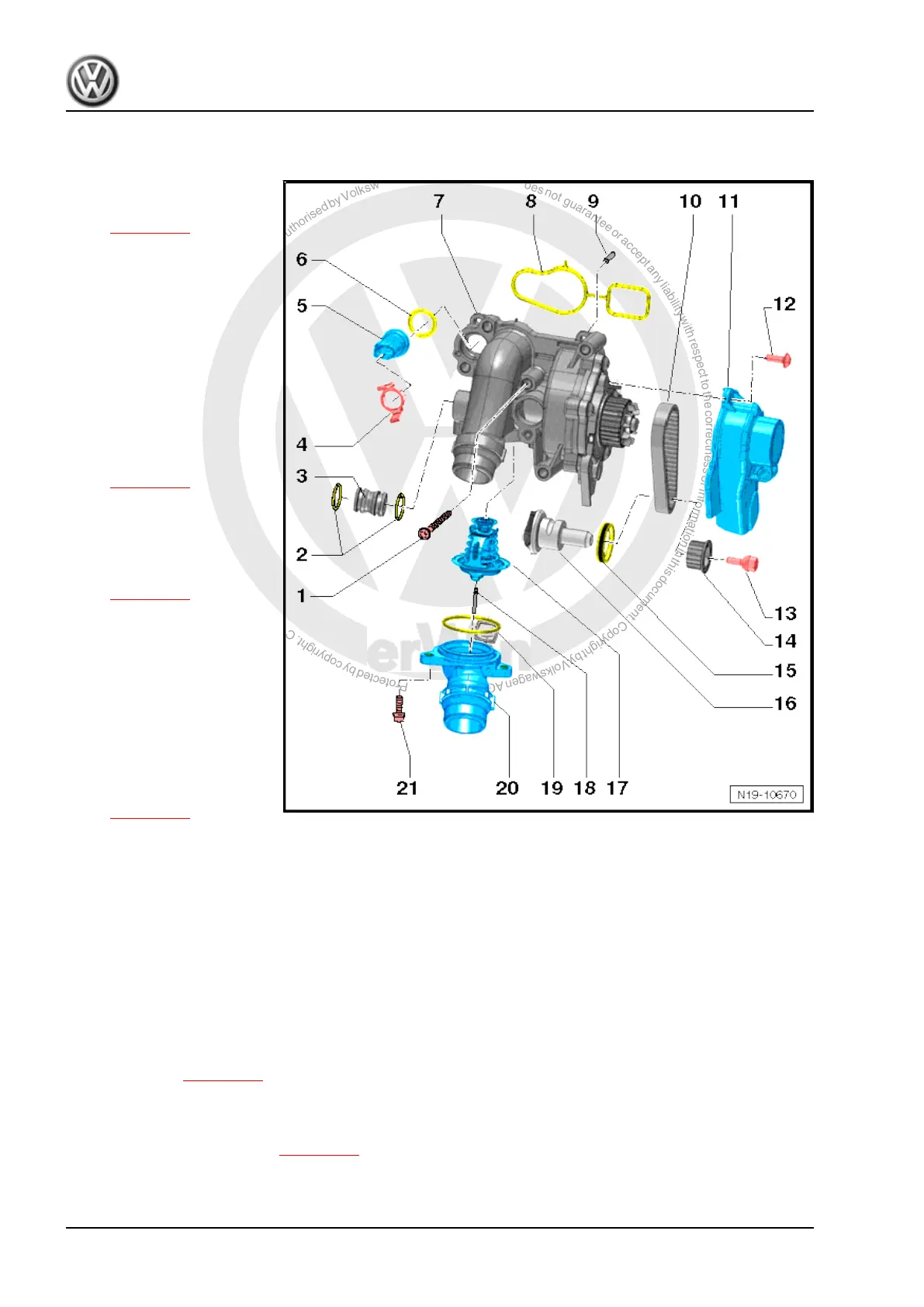

3.3 Coolant pump and thermostat - exploded view
1 - Bolt
❑ Tightening sequence
⇒ page 145 .
2 - O-rings
❑ Renew.
3 - Connection
4 - Retaining clip
❑ Only for inserted ver‐
sion.
❑ Check for secure seat‐
ing.
5 - Coolant temperature send‐
er -G62-
❑ Removing and installing
⇒ page 145 .
6 - O-ring
❑ Renew.
7 - Coolant pump
❑ Removing and installing
⇒ page 149 .
❑ New coolant pump: re‐
move protective cap
8 - Seal
❑ Renew.
9 - Centralising pin
❑ Qty. 2.
10 - Toothed belt
❑ For coolant pump.
❑ Removing and installing
⇒ page 146 .
11 - Toothed belt guard
12 - Bolt
❑ 9 Nm
13 - Bolt
❑ Left-hand thread.
❑ Renew.
❑ 10 Nm + 90° further
14 - Toothed belt drive sprocket
❑ Note installation position.
15 - Oil seal
❑ Renewing ⇒ page 148 .
16 - Balancer shaft
17 - Thermostat
❑ Removing and installing ⇒ page 151 .
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
144 Rep. gr.19 - Cooling
