3 Fuel tank
Assembly overview - fuel tank ⇒ page 167 .
Removing and installing fuel tank ⇒ page 169 .
Removing and installing fuel delivery unit ⇒ page 172 .
Removing and installing fuel gauge sender -G- ⇒ page 173 .

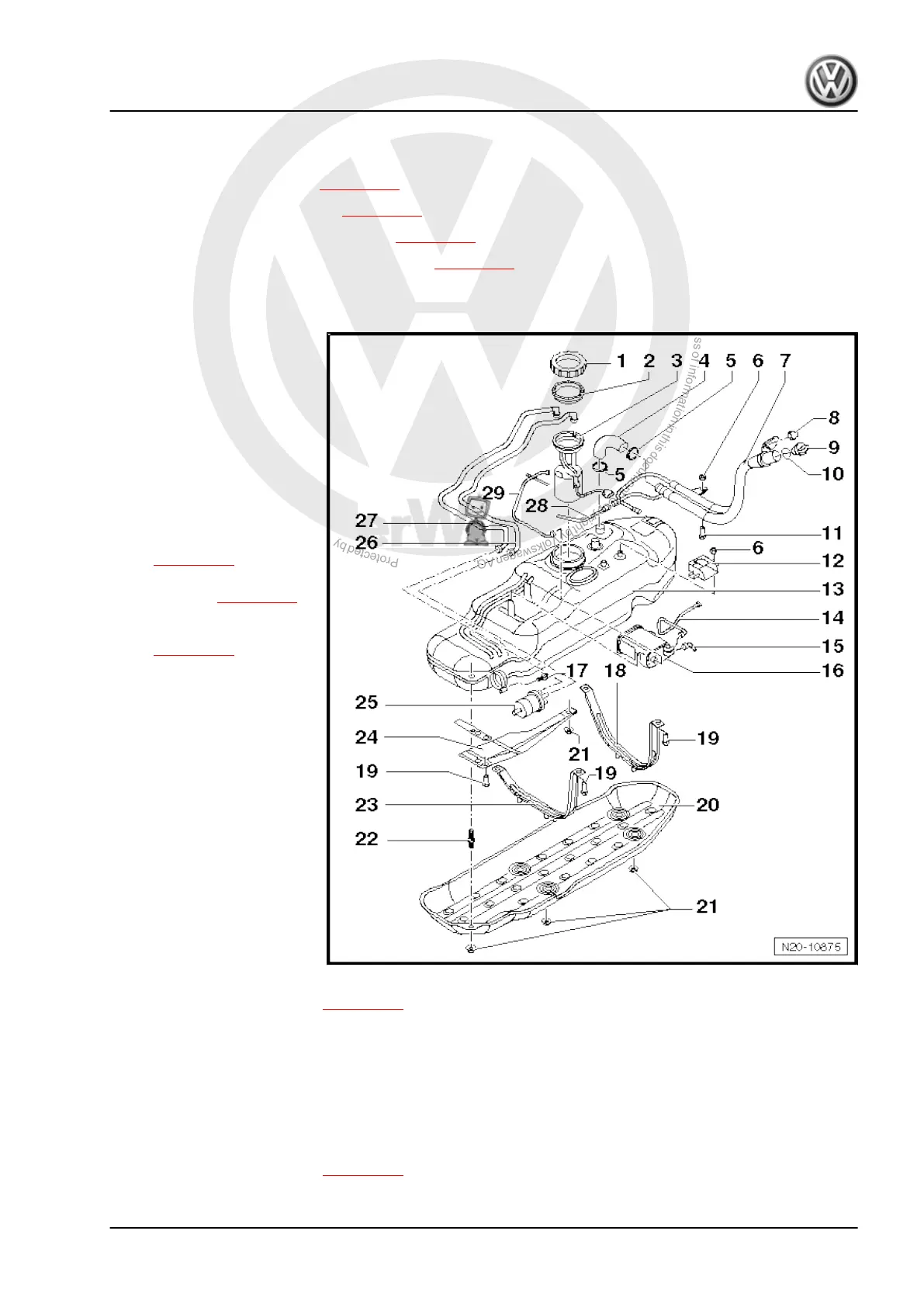

3.1 Assembly overview - fuel tank
1 - Union nut, 110 Nm
❑ Remove and install us‐
ing union nut tool
-3217- .
2 - Seal
❑ Renew if damaged.
❑ Moisten with fuel when
installing
3 - Fuel delivery unit
❑ Note installation posi‐
tion on fuel tank
⇒ page 168 .
❑ To remove, first remove
fuel tank ⇒ page 169 .
❑ Removing and installing
fuel gauge sender
⇒ page 173 .
4 - Connecting hose
5 - Spring-type clip
6 - Spring nut
7 - Filler neck
8 - Weld bolt with cap nut
9 - Filler cap with retaining
strap
10 - Seal
11 - Slotted pan head screw
12 - Control unit for fuel pump
J538
13 - Fuel tank
❑ When removing, sup‐
port using engine and gearbox jack -V.A.G 1383 A- .
❑ Removing and installing ⇒ page 169 .
❑ Drain fuel tank using fuel extractor -VAS 5190-
14 - Breather line
❑ Check for secure seating.
15 - Quick-release coupling
❑ Must audibly engage
16 - Activated charcoal filter
❑ Removing and installing ⇒ page 181 .
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
3. Fuel tank 167
