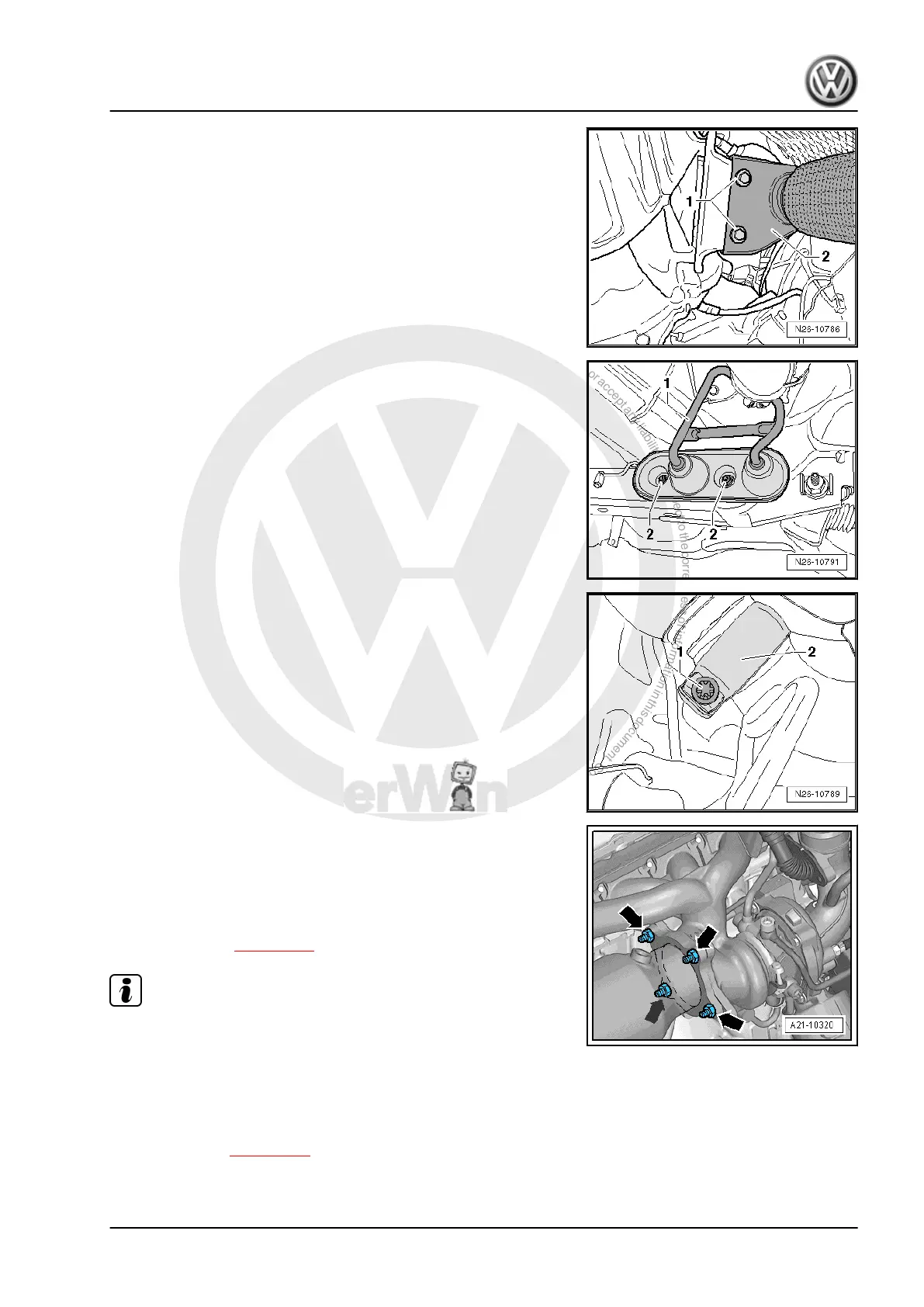

– Unscrew securing bolts -1- for catalytic converter -2-.
– Unscrew bolts -2- from bracket -1-.
– Release clip -2- between catalytic converter and centre si‐
lencer.
– Unscrew nuts -arrows- and remove catalytic converter up‐
wards.
Installing
Installation is carried out in the reverse order. When installing,
note the following:
Specified torques ⇒ page 239 .
Note
Renew seals, gaskets and self-locking nuts.
1.2 Removing and installing exhaust mani‐
fold
Exhaust manifold and turbocharger are one component; remov‐
ing and installing ⇒ page 197 .
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
1. Assembly overview - parts of the exhaust system 241
