❑ Tighten bolted connections evenly.

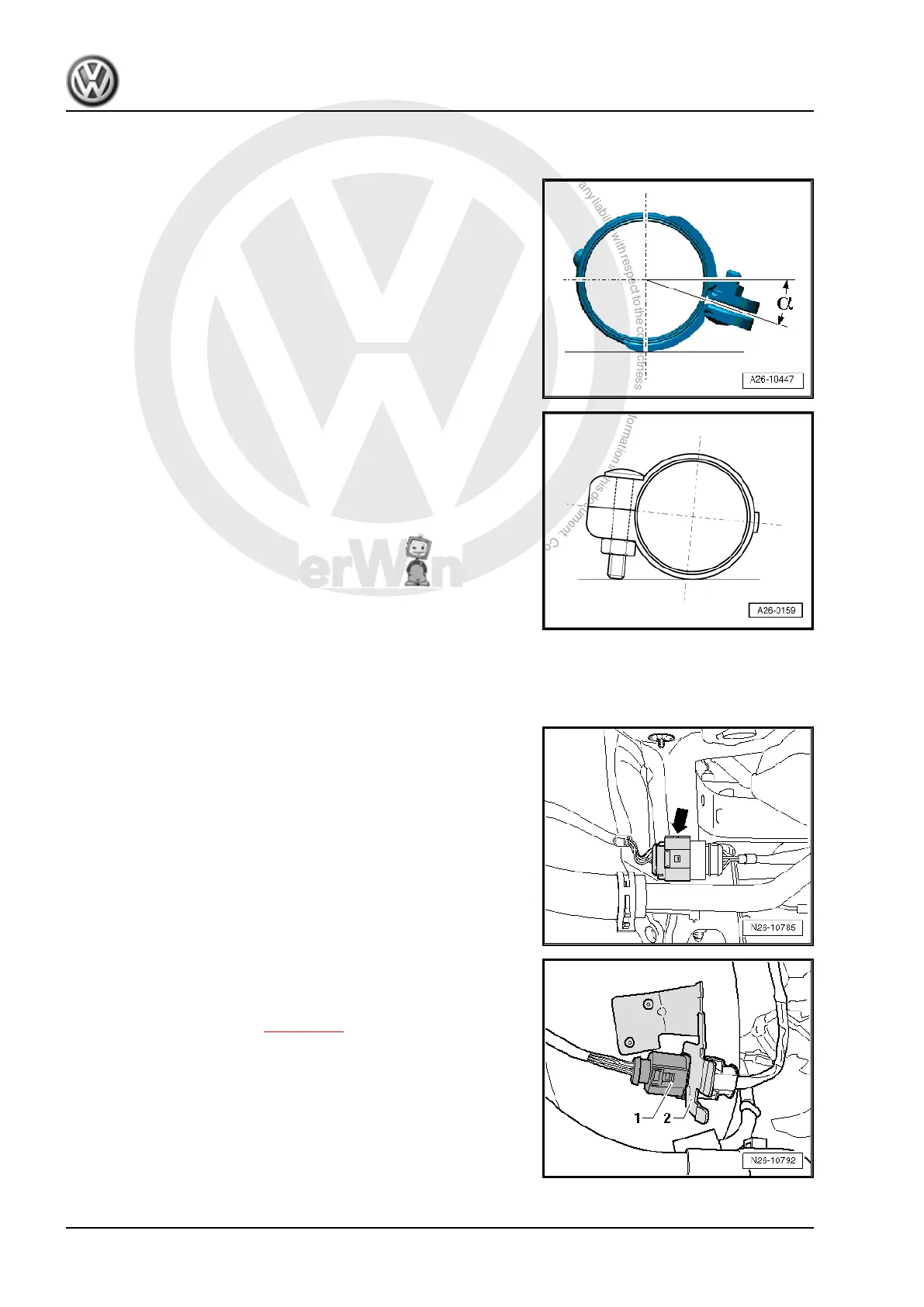

Installation position of front clamp
– Install clamp in illustrated angle position.
• Bolt connections point to the right.
• Nuts point upwards.
• α = approx. 20°
Installation position of rear clamp
– Install clamp so that ends of bolts do not protrude beyond bot‐
tom of clamp.
• Bolt connections point downwards.
1.1 Removing and installing catalytic con‐
verter
Removing
– Detach connector for Lambda probe 1 heater, downstream of
catalytic converter -Z29- -arrow- and lay leads to one side.
– Detach connector -1- for Lambda probe downstream of cata‐
lytic converter -G130- from bracket -2- and lay leads to one
side.
– Remove air filter housing ⇒ page 207 .
– Remove engine guard, if fitted ⇒ Body, front; Rep. gr. 50 ;
Engine guard .
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
240 Rep. gr.26 - Exhaust system
