4 Crankshaft

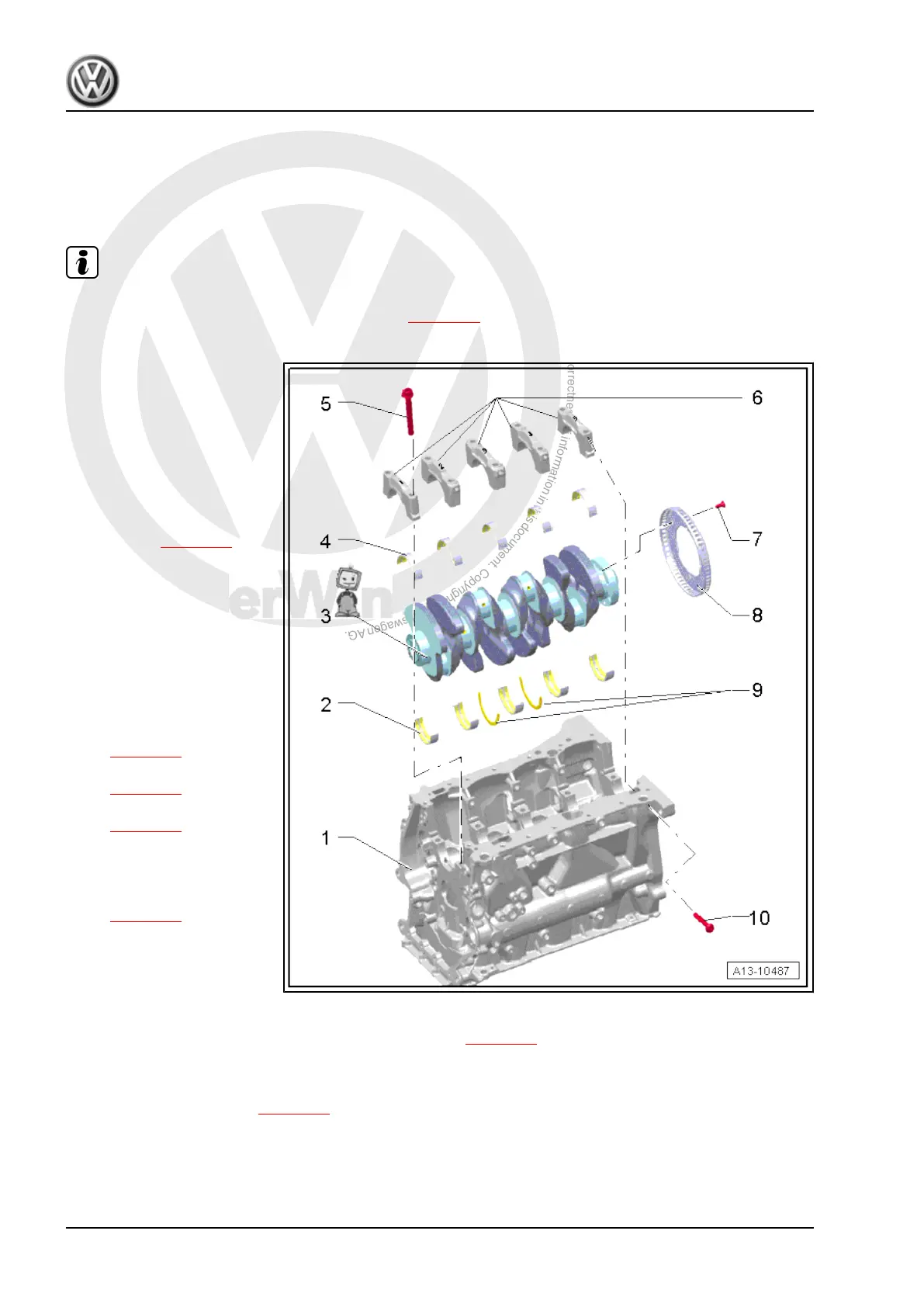

4.1 Assembly overview - crankshaft
Note
Secure engine to repair stand using engine and gearbox support
-VAS 6095- when dismantling/assembling engine ⇒ page 13 .
1 - Cylinder block
2 - Bearing shell for cylinder
block
❑ With oil groove.
❑ Do not interchange
used bearing shells
(mark).
❑ Marking of crankshaft
bearing shells (classifi‐
cation) ⇒ page 41
3 - Crankshaft
❑ After removing, place it
down so that the sender
wheel -item 5- is not
damaged and the crank‐
shaft does not rest on
the sender wheel
❑ If the crankshaft is re‐
newed, the bearing
shells must be realloca‐
ted to bearing cap
⇒ page 41
❑ Axial clearance
⇒ page 43
❑ Radial clearance
⇒ page 43
❑ Do not rotate crankshaft
when checking radial
clearance.
❑ Crankshaft dimensions
⇒ page 42 .
4 - Bearing shell for bearing
cap
❑ Without oil groove.
❑ Do not interchange
used bearing shells (mark).
❑ Marking of crankshaft bearing shells (classification) ⇒ page 41
5 - Bolt
❑ Renew.
❑ Tightening sequence ⇒ page 41 .
6 - Bearing cap
❑ Bearing cap 1: belt pulley end.
❑ Bearing shell retaining lugs in cylinder block and bearing caps must align.
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
40 Rep. gr.13 - Crankshaft group
