2 Coolant hose schematic diagram

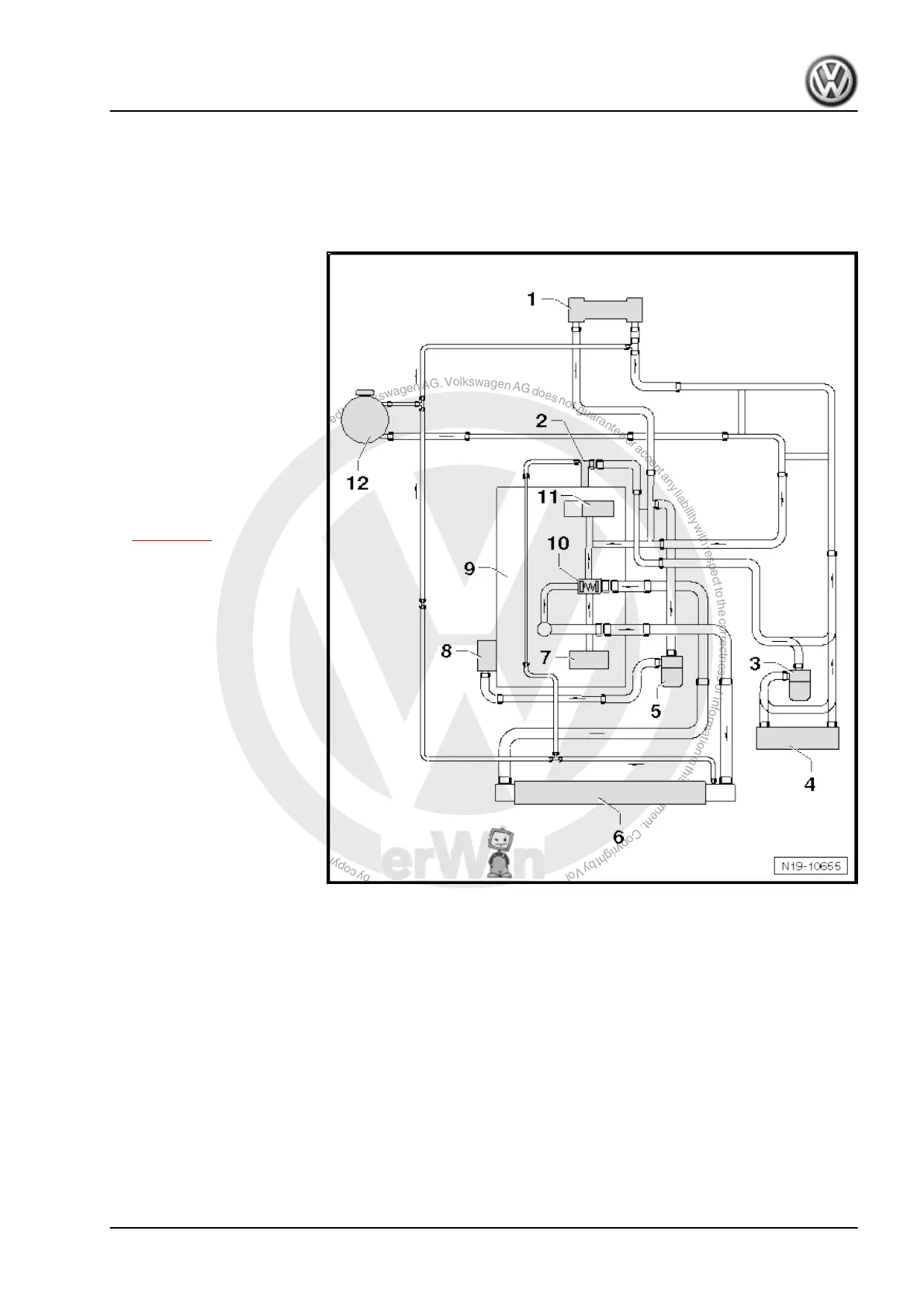

2.1 Coolant hose schematic diagram for vehicles with heat exchanger
1 - Heat exchanger for heater
unit
2 - Cylinder head connection
3 - Circulating pump V 55 (only
for Climatronic)
4 - Auxiliary heater
♦ Depending on equipment.
5 - Circulating pump V 51
6 - Radiator
♦ Renew coolant after replac‐
ing.
♦ Removing and installing
⇒ page 152 .
7 - Engine oil cooler
8 - Turbocharger
9 - Cylinder head
10 - Thermostat
11 - Coolant pump
12 - Expansion tank
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
2. Coolant hose schematic diagram 139
