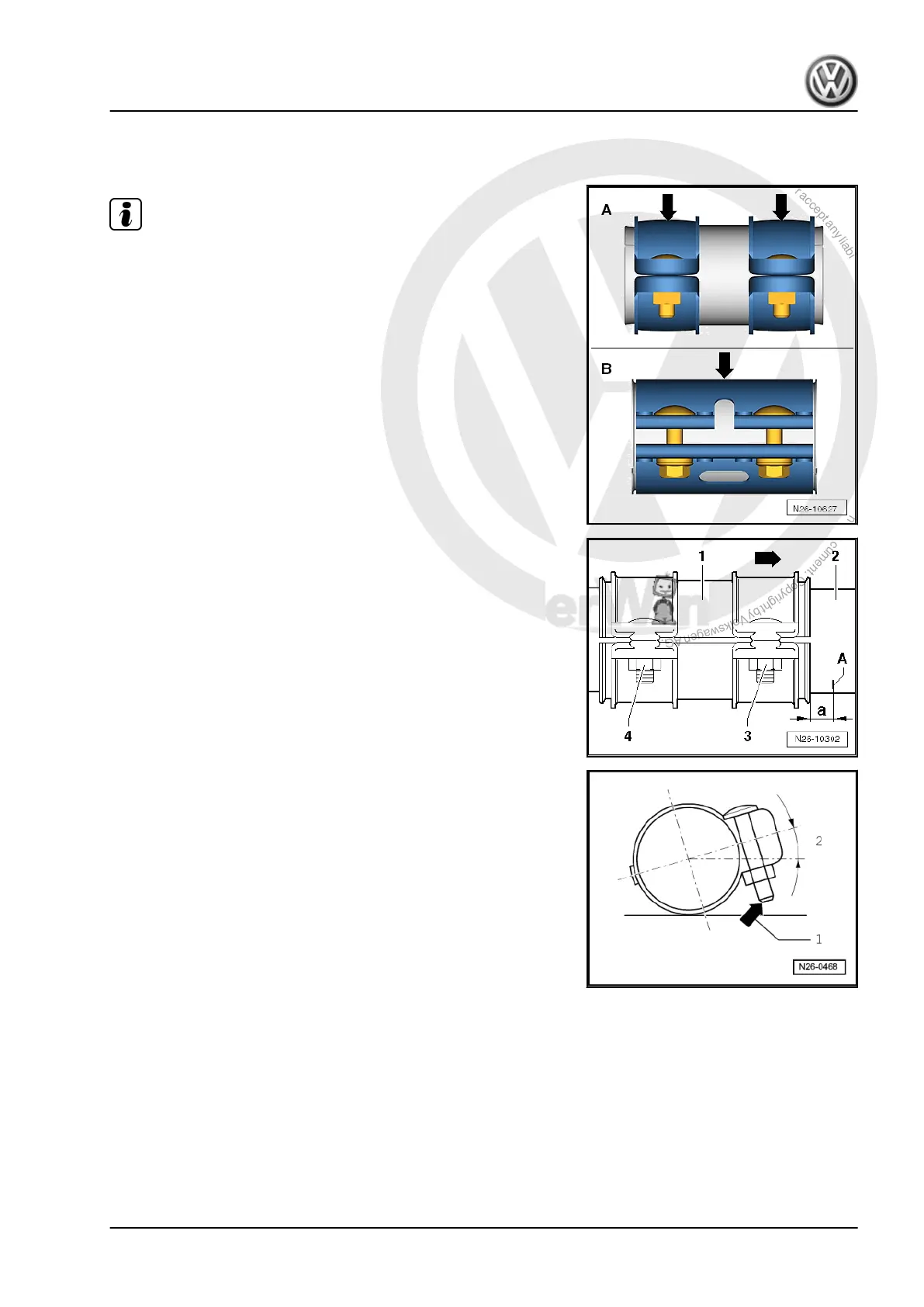

1.7 Installation position and specified torque
of the clamp
Note
Gradual introduction of clamp with continuous clip.
Specified torque and mounting dimensions of clamping sleeve.
Clamp -A- with 2 individual clips.
Specified torque: 25 Nm.
Installation dimensions -a- 5 mm (only for front clamp)
Clamp -B- with continuous clip.
Specified torque: 35 Nm.
Installation dimensions -a- 8.5 mm (only for front clamp)
Installation dimension -a- for vehicles with marking on front ex‐
haust pipe
1 - Clamp
2 - Front exhaust pipe
a - Installation dimension
A - Marking
Installation position of front clamp
– Install clamp so that end of bolt -arrow- does not extend be‐
yond lower edge of clamp.
• Threaded connection faces right
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
1. Assembly overview - parts of the exhaust system 245
