26 – Exhaust system

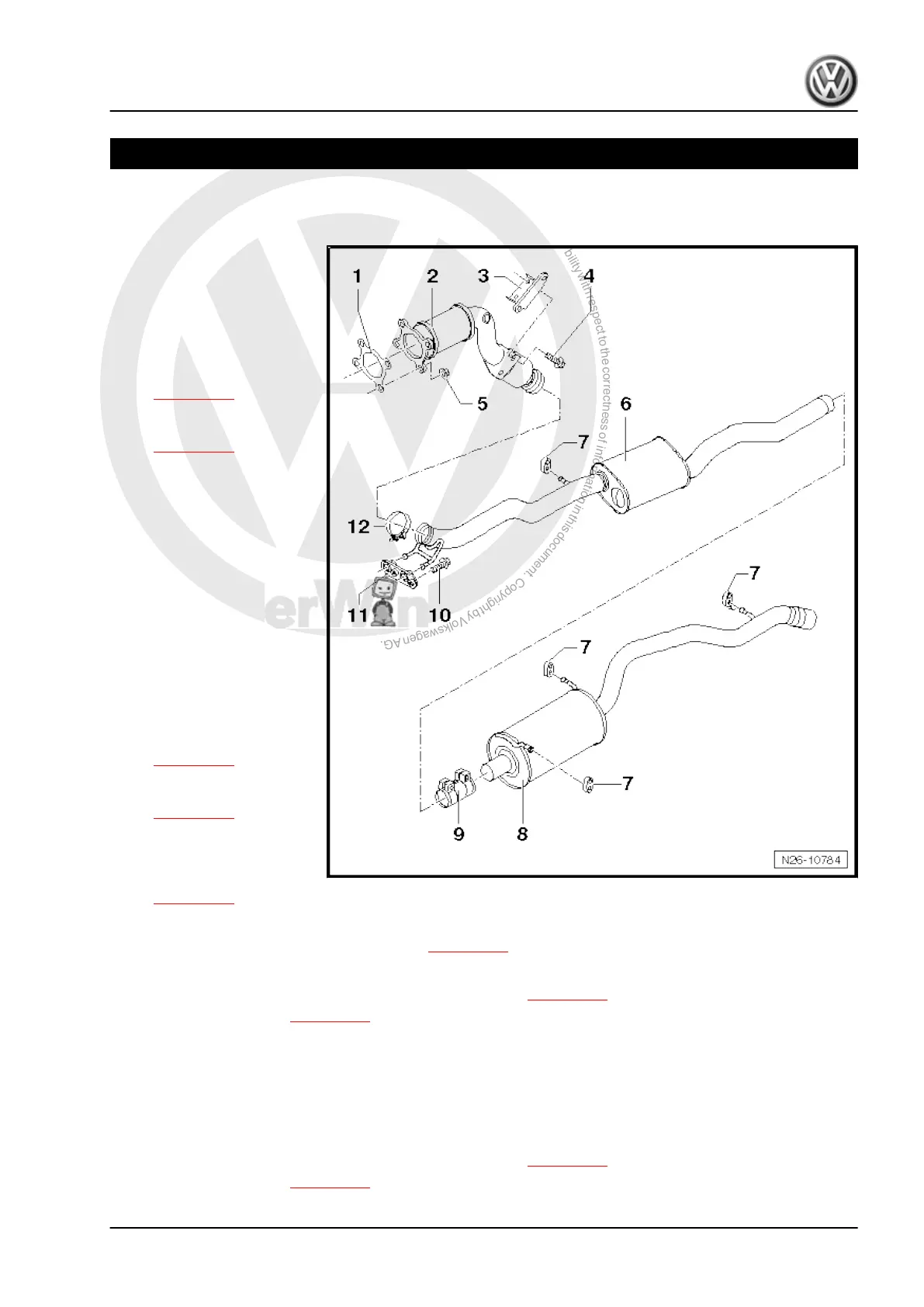

1 Assembly overview - parts of the exhaust system
1 - Seal
❑ Renew.
2 - Catalytic converter
❑ Protect catalytic con‐
verter from damage by
knocks and impact
❑ Removing and installing
⇒ page 240 .
❑ Aligning exhaust sys‐
tem free of tension
⇒ page 243 .
3 - Exhaust pipe bracket
4 - Bolt
❑ 20 Nm
5 - Nut
❑ 40 Nm
❑ Renew.
❑ Coat studs of turbo‐
charger with high-tem‐
perature paste.
❑ High-temperature paste
⇒ Electronic parts cata‐
logue .
6 - Centre silencer
❑ Cutting point
⇒ page 242
❑ Aligning exhaust sys‐
tem free of tension
⇒ page 243 .
7 - Mounting
❑ Renew if damaged.
❑ Check pretension
⇒ page 243
8 - Rear silencer
❑ Aligning exhaust system free of tension ⇒ page 243 .
9 - Rear clamp
❑ Align exhaust system free of tension before tightening ⇒ page 243 .
❑ Installation position ⇒ page 240 .
❑ Tighten bolted connections evenly.
10 - Bolt
❑ 20 Nm
11 - Retainer
12 - Front clamp
❑ Align exhaust system free of tension before tightening ⇒ page 243 .
❑ Installation position ⇒ page 240 .
Amarok 2011 ➤
4-cylinder injection engine (2.0 l direct injection engine, turbocharger) - Edition 02.2011
1. Assembly overview - parts of the exhaust system 239
