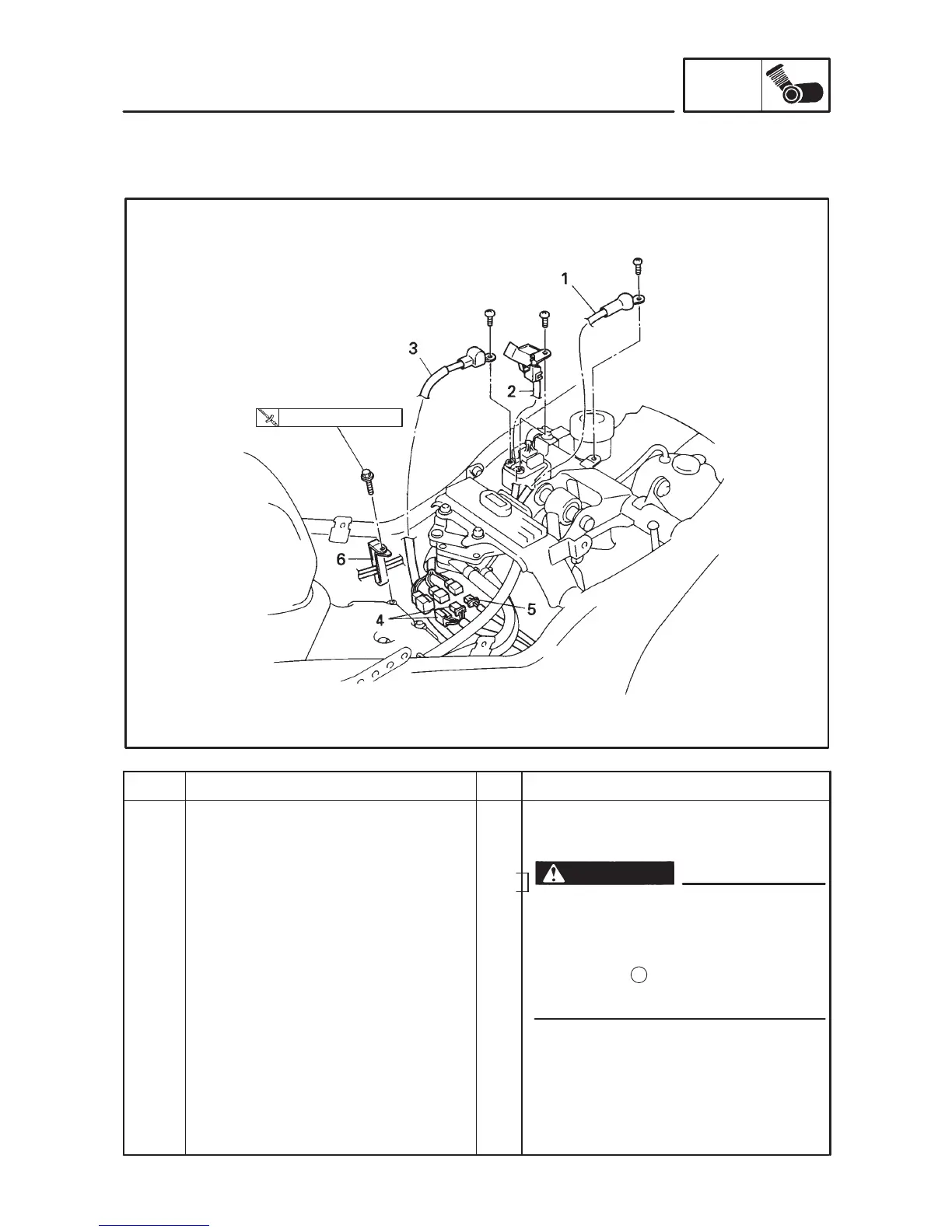

4-1

WARNING

Order

Job name/Part name Q’ty Remarks

Leads disconnect

Side cowling, seat, side cover and fuel

tank.

Battery negative lead

Battery positive lead

Starter motor lead

Startor coil lead/pickup coil lead coupler

Neutral switch lead coupler

Clamp

1/1

Disconnect the parts in the order below.

Refer to “COWLINGS, SEAT, TAIL COV-

ER AND FUEL TANK” in CHAPTER 3.

 Disconnect the negative lead first and

then disconnect the positive lead.

 Immediately after removing the battery

leads, securely cover the terminals with

the covers to prevent the battery

leads from being shorted

10 Nm (1.0 mkg)

Disconnect

For connecting, reverse the disconnection

procedure.

ENGINE ASSEMBLY

ENG

ENGINE OVERHAUL

ENGINE ASSEMBLY

LEADS
