Yamaha TDM850 1996 User Manual

4-40
A.C. MAGNETO AND STARTER WHEEL GEAR
ENG
NOTE:
130 Nm (13.0mkg)
NOTE:
2. Inspect:
 Starter wheel gear
1
(contacting surfaces)
Pitting/Wear/Damage  Replace.

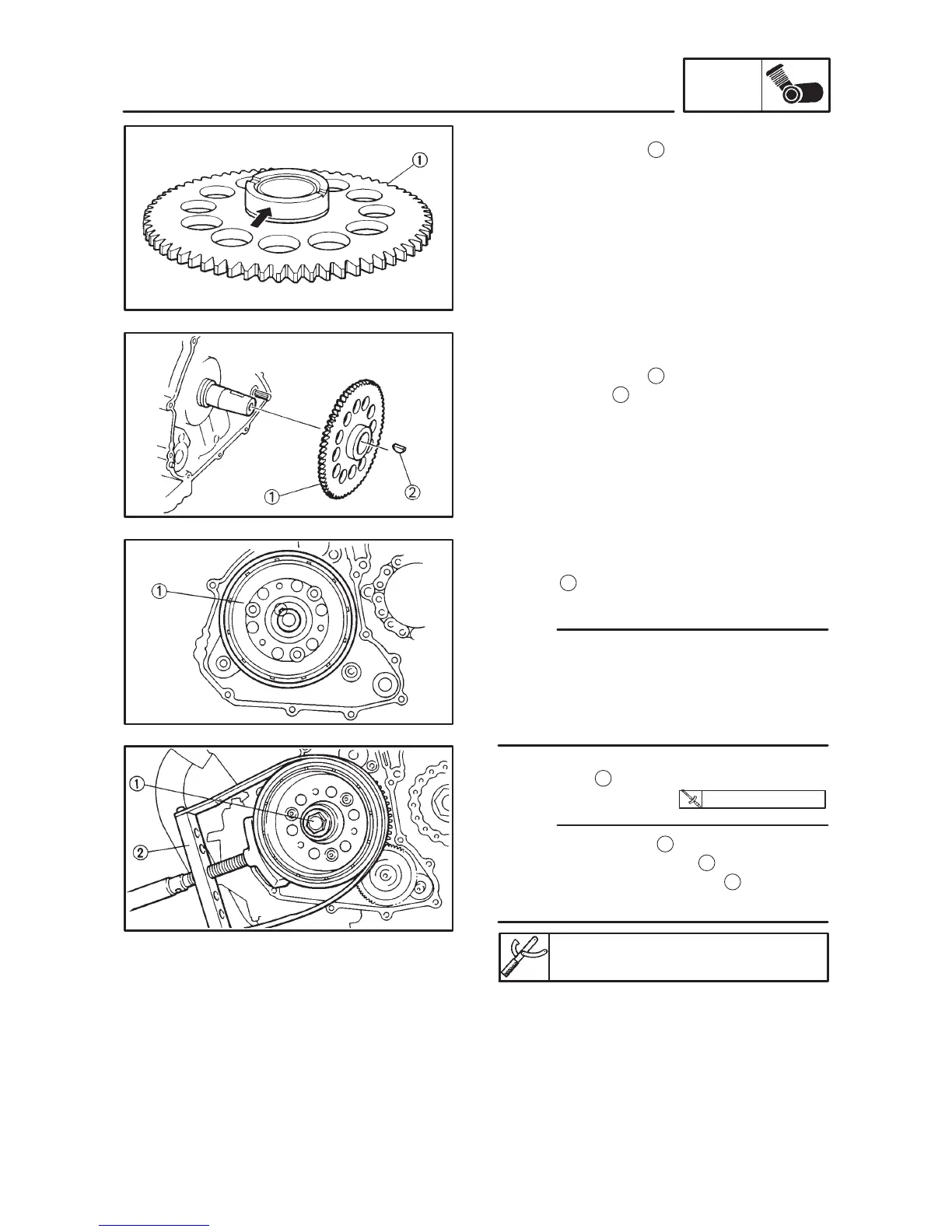

INSTALLATION
1. Install:
 Starter wheel gear
1
 Woodruff key
2
2. Install:
 Plate washer
 Rotor
1
 Washer
 Clean the tapered portions of the crankshaft and
rotor.
 When installing the magneto, make sure the
woodruff key is properly seated in the key way of
the crankshaft.
3. Install:
 Bolt (rotor)
1
 Tighten the bolt (rotor)
1 while holding the mag-
neto with the sheave holder
2.
 Do not allow the sheave holder
2 to touch the
projection on the rotor.
Sheave holder:
90890-01701
