5-4
THERMOSTATIC VALVE
COOL
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
Thermostatic valve assembly
removal
Coolant
Side cowling, seat, side cover and
fuel tank
Air filter case
Radiator assembly
Ground lead
Thermo switch lead coupler
Thermo unit lead
Coolant hose 1
Coolant hose 4
Thermostatic valve assembly
1
1
1
1
1
1
Remove the parts in the order below.
Refer to “COOLANT REPLACEMENT” in
CHAPTER 3.
Refer to “COWLINGS, SEAT, TAIL COVER
AND FUEL TANK” in CHAPTER 3.
Refer to “AIR FILTER CASE” in CHAPTER 3.
Refer to “RADIATOR”.
Disconnect
Disconnect
Disconnect
For installation, reverse the removal
procedure.
10 Nm (1.0 mkg)
THERMOSTATIC VALVE

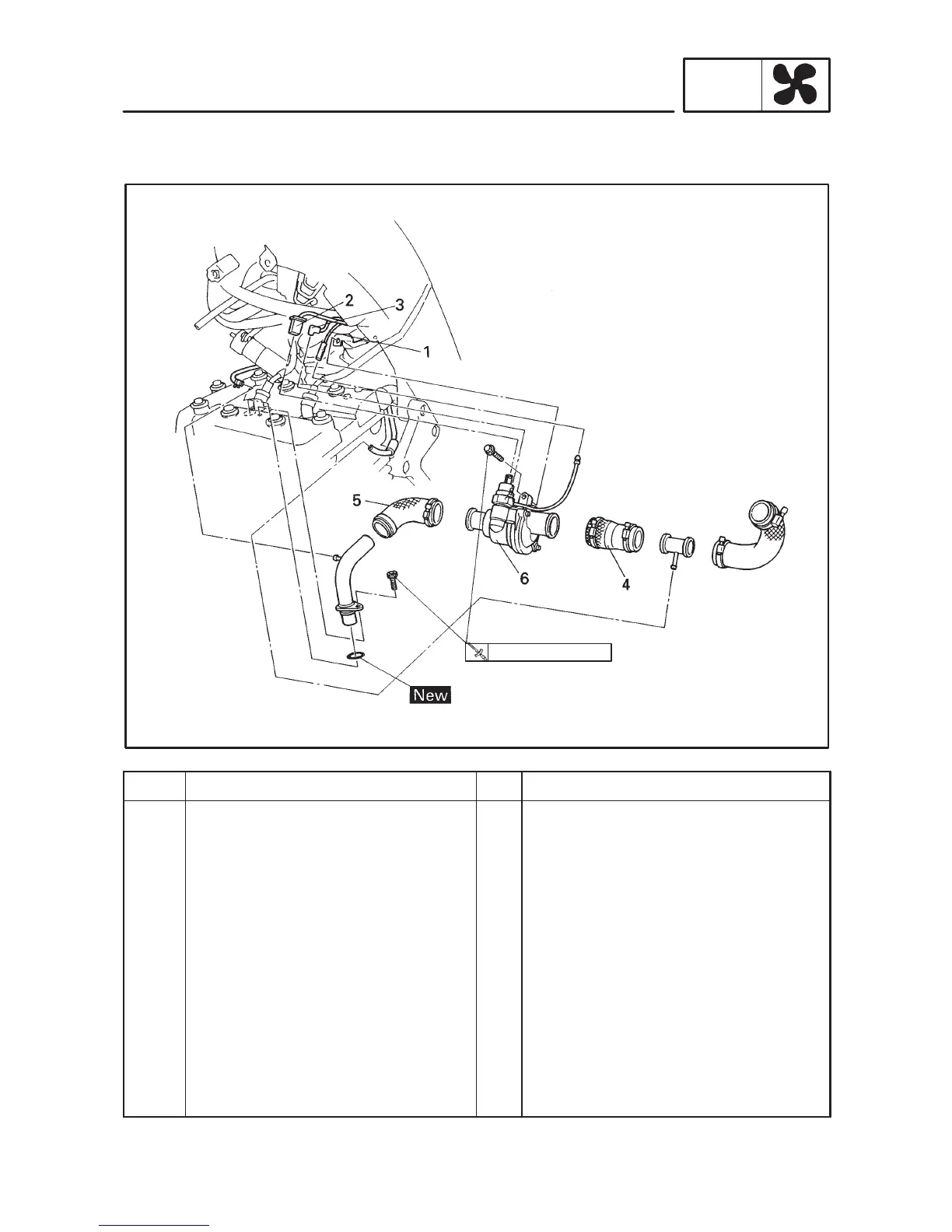

THERMOSTATIC VALVE ASSEMBLY
