Yamaha TDM850 1996 User Manual

7-1
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9

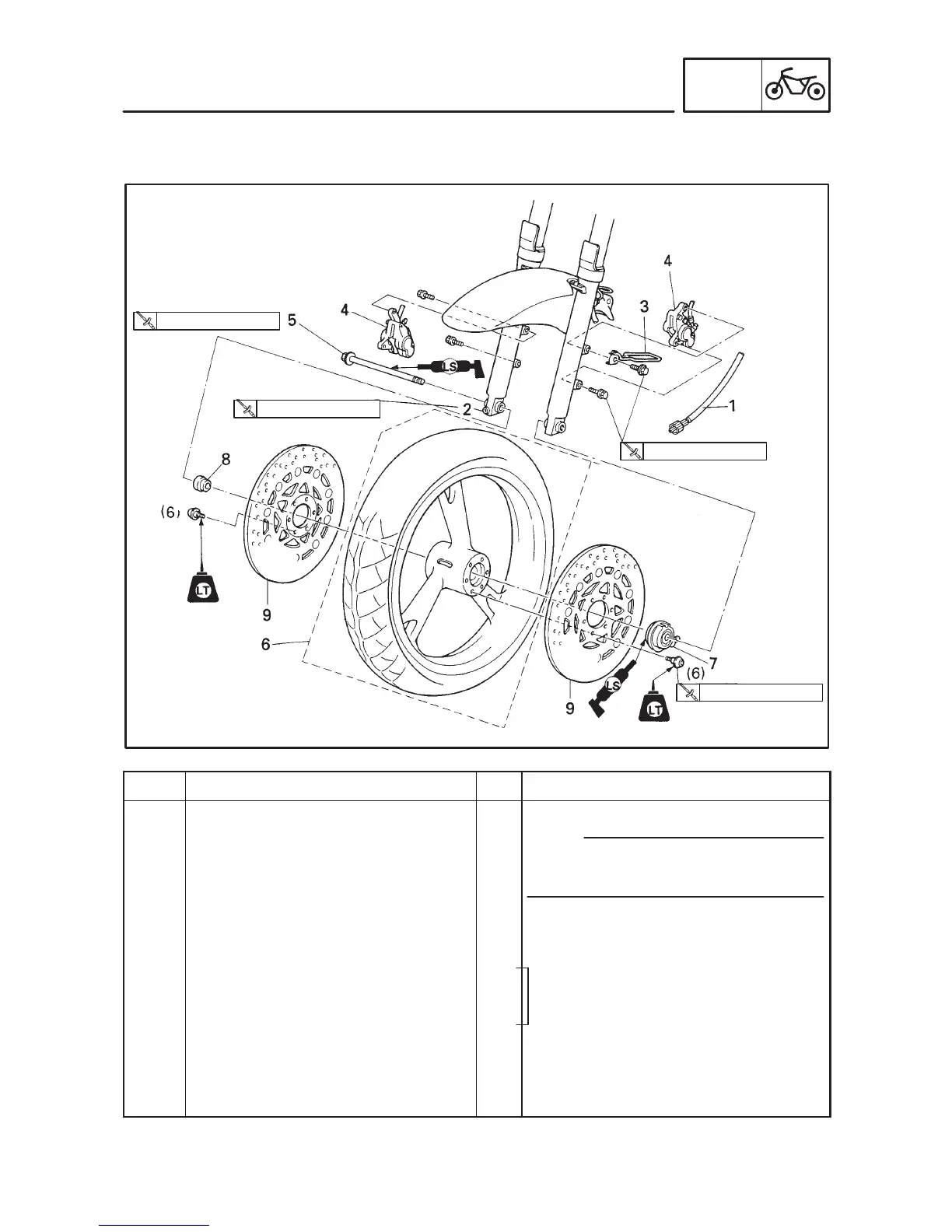

Front wheel and brake disc removal
Speedometer cable
Pinch bolt (front wheel axle)
Cable guide
Brake caliper (left/right)
Front wheel axle
Front wheel
Speedometer gear unit
Collar
Brake disc (left/right)
1
1
1
1/1
1
1
1
1
1/1
Remove the parts in the order below.
Elevate the front wheel by placing a suitable
stand under the engine.
Disconnect
Loosen
For installation, reverse the removal
procedure.
NOTE:
Refer to “INSTALLATION”.
58 Nm (5.8 mkg)
19 Nm (1.9 mkg)
40 Nm (4.0 mkg)
20 Nm (2.0 mkg)
FRONT WHEEL AND BRAKE DISCS
CHAS
CHASSIS
FRONT WHEEL AND BRAKE DISCS
