FRONT AND REAR BRAKE
CHAS
WARNING
WARNING
WARNING

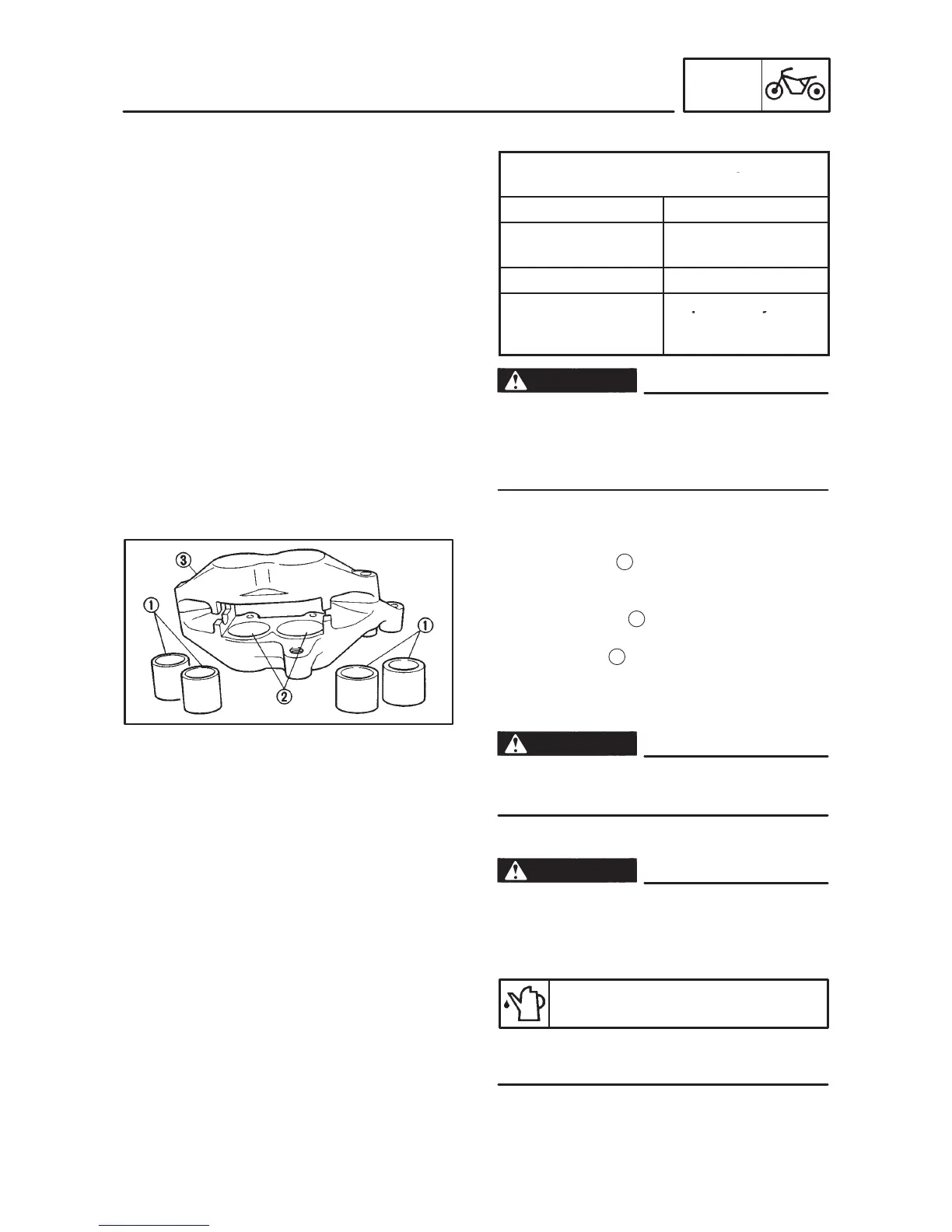

CALIPER INSPECTION AND REPAIR
Recommended brake component
p
replacement schedule:
Brake pads As required
Piston seal,
Every two years
dust seal
Every
two
years
Brake hoses Every two years
Replace only when
Brake fluid
py
brakes are
disassembled.
All internal brake components should be
cleaned in new brake fluid only. Do not use sol-
vents as they will cause seals to swell and dis-
tort.
1. Inspect:
 Caliper piston
1
Scratches/Rust/Wear  Replace caliper as-
sembly.
 Caliper cylinder
2
Wear/Scratches  Replace caliper assembly.
 Caliper body
3
Cracks/Damage  Replace.
 Oil delivery passage (caliper body)
Blow out with compressed air.
Replace the piston seals and dust seals when-
ever the caliper is disassembled.
CALIPER ASSEMBLY
 All internal parts should be cleaned in new
brake fluid only.
 Internal parts should be lubricated with brake
fluid when installed.
Recommended brake fluid:
DOT 4
 Replace the piston seals and dust seals
whenever a caliper is disassembled.
