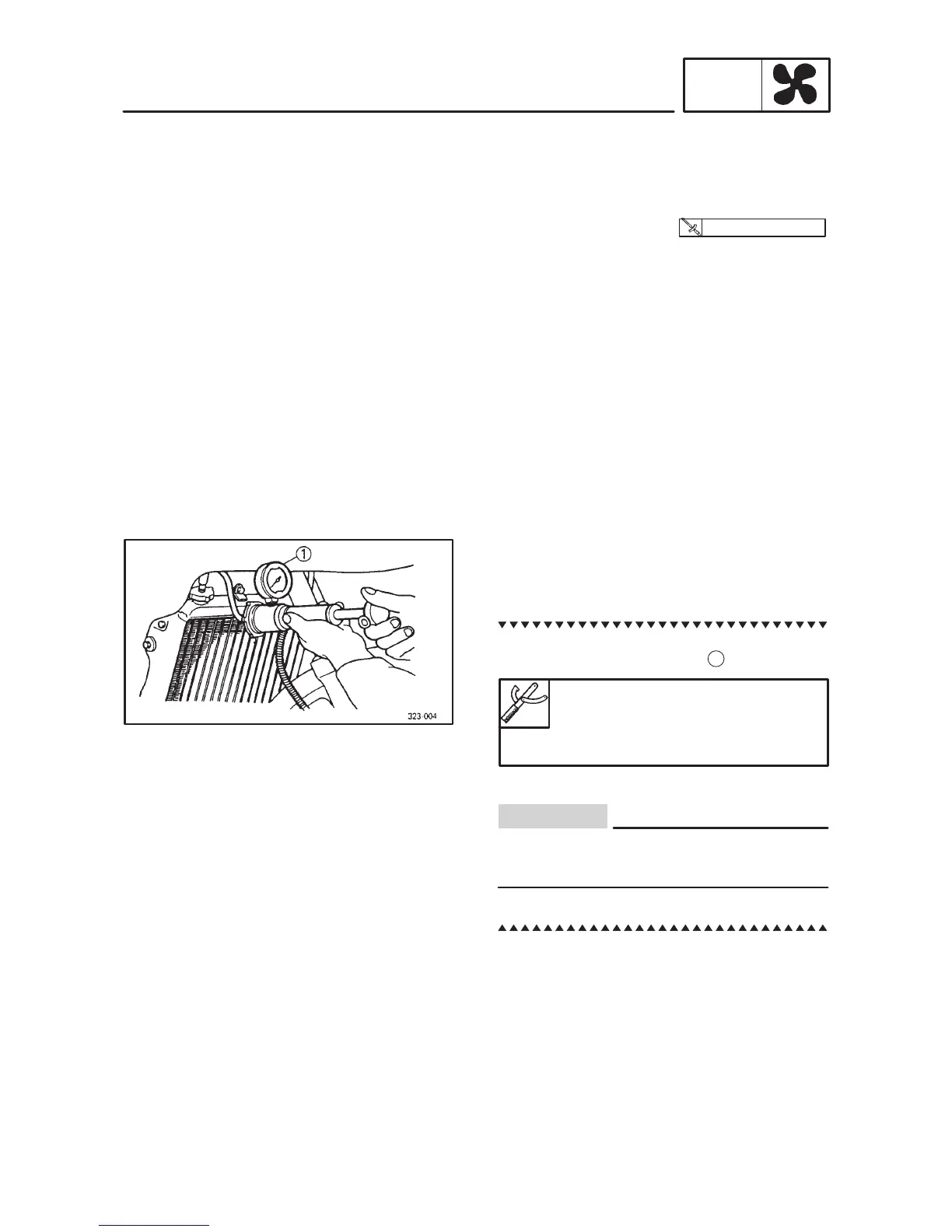

RADIATOR
COOL
7 Nm (0.7 mkg)
CAUTION:
INSTALLATION
Reverse the “REMOVAL” procedure.
Note the following points.
1. Install:
 Radiator assembly
2. Fill:
 Cooling system
Refer to “COOLANT REPLACEMENT” in
CHAPTER 3.
3. Inspect:
 Cooling system
Decrease of pressure (leaks)  Repair as re-
quired.
Inspection steps:
 Attach the radiator cap tester
1 to the radiator.
Radiator cap tester:
90890-01325
Adapter:
90890-01352
 Apply 100 kPa (1.0 kg/cm
2
, 1.0 bar) pressure.
Do not apply pressure that is more than the
specification mentioned above.
 Measure the indicated pressure with the gauge.

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
