7-12
REAR WHEEL, BRAKE DISC AND DRIVEN SPROCKET
CHAS
NOTE:
NOTE:

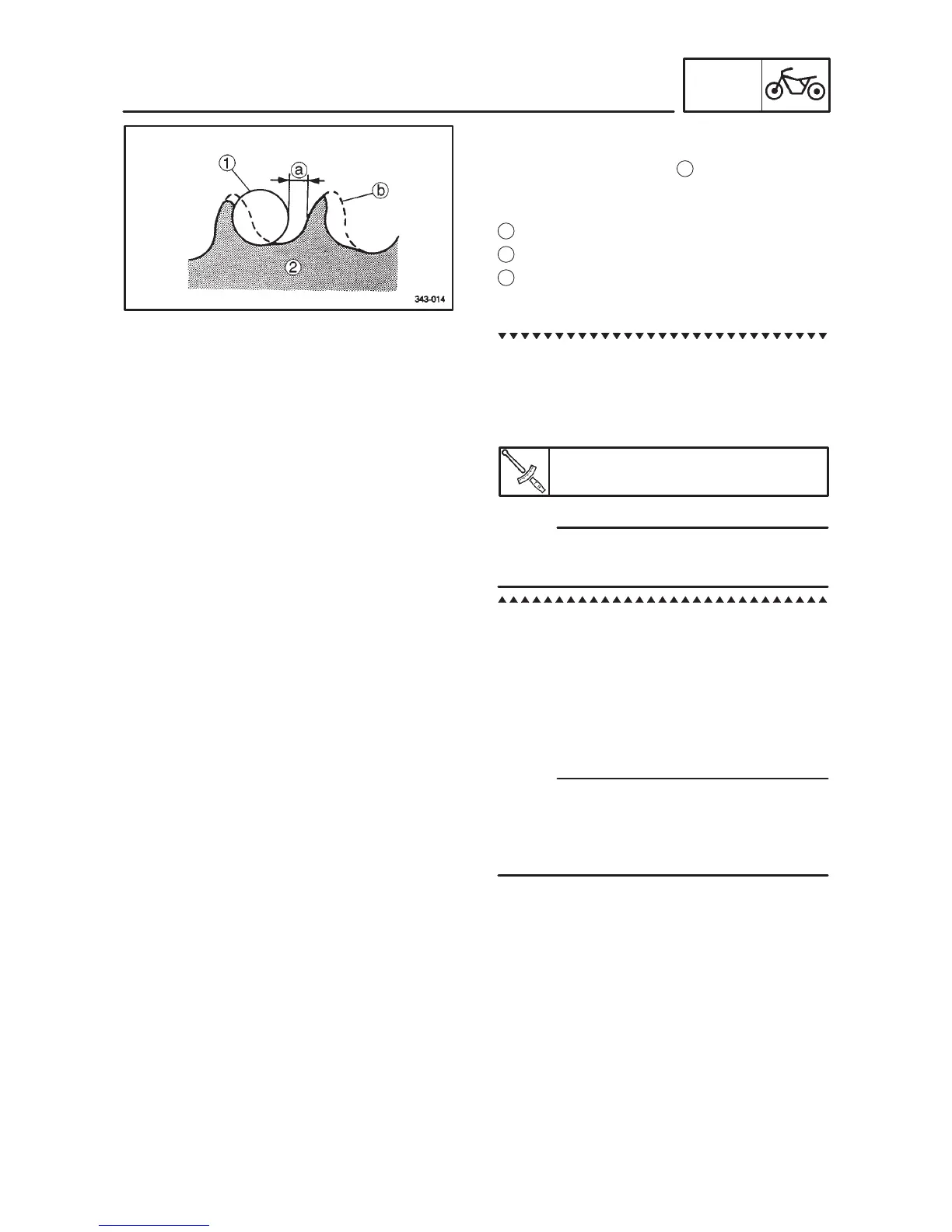

6. Inspect:
 Driven sprocket
More than 1/4 teeth
a
wear  Replace
sprocket.
Bent teeth  Replace sprocket.
b
Correct
1
Roller
2
Sprocket
Driven sprocket replacement steps:
 Remove the self locknuts and driven sprocket.
 Clean the hub, especially on the surfaces in con-
tact with the sprocket, using a clean cloth.
 Install the new driven sprocket.
Driven sprocket:
60 Nm (6.0 mkg)
Tighten the self locknuts in stage, using a criss-
cross pattern.
STATIC WHEEL BALANCE ADJUSTMENT
 After replacing the tire and/or rim, wheel balance
should be adjusted.
 Adjust the wheel balance with brake disc and
hub installed.
1. Adjust:
 Wheel balance
Refer to “FRONT WHEEL AND BRAKE
DISCS”.

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
