SPECIAL TOOLS
GEN
INFO
SPECIAL TOOLS

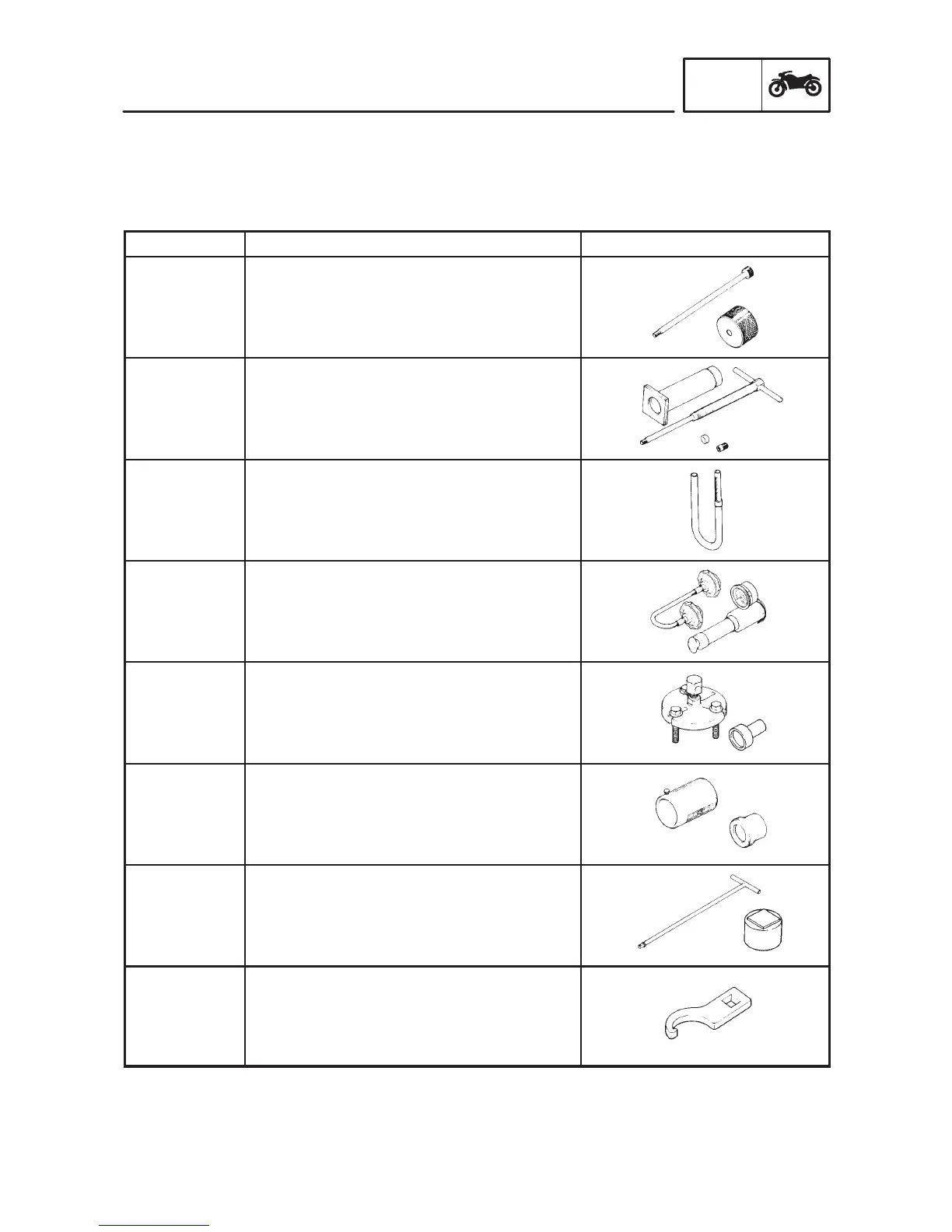

The proper special tools are necessary for complete and accurate tune-up and assembly.
Using the correct special tool will help prevent damage caused by the use of improper tools or improvised
techniques. The shape and part number used for the special tool differ by country, so two types are pro-
vided. Refer to the list provided to avoid errors when placing an order.
Tool No.
Tool name/How to use Illustration
90890-01083
90890-01084
Slide hammer bolt
Weight
These tools are used to remove the
main axle assembly cover.
90890-01304 Piston pin puller
This tool is used to remove the piston
pin.
90890-01312 Fuel level gauge
This gauge is used to measure the fuel
level in the float chamber.
90890-01325
90890-01352
Radiator cap tester
Adapter
This tester is needed for checking the
cooling system.
90890-01362
90890-01382
Flywheel puller
Crankshaft protector
These tools are used to remove the A.C.
magneto.
90890-01367
90890-01374
Fork seal driver weight
Adapter
These tools are used when installing the
fork seal.
90890-01326
90890-01465
T-handle
Damper rod holder
These tools are used to loosen and
tighten the front fork damper rod
holding bolt.
90890-01403 Ring nut wrench
This tool is used to loosen and tighten
the steering ring nut.
