Yamaha TDM850 1996 User Manual

7-33
FRONT FORK
CHAS
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7

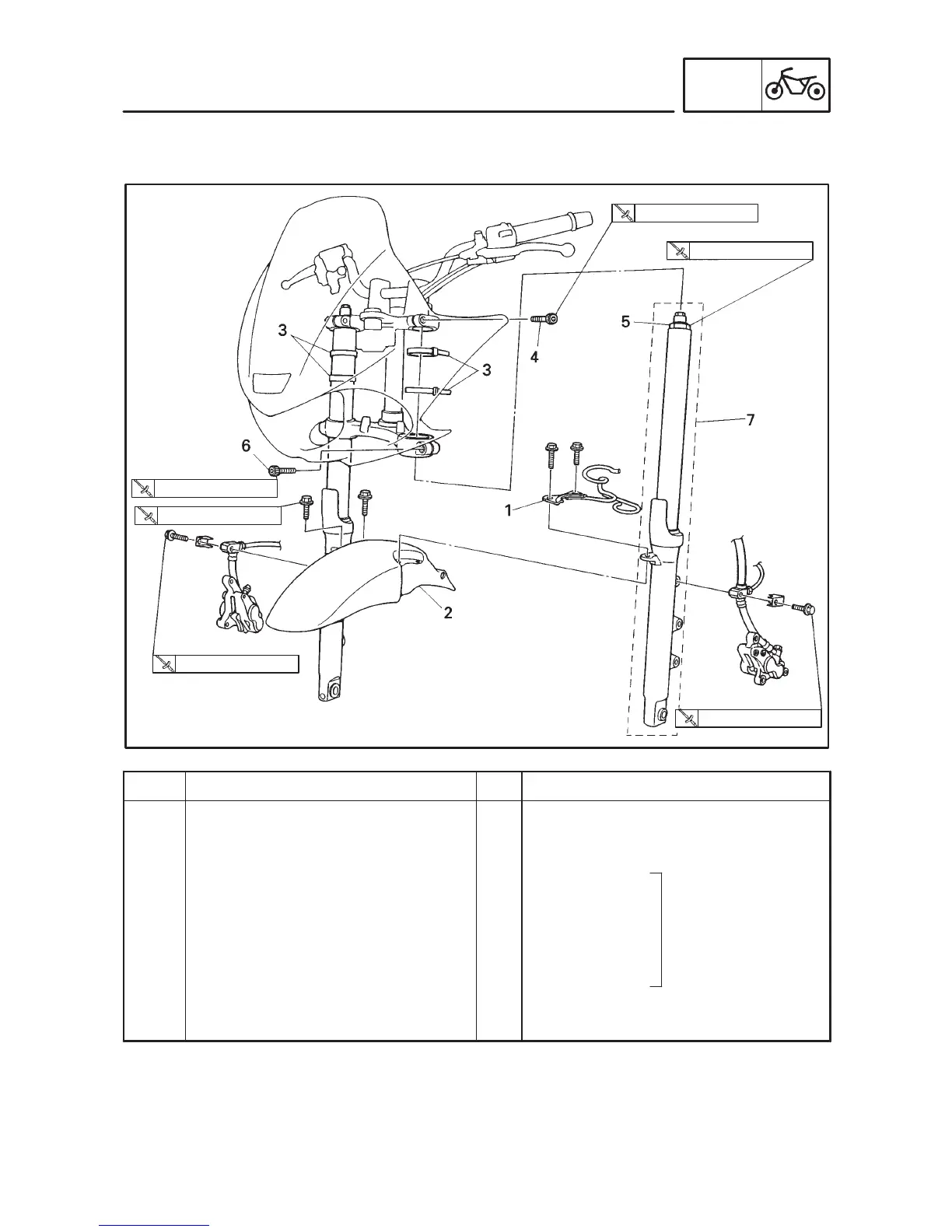

Front fork removal
Front wheel
Cable guide
Front fender
Plastic band
Pinch bolt (upper bracket)
Cap bolt
Pinch bolt (lower bracket)
Front fork (left/right)
1
1
4
2
2
2
1/1
Remove the parts in the order below.
Refer to “FRONT WHEEL AND
BRAKE DISCS”.
Loosen
Loosen
Loosen
Loosen
For installation, reverse the removal
procedure.
Refer to “INSTAL-
LATION”.
24 Nm (2.4 mkg)
23 Nm (2.3 mkg)
10 Nm (1.0 mkg)
9 Nm (0.9 mkg)
30 Nm (3.0 mkg)
10 Nm (1.0 mkg)
FRONT FORK
