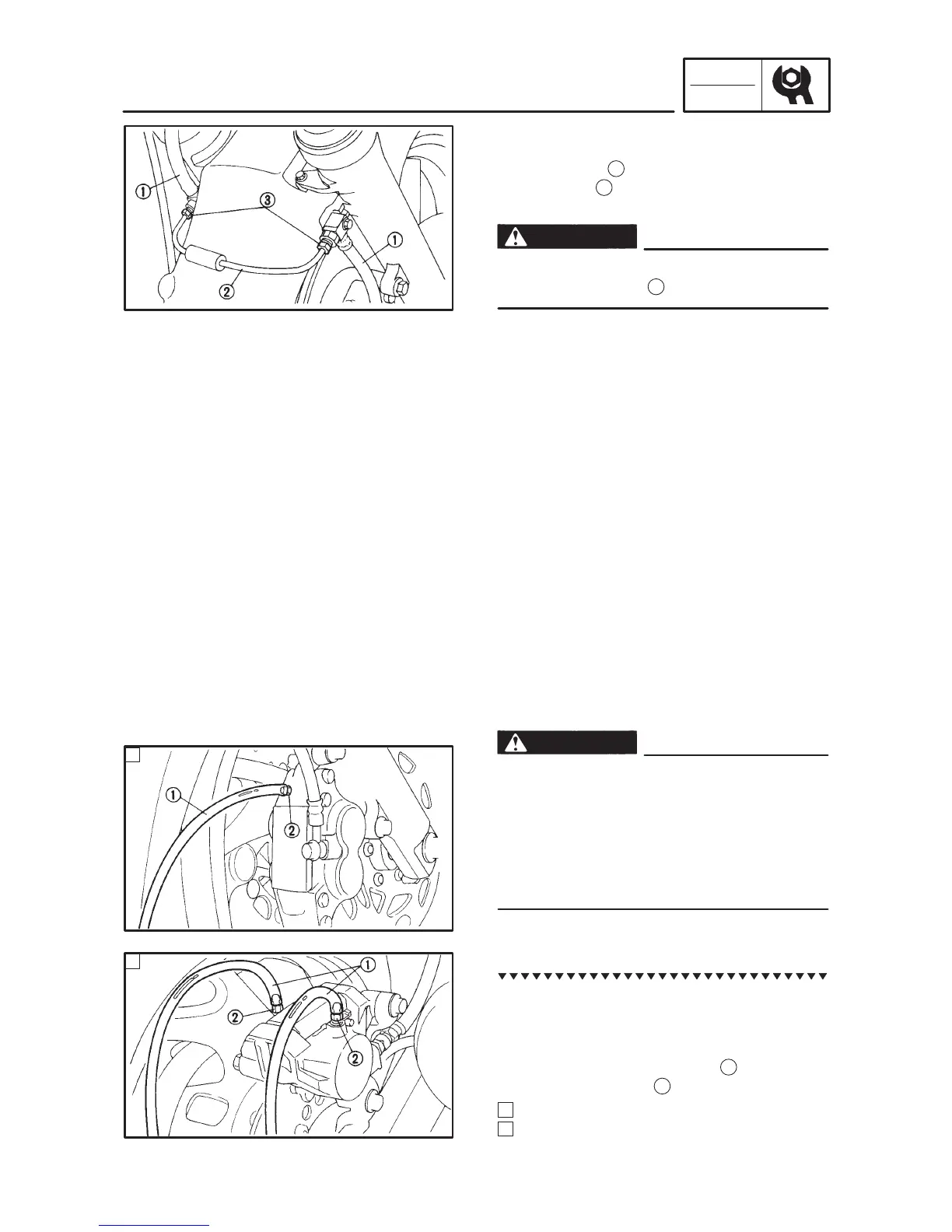

BRAKE HOSE INSPECTION/
AIR BLEEDING (HYDRAULIC BRAKE SYSTEM)
INSP
ADJ
WARNING
WARNING
BRAKE HOSE INSPECTION
1. Inspect:
 Brake hoses
1
 Brake pipe
2
Cracks/Wear/Damage  Replace.
The brake pipe must not be disassembled. Do
not loosen the bolts
3 .
2. Check:
 Brake hose clamp
Loosen  Tighten.
3. Hold the motorcycle on upright position.
4. Check:
 Brake hoses
Activate the brake lever or pedal several times.
Fluid leakage  Replace the hose.
Refer to “FRONT AND REAR BRAKE” in
CHAPTER 7.
AIR BLEEDING
(HYDRAULIC BRAKE SYSTEM)
Bleed the brake system if:
 The system has been disassembled.
 A brake hose has been loosened or removed.
 The brake fluid has been very low.
 The brake operation has been faulty.
A loss of braking performance may occur if the
brake system is not properly bled.
1. Bleed:
 Brake system
Air bleeding steps:
a. Add proper brake fluid to the reservoir.
b. Install the diaphragm. Be careful not to spill any
fluid or allow the reservoir to overflow.
c. Connect a clear plastic hose
1 tightly to the
caliper bleed screw
2.
A
Front
B
Rear

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
